Office-Elliott · process report

① One-shot authoring

model claude-fable-5 · 110 tool calls · 24m26s · cost $17.130503000000004

✏️EDIT #1

I'll start by reading Room.md and Room.py to learn the helper API, then check the reference stitches.

📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🔧 ToolSearch select:mcp__cap__render,mcp__cap__fetch_📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🎨 fetch_material blue office low-pile carpet🎨 fetch_material white suspended office ceiling tile🎨 fetch_material beech wood veneer board⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🎨 fetch_material white plaster fine speckle ceiling✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash

👁INSPECT #2

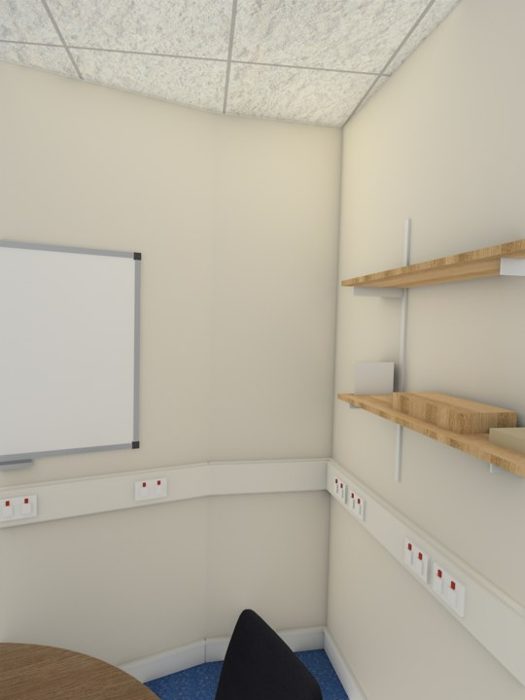

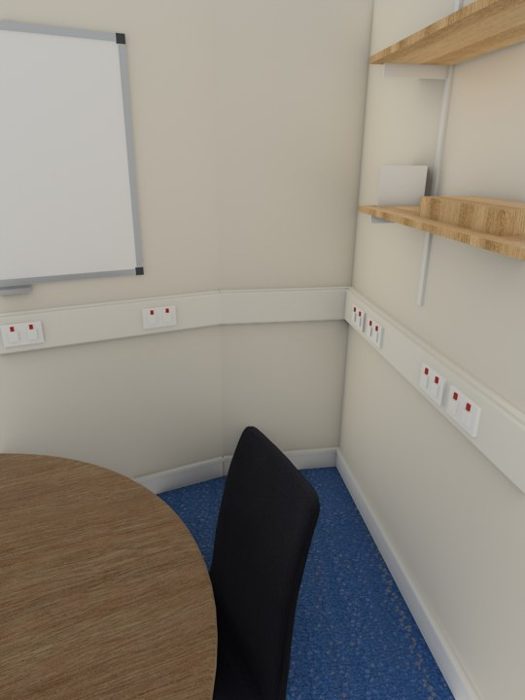

Compiles. Now render the full room to check shell structure and materials first.

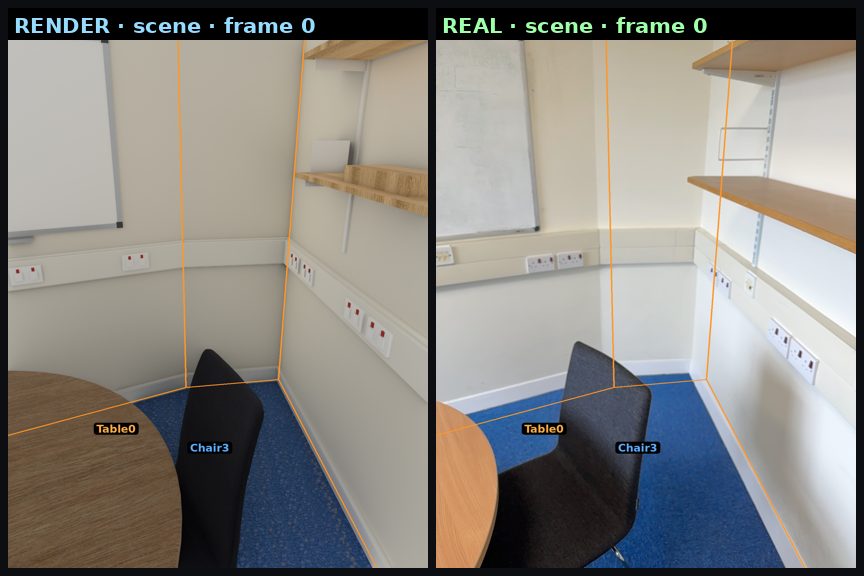

scene · scene_frame_00000

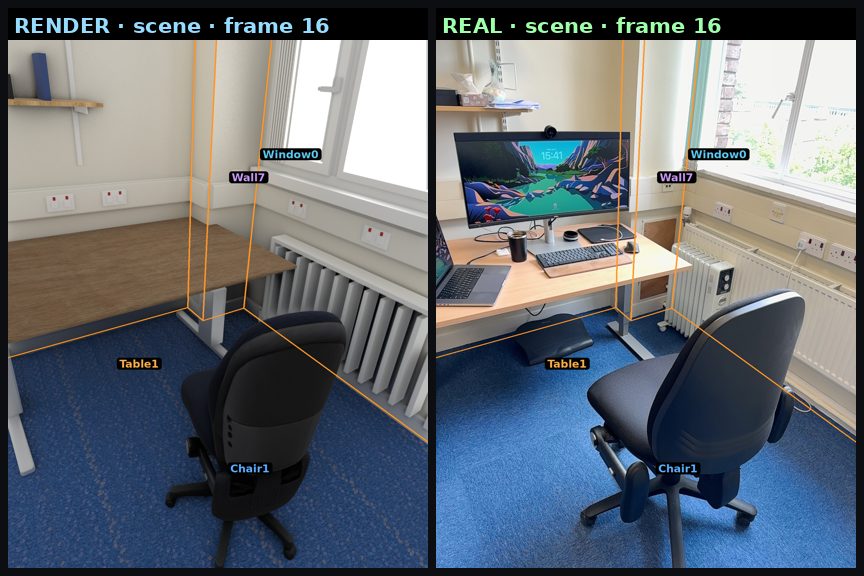

scene · scene_frame_00016

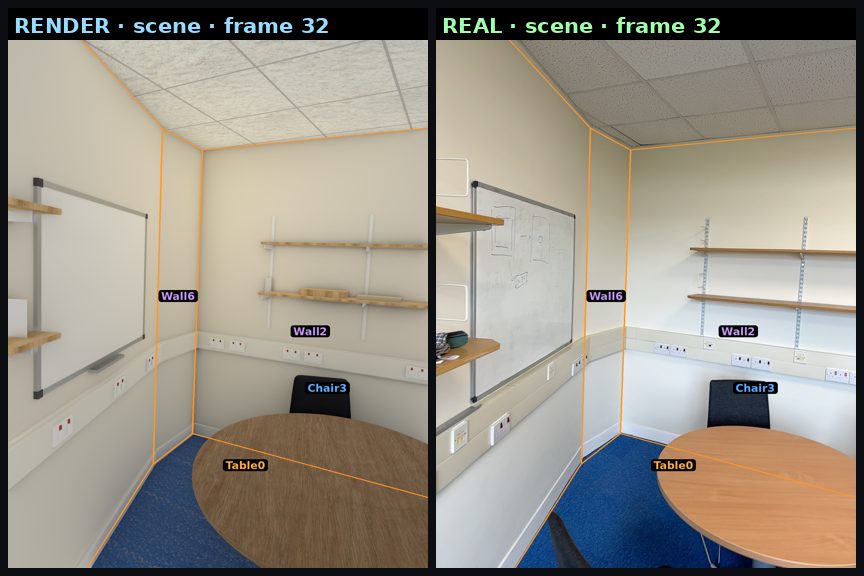

scene · scene_frame_00032

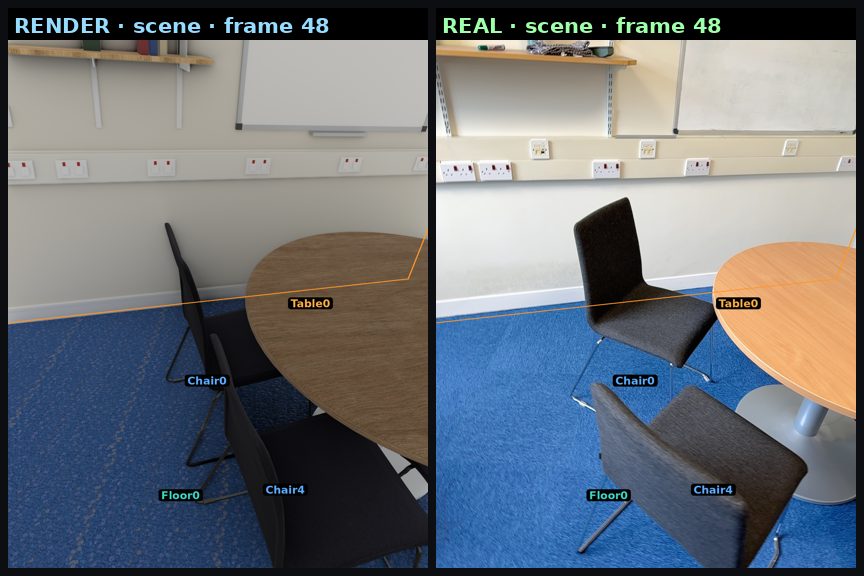

scene · scene_frame_00048

🖼 render room⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash⌘ Bash

•STEP #3

Scan is resolved against a scans root — pass just the scene name.

⌘ Bash⌘ Bash

✏️EDIT #4

NormalMap node's input is "Color", not "Normal" — fixing.

✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #5

The comparisons are tiny. Let me find the full-res ortho renders in the `_sc` dir.

⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #6

The Read display downscales these. I'll crop and enlarge matched regions from the compare images to judge silhouettes properly.

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash⌘ Bash

✏️EDIT #7

Now checking Floor and Ceiling comparisons before making the fix round.

📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

✏️EDIT #8

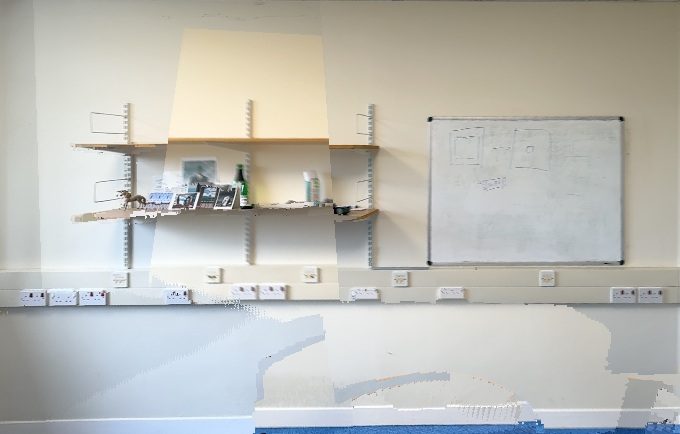

Wall1 hooks and AC land correctly; Wall2 now matches the rectified stitch. Checking Wall0, Wall5, Wall7.

📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⚖️ critic✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen✏️ Write /home/zelda/zh340/.claude/projects/-scra✏️ Edit /home/zelda/zh340/.claude/projects/-scra📄 Read /home/zelda/zh340/.claude/projects/-scra📄 Read /home/zelda/zh340/.claude/projects/-scra✏️ Edit /home/zelda/zh340/.claude/projects/-scra

•STEP #9

Done. `Room.py` in `final_results/Office-Elliott/scene_stage/_oneshot/room/` now carries the full agent-authored layer — ceiling, materials, and multi

All render-vs-real montages7 more

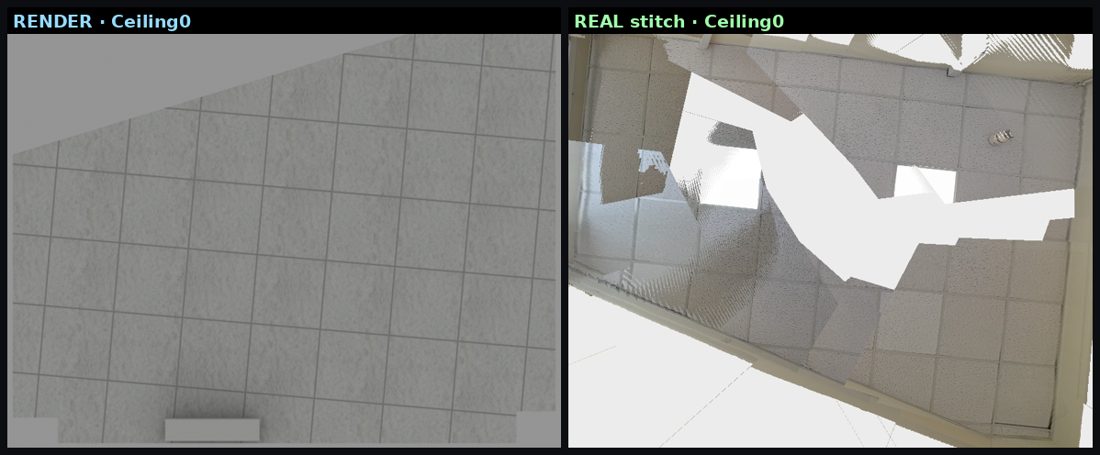

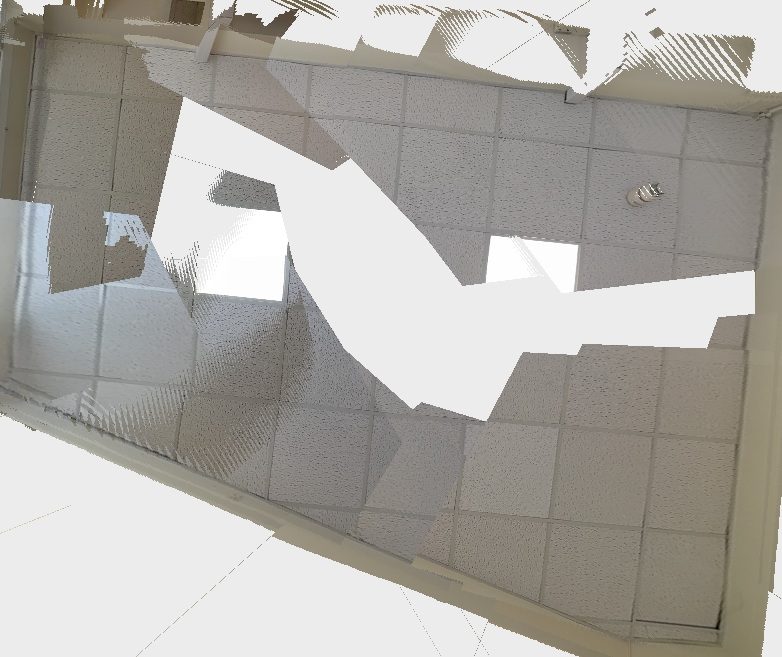

surface · Ceiling0_compare

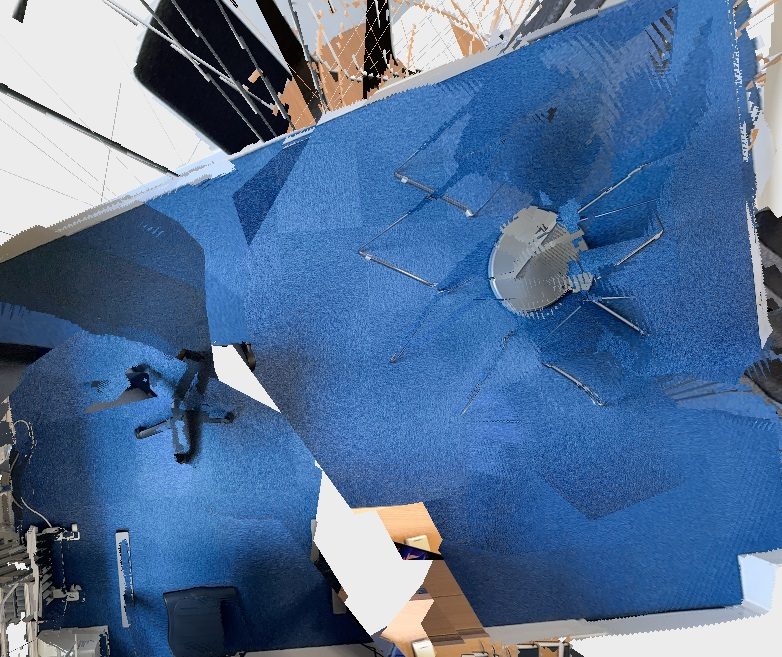

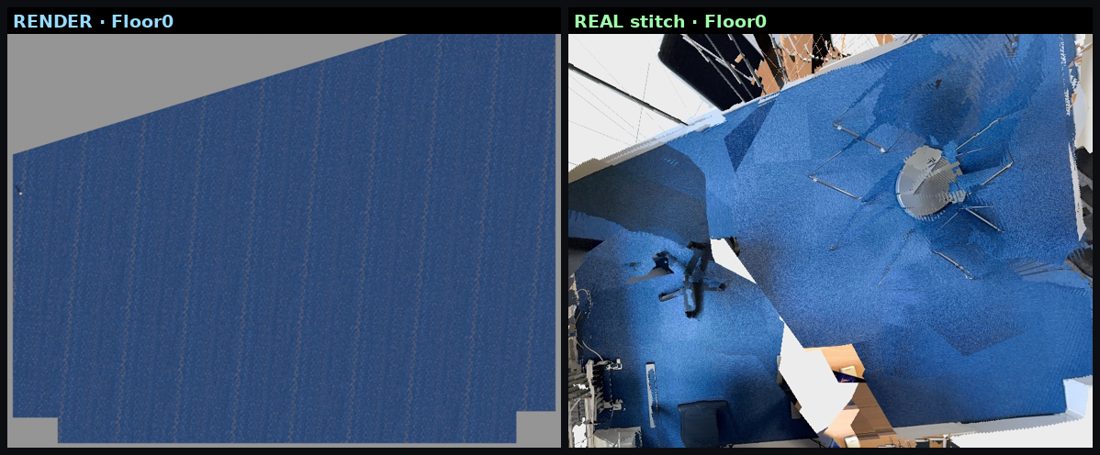

surface · Floor0_compare

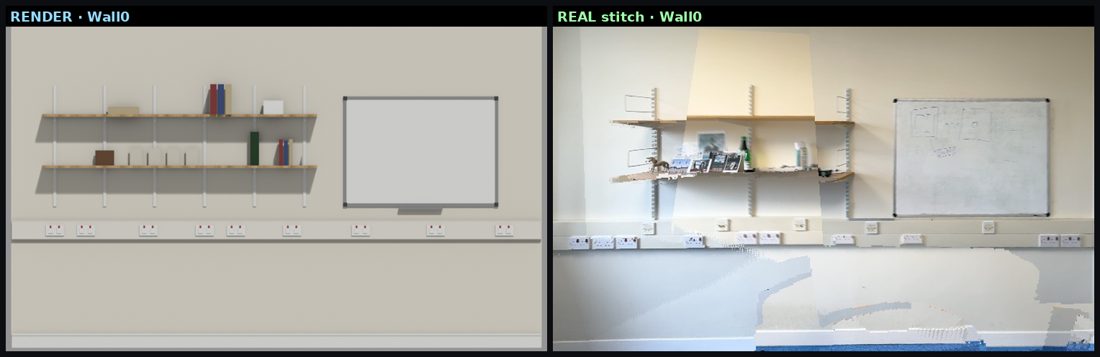

surface · Wall0_compare

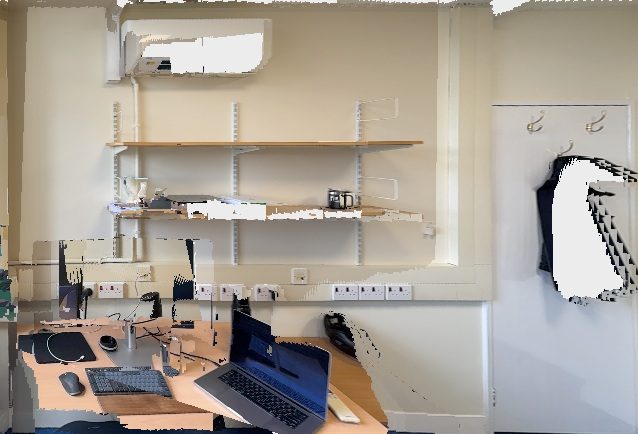

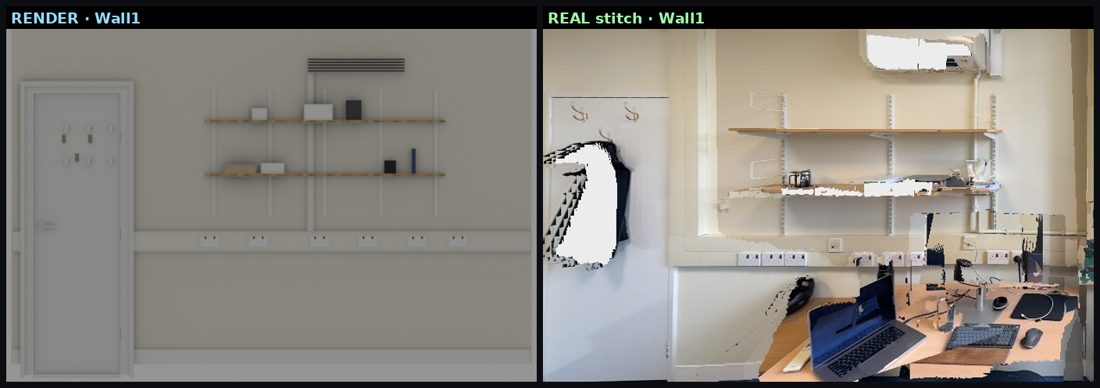

surface · Wall1_compare

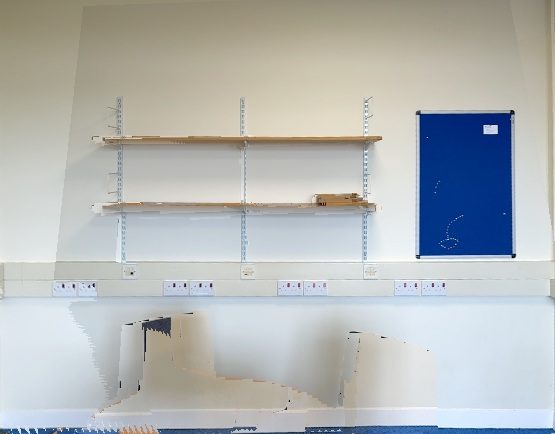

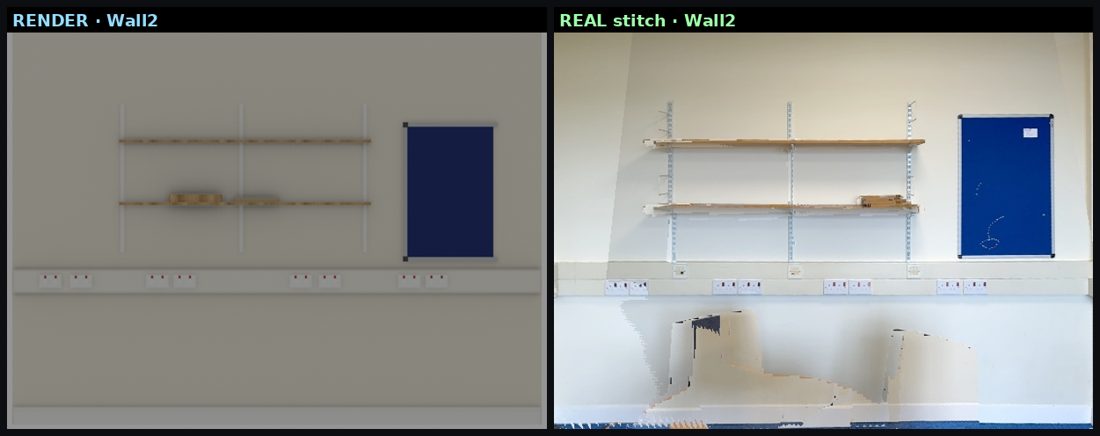

surface · Wall2_compare

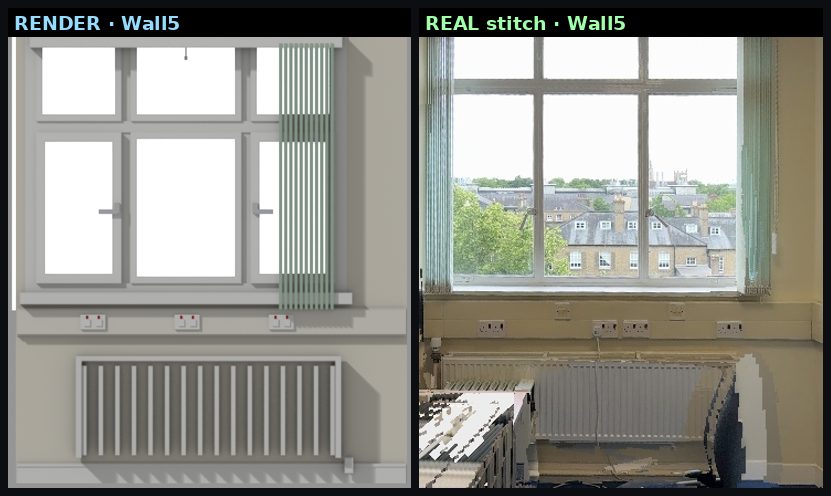

surface · Wall5_compare

surface · Wall7_compare

Authoring — model summary

Done. `Room.py` in `final_results/Office-Elliott/scene_stage/_oneshot/room/` now carries the full agent-authored layer — ceiling, materials, and multi-part grouped fixtures — and rebuilds/exports cleanly (verified by four full Blender rebuilds during render passes). ## Job 1 — shell structure + materials - **Structure**: checked all 9 walls, both openings and heights against photos/stitches — the scan is correct (door 0.5 m from Wall1's east corner, window sill 1.12 m on Wall5, ceiling 2.71 m all confirmed). No SHELL edits needed. - **Ceiling0** didn't exist — built as an n-gon from the wall-corner loop, with a white speckle PBR texture plus a procedural 0.6 m seam grid (suspended-tile look, verified vs the ceiling stitch). - **Floor0**: Poly Haven carpet recoloured to the office blue (`floor_carpet`), box-projected (no UVs needed — meshes carry metric coords). Verified vs floor stitch and perspective frames. - **Walls 0–8**: warm cream paint; separate materials for trunking, skirting, aluminium, white metal, etc. ## Job 2 — wall fixtures (all grouped via `group_fixture`, each hides as one unit) | Wall | Group | Parts | |---|---|---| | Wall0 | `Shelf0` | 6 twin-slot standards + 12 bracket arms + 2 beech boards (PBR wood) + 15 items (folders, postcards, bottle, books, boxes, toy, wire bookends) | | Wall0 | `Whiteboard0` | 4 alu frame bars + recessed gloss face + pen tray + tray lip + 4 dark corner caps | | Wall0 | `Sockets0` | 9 double sockets × (faceplate + 2 outlet bumps + 2 red rockers) | | Wall1 | `AC0` | body + proud front panel + 5-slat louvre loop + conduit drop to the dado band | | Wall1 | `CoatHooks0` | 2 rows × 4 hooks on the door leaf (backplate + peg + upturned tip each) | | Wall1 | `Shelf1` | 5 standards + brackets + 2 boards + 8 items (mug, boxes, folders, bookend) | | Wall1 | `Sockets1` | 6 double sockets | | Wall2 | `Pinboard0` | thick alu frame (4 bars) + recessed blue felt face + 4 corner caps | | Wall2 | `Shelf2` | 3 standards + brackets + 2 boards + wood-offcut stack + bookends | | Wall2 | `Sockets2` | 8 double sockets | | Wall5 | `Blinds0` | headrail + 11 mint vertical slats stacked at the window's north edge | | Wall5 | `Radiator0` | 16-fin vertical loop + top grille + 2 end caps + 2 valves + drop pipes | | Wall5 | `Sockets5` | 3 double sockets | | Wall7 | `Switch0` | faceplate + raised rocker | | all walls | `Trunking0–8`, `Skirting0–8` | channel base + proud lid per free span — both break automatically at the Wall1 door | **Rende ✓ [3/6] one-shot authoring · 24m27s ⊘ [4/6] per-object refinement — skipped (SKIP_REFINE=1) ⊘ [5/6] per-wall fixture refinement — skipped (REFINE_WALLS=0) ▶ [6/6] export three.js viewer (0 stages left) === RoomScene.build (blank) === shell <- SHELL(compact): 9 walls, 2 openings, 7 objects（无 usdz） thickened 9 walls outward to ~0.1 m cut 2/2 openings {'Door0': 'Wall1', 'Window0': 'Wall5'} 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node Cylinder 11:58:32 | INFO: Blender create Mesh node Table_Base 11:58:32 | INFO: glTF import finished in 0.01s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node Cube 11:58:32 | INFO: Blender create Mesh node Cube.004 11:58:32 | INFO: glTF import finished in 0.01s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node Cube 11:58:32 | INFO: Blender create Mesh node Cube.004 11:58:32 | INFO: Blender create Mesh node Cube.007 11:58:32 | INFO: glTF import finished in 0.00s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node Cube 11:58:32 | INFO: Blender create Mesh node Cube.044 11:58:32 | INFO: Blender create Mesh node Cube.030 11:58:32 | INFO: Blender create Mesh node Cube.037 11:58:32 | INFO: Blender create Mesh node Cube.012 11:58:32 | INFO: glTF import finished in 0.00s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node geometry_0 11:58:32 | INFO: glTF import finished in 0.01s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node geometry_0 11:58:32 | INFO: glTF import finished in 0.01s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node geometry_0 11:58:32 | INFO: glTF import finished in 0.01s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node geometry_0 11:58:32 | INFO: glTF import finished in 0.01s 11:58:32 | INFO: Data are loaded, start creating Blender stuff 11:58:32 | INFO: Blender create Mesh node geometry_0 11:58:32 | INFO: glTF import finished in 0.01s placed 9 asset instances built 0 capture cameras indexed 19 objects, 0 cameras floor-grounded 0 visible piece(s) harness: ceiling + materials + fixtures built === ROOM SCENE (blank) === ac_unit : AC0 blinds : Blinds0 ceiling : Ceiling0 chair : Chair0, Chair1, Chair2, Chair3, Chair4 coat_hooks: CoatHooks0 door : Door0 floor : Floor0 noticeboard: Pinboard0 radiator : Radiator0 shelf : Shelf0, Shelf1, Shelf2 skirting : Skirting0, Skirting1, Skirting2, Skirting3, Skirting4, Skirting5, Skirting6, Skirting7, Skirting8 socket : Sockets0, Sockets1, Sockets2, Sockets5 switch : Switch0 table : Table0, Table1 trunking : Trunking0, Trunking1, Trunking2, Trunking3, Trunking4, Trunking5, Trunking6, Trunking7, Trunking8 wall : Wall0, Wall1, Wall2, Wall3, Wall4, Wall5, Wall6, Wall7, Wall8 whiteboard: Whiteboard0 window : Window0 placeable surfaces (top z): Shelf0 z=0.514 center=[-2.6816, 1.0748, 0.0249] Shelf1 z=0.505 center=[-1.8131, -1.5114, 0.0204] Shelf2 z=0.505 center=[0.6129, 0.7982, 0.0204] Table0 z=-0.812 center=[-0.7013, 0.6451, -1.2035] Table1 z=-0.849 center=[-2.687, -1.2179, -1.2218] cameras: none INFO Draco mesh compression is available, use library at /scratch2/zh340/blender-4.5.1-linux-x64/4.5/scripts/addons_core/io_scene_gltf2/libextern_draco.so 11:58:32 | INFO: Starting glTF 2.0 export 11:58:32 | INFO: Extracting primitive: Floor0 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall0 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall1 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall2 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall3 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall4 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall5 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall6 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall7 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Wall8 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Ceiling0 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Table_Base 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Cylinder 11:58:32 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:32 | INFO: Primitives created: 1 11:58:32 | INFO: Extracting primitive: Cube 11:58:32 | INFO: Primitives created: 2 11:58:32 | INFO: Extracting primitive: Cube.004 11:58:32 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:32 | INFO: Primitives created: 2 11:58:32 | INFO: Extracting primitive: geometry_0 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: geometry_0.001 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: geometry_0.002 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: geometry_0.003 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: geometry_0.004 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Cube.001 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Cube.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Cube.007 11:58:33 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 11:58:33 | INFO: Primitives created: 3 11:58:33 | INFO: Extracting primitive: Plane 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Cube.003 11:58:33 | INFO: Primitives created: 3 11:58:33 | INFO: Extracting primitive: Cube.044 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Cube.030 11:58:33 | INFO: Primitives created: 3 11:58:33 | INFO: Extracting primitive: Cube.037 11:58:33 | INFO: Primitives created: 3 11:58:33 | INFO: Extracting primitive: Cube.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall0_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall0_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall0_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall0_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_trunk_base.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_trunk_lid.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_skirt.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall1_skirt_lip.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall2_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall2_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall2_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall2_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall3_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall3_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall3_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall3_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall4_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall4_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall4_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall4_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall5_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall5_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall5_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall5_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall6_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall6_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall6_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall6_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall7_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall7_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall7_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall7_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall8_trunk_base 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall8_trunk_lid 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall8_skirt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall8_skirt_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: board 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: board.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.014 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: face 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_b 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_s 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_s.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_t 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: pen_tray 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: tray_lip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.014 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.015 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.016 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.017 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.014 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.015 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.016 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.017 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: body 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: conduit 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: front_panel 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: louvre 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: louvre.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: louvre.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: louvre.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: louvre.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_peg.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_plate.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: hook_tip.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: board.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: board.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.014 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.015 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.016 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.017 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.018 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.019 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.020 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.021 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.015 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.016 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.017 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.018 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.019 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.020 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.021 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.022 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.018 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.019 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.020 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.021 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.022 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.023 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.024 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.025 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.026 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.027 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.028 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.029 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.014 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.018 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.019 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.020 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.021 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.022 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.023 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.024 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.025 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.026 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.027 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.028 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.029 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: corner_cap.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: felt 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_b.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_s.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_s.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: frame_t.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: board.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: board.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.022 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.023 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.024 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.025 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.026 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: bracket.027 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.023 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.024 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.025 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: item.026 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: std.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.030 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.031 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.032 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.033 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.034 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.035 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.036 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.037 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.038 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.039 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.040 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.041 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.042 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.043 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.044 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.045 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.015 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.016 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.017 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.018 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.019 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.020 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.021 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.022 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.030 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.031 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.032 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.033 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.034 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.035 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.036 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.037 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.038 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.039 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.040 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.041 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.042 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.043 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.044 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.045 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: headrail 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: slat.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: end_cap 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: end_cap.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.002 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.003 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.004 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.005 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.006 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.007 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.008 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.009 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.010 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.011 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.012 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.013 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.014 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: fin.015 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: grille 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: pipe 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: pipe.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: valve 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: valve.001 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.046 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.047 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.048 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.049 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.050 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_outlet.051 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.023 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.024 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_plate.025 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.046 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.047 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.048 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.049 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.050 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: sock_rocker.051 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall7_sw_plate 11:58:33 | INFO: Primitives created: 1 11:58:33 | INFO: Extracting primitive: Wall7_sw_rocker 11:58:33 | INFO: Primitives created: 1 11:58:34 | INFO: Finished glTF 2.0 export in 1.493981122970581 s EXPORTED -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Office-Elliott/scene_stage/_oneshot/room_preview/Room.glb (18996 KB) LAYOUT -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Office-Elliott/scene_stage/_oneshot/room_preview/room_layout.json (52 objects, 0 cameras) Info: Saved as "Room.blend" BLEND -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Office-Elliott/scene_stage/_oneshot/room_preview/Room.blend (27687 KB) COPIED -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Office-Elliott/scene_stage/_oneshot/room_preview/build_room.py DONE Blender 4.5.1 LTS (hash b0a72b245dcf built 2025-07-29 06:24:35) Blender quit === 物化 6 个物体 === tex Table0: 重建 3 张贴图 regen Table0 (object.py) tex Table1: 重建 3 张贴图 regen Table1 (object.py) tex Wall1_Door_0: 重建 1 张贴图 regen Wall1_Door_0 (object.py) regen Wall5_Window_0 (object.py) wrap ChairCluster0 (object.py) wrap ChairCluster1 (object.py) === 装配（无 frames（仅几何），外壳来自 Room.py 的 SHELL）-> Room.glb + Room.blend === 物化 6/6 个物体 Room_preview -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Office-Elliott/scene_stage/_oneshot/room_preview viewer → /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Office-Elliott/Office-Elliott.html (12.7 MB, self-contained) final_results → /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Office-Elliott ✓ [6/6] export three.js viewer · 8s ╭────────── Office-Elliott ──────────╮ ✓ init (skipped) 0s ✓ surface stitches 27s ✓ one-shot authoring 24m27s ✓ obj refine (skipped) 0s ✓ wall refine (skipped) 0s ✓ export three.js viewer 8s total 25m02s viewer /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Office-Elliott/Office-Elliott.html room /scratch2/code/LiteReality_to_share/agentic_litereality/output/Office-Elliott/scene_stage/_oneshot/room/Room.py ╰────────────────────────────────────────────────╯

② Code changes

Room.py diffseed (blank shell) → authored

+529 −0 lines · seed → authored Room.py

@@ -1159,8 +1159,537 @@

# ============================================================================

+# HARNESS LAYER (agent-authored): ceiling + surface materials + wall fixtures

+# ============================================================================

+# Everything below reads SHELL (defined at the bottom) and runs AFTER the blank

+# build, so local mesh coords == world metres. All fixture boxes are metric

+# meshes (size baked into vertices) placed with rotation+translation only, so

+# Object-space texture coords stay metric for box-projected PBR textures.

+MATERIALS_DIR = os.path.join(HERE, "materials")

+def _flat(name, srgb, rough=0.5, metal=0.0):

+ mat = bpy.data.materials.get(name)

+ if mat is not None:

+ return mat

+ mat = bpy.data.materials.new(name)

+ mat.use_nodes = True

+ nt = mat.node_tree

+ nt.nodes.clear()

+ out = nt.nodes.new("ShaderNodeOutputMaterial")

+ b = nt.nodes.new("ShaderNodeBsdfPrincipled")

+ nt.links.new(b.outputs["BSDF"], out.inputs["Surface"])

+ b.inputs["Base Color"].default_value = (*srgb_to_linear(srgb), 1.0)

+ b.inputs["Roughness"].default_value = rough

+ if "Metallic" in b.inputs:

+ b.inputs["Metallic"].default_value = metal

+ return mat

+def _pbr_mat(name, base, scale=1.0, rough_fallback=0.8, normal_strength=1.0):

+ """PBR from materials/<base>_{diff,rough,normal}.jpg, BOX-projected in

+ Object space (meshes here carry metric local coords, so scale = tiles/m)."""

+ mat = bpy.data.materials.get(name)

+ if mat is not None:

+ return mat

+ mat = bpy.data.materials.new(name)

+ mat.use_nodes = True

+ nt = mat.node_tree

+ nt.nodes.clear()

+ out = nt.nodes.new("ShaderNodeOutputMaterial")

+ b = nt.nodes.new("ShaderNodeBsdfPrincipled")

+ nt.links.new(b.outputs["BSDF"], out.inputs["Surface"])

+ b.inputs["Roughness"].default_value = rough_fallback

+ tc = nt.nodes.new("ShaderNodeTexCoord")

+ mp = nt.nodes.new("ShaderNodeMapping")

+ mp.inputs["Scale"].default_value = (scale, scale, scale)

+ nt.links.new(tc.outputs["Object"], mp.inputs["Vector"])

+ def img(suffix, noncolor):

+ p = os.path.join(MATERIALS_DIR, f"{base}_{suffix}.jpg")

+ if not os.path.exists(p):

+ return None

+ node = nt.nodes.new("ShaderNodeTexImage")

+ node.image = bpy.data.images.load(p, check_existing=True)

+ node.projection = "BOX"

+ node.projection_blend = 0.2

+ if noncolor:

+ node.image.colorspace_settings.name = "Non-Color"

+ nt.links.new(mp.outputs["Vector"], node.inputs["Vector"])

+ return node

+ d = img("diff", False)

+ if d:

+ nt.links.new(d.outputs["Color"], b.inputs["Base Color"])

+ r = img("rough", True)

+ if r:

+ nt.links.new(r.outputs["Color"], b.inputs["Roughness"])

+ nm = img("normal", True)

+ if nm:

+ nmap = nt.nodes.new("ShaderNodeNormalMap")

+ nmap.inputs["Strength"].default_value = normal_strength

+ nt.links.new(nm.outputs["Color"], nmap.inputs["Color"])

+ nt.links.new(nmap.outputs["Normal"], b.inputs["Normal"])

+ return mat

+def _mix_rgb(nt):

+ """(node, fac_in, colA_in, colB_in, col_out) across Blender 3.x/4.x."""

+ try:

+ n = nt.nodes.new("ShaderNodeMix")

+ n.data_type = "RGBA"

+ return n, n.inputs["Factor"], n.inputs[6], n.inputs[7], n.outputs[2]

+ except Exception:

+ n = nt.nodes.new("ShaderNodeMixRGB")

+ return n, n.inputs["Fac"], n.inputs["Color1"], n.inputs["Color2"], n.outputs["Color"]

+def _ceiling_mat():

+ """White speckled tile + a dark seam line every 0.6 m (suspended-grid look)."""

+ name = "Ceiling_Tiles"

+ if bpy.data.materials.get(name):

+ return bpy.data.materials[name]

+ mat = _pbr_mat(name, "ceiling_tile", scale=1.2, rough_fallback=0.9)

+ nt = mat.node_tree

+ b = next(n for n in nt.nodes if n.type == "BSDF_PRINCIPLED")

+ tc = next(n for n in nt.nodes if n.type == "TEX_COORD")

+ sep = nt.nodes.new("ShaderNodeSeparateXYZ")

+ nt.links.new(tc.outputs["Object"], sep.inputs["Vector"])

+ def seam(axis_out):

+ add = nt.nodes.new("ShaderNodeMath")

+ add.operation = "ADD" # shift positive: MODULO is fmod (sign-keeping)

+ add.inputs[1].default_value = 30.0

+ nt.links.new(axis_out, add.inputs[0])

+ mod = nt.nodes.new("ShaderNodeMath")

+ mod.operation = "MODULO"

+ mod.inputs[1].default_value = 0.6

+ nt.links.new(add.outputs[0], mod.inputs[0])

+ lt = nt.nodes.new("ShaderNodeMath")

+ lt.operation = "LESS_THAN"

+ lt.inputs[1].default_value = 0.014

+ nt.links.new(mod.outputs[0], lt.inputs[0])

+ return lt

+ mx = nt.nodes.new("ShaderNodeMath")

+ mx.operation = "MAXIMUM"

+ nt.links.new(seam(sep.outputs["X"]).outputs[0], mx.inputs[0])

+ nt.links.new(seam(sep.outputs["Y"]).outputs[0], mx.inputs[1])

+ mixn, fac, colA, colB, colout = _mix_rgb(nt)

+ colB.default_value = (0.52, 0.52, 0.51, 1.0)

+ diff_link = next(

+ (l for l in nt.links if l.to_node == b and l.to_socket.name == "Base Color"), None

+ )

+ if diff_link is not None:

+ nt.links.new(diff_link.from_socket, colA)

+ else:

+ colA.default_value = (0.92, 0.92, 0.90, 1.0)

+ nt.links.new(mx.outputs[0], fac)

+ nt.links.new(colout, b.inputs["Base Color"])

+ return mat

+def _harness_mats():

+ return {

+ "paint": _flat("Wall_Paint", (0.928, 0.908, 0.856), rough=0.92),

+ "trunk": _flat("Trunking_Cream", (0.94, 0.93, 0.89), rough=0.55),

+ "skirt": _flat("Skirting_White", (0.95, 0.95, 0.94), rough=0.65),

+ "white": _flat("White_Plastic", (0.97, 0.97, 0.96), rough=0.45),

+ "alu": _flat("Aluminium", (0.78, 0.79, 0.80), rough=0.35, metal=1.0),

+ "wmetal": _flat("White_Metal", (0.95, 0.95, 0.94), rough=0.4),

+ "face": _flat("Whiteboard_Face", (0.965, 0.965, 0.955), rough=0.2),

+ "pin": _flat("Pinboard_Blue", (0.10, 0.17, 0.45), rough=0.95),

+ "dark": _flat("Dark_Grey", (0.25, 0.25, 0.26), rough=0.6),

+ "red": _flat("Rocker_Red", (0.72, 0.10, 0.08), rough=0.5),

+ "wood": _pbr_mat("Shelf_Wood", "shelf_wood", scale=2.0, rough_fallback=0.5),

+ "green": _flat("Bottle_Green", (0.10, 0.24, 0.12), rough=0.15),

+ "black": _flat("Matte_Black", (0.05, 0.05, 0.05), rough=0.6),

+ "book_r": _flat("Book_Red", (0.55, 0.20, 0.20), rough=0.8),

+ "book_b": _flat("Book_Blue", (0.22, 0.30, 0.50), rough=0.8),

+ "book_t": _flat("Book_Tan", (0.78, 0.72, 0.58), rough=0.8),

+ "brown": _flat("Toy_Brown", (0.42, 0.28, 0.16), rough=0.7),

+ "blind": _flat("Blind_Mint", (0.72, 0.82, 0.73), rough=0.85),

+ "card": _flat("Postcard", (0.88, 0.86, 0.80), rough=0.85),

+ }

+# ---------------------------------------------------------------- wall frames

+def _walls_centroid():

+ pts = []

+ for w in SHELL["walls"].values():

+ pts.append(Vector(((w["start"][0] + w["end"][0]) / 2, (w["start"][1] + w["end"][1]) / 2, 0)))

+ return sum(pts, Vector()) / len(pts)

+def _wall_frame(wall):

+ """(start, along-dir, INTERIOR normal, length) of a SHELL wall, on the floor plane."""

+ w = SHELL["walls"][wall]

+ s = Vector((w["start"][0], w["start"][1], 0.0))

+ e = Vector((w["end"][0], w["end"][1], 0.0))

+ d = e - s

+ L = d.length

+ d = d / L

+ n = Vector((-d.y, d.x, 0.0))

+ if n.dot(_walls_centroid() - (s + e) / 2) < 0:

+ n = -n

+ return s, d, n, L

+def _free_spans(wall, margin=0.03, z_below=0.95):

+ """Along-wall [(u0,u1)] NOT covered by a floor-reaching opening (door). Horizontal

+ runs (trunking/skirting) tile these spans so they break cleanly at the door."""

+ w = SHELL["walls"][wall]

+ L = math.hypot(w["end"][0] - w["start"][0], w["end"][1] - w["start"][1])

+ blocks = sorted(

+ (op["offset"] - op["width"] / 2 - margin, op["offset"] + op["width"] / 2 + margin)

+ for op in SHELL["openings"].values()

+ if op["wall"] == wall and op["sill"] < z_below

+ )

+ spans, cur = [], 0.005

+ for b0, b1 in blocks:

+ if b0 > cur + 0.02:

+ spans.append((cur, b0))

+ cur = max(cur, b1)

+ if cur < L - 0.02:

+ spans.append((cur, L - 0.005))

+ return spans

+def _part(name, sx, sy, sz, mat):

+ """A metric box mesh (size baked into vertices), unlinked transform-wise."""

+ me = _unit_cube_mesh(name)

+ for v in me.vertices:

+ v.co.x *= sx

+ v.co.y *= sy

+ v.co.z *= sz

+ ob = bpy.data.objects.new(name, me)

+ if mat is not None:

+ ob.data.materials.append(mat)

+ bpy.context.scene.collection.objects.link(ob)

+ return ob

+def _wall_box(wall, u, z, length, height, depth, mat, out=0.0, name="part"):

+ """Box on a wall: u = centre along wall from start (m), z = centre height above

+ floor, out = gap between wall face and the box's BACK face (box grows inward)."""

+ s, d, n, L = _wall_frame(wall)

+ ob = _part(name, length, depth, height, mat)

+ pos = s + d * u + n * (out + depth / 2.0)

+ ob.matrix_world = Matrix(

+ (

+ (d.x, n.x, 0.0, pos.x),

+ (d.y, n.y, 0.0, pos.y),

+ (0.0, 0.0, 1.0, SHELL["floor_z"] + z),

+ (0.0, 0.0, 0.0, 1.0),

+ )

+ return ob

+def group_fixture(name, category, parts):

+ """Bundle a fixture's parts under ONE named empty handle (its own collection),

+ so it selects/hides/toggles as a unit exactly like Table0/Chair0."""

+ coll = get_or_make_collection(name)

+ handle = bpy.data.objects.new(name, None)

+ handle.empty_display_size = 0.1

+ handle["room_id"] = name

+ handle["category"] = category

+ coll.objects.link(handle)

+ for p in parts:

+ if p is None:

+ continue

+ p.parent = handle

+ p.matrix_parent_inverse = handle.matrix_world.inverted()

+ move_to_collection(p, coll)

+ return handle

+# ---------------------------------------------------------------- ceiling

+# ordered corner loop: Wall0->6->2->3->4->1->8->7->5 (each wall's start point)

+_CEIL_LOOP = [

+ (-3.9822, 0.6909), (-0.0386, 2.2731), (0.607, 2.3286), (0.904, -1.1267),

+ (0.5653, -1.1558), (0.589, -1.4319), (-3.3789, -1.7729), (-3.3979, -1.5515),

+ (-3.7866, -1.5849),

+def build_ceiling():

+ if bpy.data.objects.get("Ceiling0") is not None:

+ return

+ cz = SHELL["ceiling_z"]

+ me = bpy.data.meshes.new("Ceiling0")

+ me.from_pydata([(x, y, cz) for x, y in _CEIL_LOOP], [], [tuple(range(len(_CEIL_LOOP)))])

+ me.update()

+ ob = bpy.data.objects.new("Ceiling0", me)

+ bpy.context.scene.collection.objects.link(ob)

+ move_to_collection(ob, get_or_make_collection(COLL_SHELL))

+ ob.data.materials.append(_ceiling_mat())

+def apply_surface_materials(M):

+ for wn in SHELL["walls"]:

+ o = bpy.data.objects.get(wn)

+ if o is not None:

+ o.data.materials.clear()

+ o.data.materials.append(M["paint"])

+ fl = bpy.data.objects.get("Floor0")

+ if fl is not None:

+ fl.data.materials.clear()

+ fl.data.materials.append(_pbr_mat("Floor_Carpet", "floor_carpet", scale=1.0))

+# ---------------------------------------------------------------- fixture kit

+BAND_Z0, BAND_H = 0.86, 0.16 # dado trunking band (bottom z, height)

+SOCK_Z = BAND_Z0 + BAND_H / 2.0 # sockets sit mid-band

+SHELF_Z1, SHELF_Z2 = 1.45, 1.86 # board centre heights (twin-slot system)

+UPRIGHT_Z0, UPRIGHT_Z1 = 1.13, 2.10 # twin-slot standards vertical extent

+# NOTE part names below are Wall<N>_-prefixed on purpose: the surface-ortho renderer

+# assigns un-prefixed fixture meshes to walls by min signed distance, which lets a long

+# neighbour wall "steal" fixtures on sliver walls (Wall3/4/6/7/8) and hide them from

+# their own montage. Wall<N>_* meshes always render with wall N. Group names stay

+# Trunking0/Skirting0/... as required.

+def _trunking(wall, idx, M):

+ parts = []

+ for u0, u1 in _free_spans(wall):

+ um, ln = (u0 + u1) / 2.0, u1 - u0

+ parts.append(_wall_box(wall, um, BAND_Z0 + BAND_H / 2, ln, BAND_H, 0.025,

+ M["trunk"], name=f"{wall}_trunk_base"))

+ parts.append(_wall_box(wall, um, BAND_Z0 + BAND_H / 2, ln, BAND_H - 0.018, 0.016,

+ M["trunk"], out=0.025, name=f"{wall}_trunk_lid"))

+ if parts:

+ group_fixture(f"Trunking{idx}", "trunking", parts)

+def _skirting(wall, idx, M):

+ parts = []

+ for u0, u1 in _free_spans(wall):

+ um, ln = (u0 + u1) / 2.0, u1 - u0

+ parts.append(_wall_box(wall, um, 0.0485, ln, 0.097, 0.018, M["skirt"],

+ name=f"{wall}_skirt"))

+ parts.append(_wall_box(wall, um, 0.106, ln, 0.018, 0.024, M["skirt"],

+ name=f"{wall}_skirt_lip"))

+ if parts:

+ group_fixture(f"Skirting{idx}", "skirting", parts)

+def _double_socket(wall, u, M, z=SOCK_Z, out=0.041):

+ """UK double socket ON the trunking lid: faceplate + 2 outlet bumps + 2 red rockers."""

+ p = [_wall_box(wall, u, z, 0.146, 0.086, 0.012, M["white"], out=out, name="sock_plate")]

+ for du in (-0.034, 0.034):

+ p.append(_wall_box(wall, u + du, z - 0.004, 0.036, 0.040, 0.007, M["white"],

+ out=out + 0.012, name="sock_outlet"))

+ p.append(_wall_box(wall, u + du, z + 0.028, 0.013, 0.018, 0.005, M["red"],

+ out=out + 0.012, name="sock_rocker"))

+ return p

+def _sockets(wall, idx, us, M):

+ parts = []

+ for u in us:

+ parts += _double_socket(wall, u, M)

+ group_fixture(f"Sockets{idx}", "socket", parts)

+def _shelf_unit(name, wall, uprights, u0, u1, M, items=()):

+ """Twin-slot shelving: slotted standards + brackets per shelf + wood boards +

+ wire bookends + items. items = (u, w, d, h, matkey, board) with board in {1,2}."""

+ parts = []

+ uh = UPRIGHT_Z1 - UPRIGHT_Z0

+ for u in uprights: # slotted standards (white metal)

+ parts.append(_wall_box(wall, u, UPRIGHT_Z0 + uh / 2, 0.025, uh, 0.012,

+ M["wmetal"], name="std"))

+ for bz in (SHELF_Z1, SHELF_Z2):

+ for u in uprights: # bracket arms under each board

+ parts.append(_wall_box(wall, u, bz - 0.026, 0.006, 0.034, 0.21,

+ M["wmetal"], name="bracket"))

+ parts.append(_wall_box(wall, (u0 + u1) / 2, bz, u1 - u0, 0.018, 0.24,

+ M["wood"], out=0.008, name="board"))

+ for (u, w, d, h, mk, board) in items:

+ ztop = (SHELF_Z1 if board == 1 else SHELF_Z2) + 0.009

+ parts.append(_wall_box(wall, u, ztop + h / 2, w, h, d, M[mk],

+ out=0.05, name="item"))

+ group_fixture(name, "shelf", parts)

+def _whiteboard(name, wall, uc, zc, W, H, M):

+ parts = []

+ parts.append(_wall_box(wall, uc, zc + H / 2 - 0.0125, W, 0.025, 0.018, M["alu"], name="frame_t"))

+ parts.append(_wall_box(wall, uc, zc - H / 2 + 0.0125, W, 0.025, 0.018, M["alu"], name="frame_b"))

+ for du in (-(W / 2 - 0.0125), W / 2 - 0.0125):

+ parts.append(_wall_box(wall, uc + du, zc, 0.025, H - 0.05, 0.018, M["alu"], name="frame_s"))

+ parts.append(_wall_box(wall, uc, zc, W - 0.05, H - 0.05, 0.010, M["face"],

+ out=0.004, name="face"))

+ parts.append(_wall_box(wall, uc, zc - H / 2 - 0.012, 0.35, 0.014, 0.055, M["alu"],

+ name="pen_tray"))

+ parts.append(_wall_box(wall, uc, zc - H / 2 - 0.017, 0.35, 0.012, 0.006, M["alu"],

+ out=0.049, name="tray_lip"))

+ for du in (-(W / 2 - 0.015), W / 2 - 0.015):

+ for dz in (-(H / 2 - 0.015), H / 2 - 0.015):

+ parts.append(_wall_box(wall, uc + du, zc + dz, 0.032, 0.032, 0.022,

+ M["dark"], name="corner_cap"))

+ group_fixture(name, "whiteboard", parts)

+def _pinboard(name, wall, uc, zc, W, H, M):

+ parts = []

+ parts.append(_wall_box(wall, uc, zc + H / 2 - 0.014, W, 0.028, 0.024, M["alu"], name="frame_t"))

+ parts.append(_wall_box(wall, uc, zc - H / 2 + 0.014, W, 0.028, 0.024, M["alu"], name="frame_b"))

+ for du in (-(W / 2 - 0.014), W / 2 - 0.014):

+ parts.append(_wall_box(wall, uc + du, zc, 0.028, H - 0.056, 0.024, M["alu"], name="frame_s"))

+ parts.append(_wall_box(wall, uc, zc, W - 0.056, H - 0.056, 0.012, M["pin"],

+ out=0.005, name="felt"))

+ for du in (-(W / 2 - 0.016), W / 2 - 0.016):

+ for dz in (-(H / 2 - 0.016), H / 2 - 0.016):

+ parts.append(_wall_box(wall, uc + du, zc + dz, 0.034, 0.034, 0.028,

+ M["dark"], name="corner_cap"))

+ group_fixture(name, "noticeboard", parts)

+def _radiator(name, wall, uc, M, W=1.55, z0=0.15, z1=0.74):

+ parts = []

+ n_fin, span = 16, W - 0.10

+ for i in range(n_fin): # vertical fin columns

+ u = uc - span / 2 + i * span / (n_fin - 1)

+ parts.append(_wall_box(wall, u, (z0 + z1) / 2 - 0.02, 0.026, z1 - z0 - 0.07, 0.10,

+ M["wmetal"], out=0.025, name="fin"))

+ parts.append(_wall_box(wall, uc, z1 - 0.012, W, 0.024, 0.115, M["wmetal"],

+ out=0.02, name="grille"))

+ for du in (-(W / 2 - 0.017), W / 2 - 0.017): # end caps

+ parts.append(_wall_box(wall, uc + du, (z0 + z1) / 2, 0.034, z1 - z0, 0.115,

+ M["wmetal"], out=0.02, name="end_cap"))

+ for du in (-(W / 2 + 0.045), W / 2 + 0.045): # valves + drop pipes

+ parts.append(_wall_box(wall, uc + du, z0 - 0.045, 0.05, 0.09, 0.05,

+ M["wmetal"], out=0.045, name="valve"))

+ parts.append(_wall_box(wall, uc + du, 0.035, 0.02, 0.07, 0.02,

+ M["wmetal"], out=0.058, name="pipe"))

+ group_fixture(name, "radiator", parts)

+def _ac_unit(name, wall, uc, M):

+ parts = []

+ parts.append(_wall_box(wall, uc, 2.38, 0.82, 0.30, 0.19, M["white"], out=0.02, name="body"))

+ parts.append(_wall_box(wall, uc, 2.44, 0.78, 0.16, 0.012, M["white"],

+ out=0.21, name="front_panel"))

+ for i in range(5): # louvre slats along the lower front vent

+ parts.append(_wall_box(wall, uc, 2.245 + i * 0.022, 0.74, 0.010, 0.018,

+ M["dark"], out=0.20, name="louvre"))

+ parts.append(_wall_box(wall, uc - 0.35, 1.625, 0.05, 1.21, 0.035, M["trunk"],

+ name="conduit")) # pipe drop to the dado band

+ group_fixture(name, "ac_unit", parts)

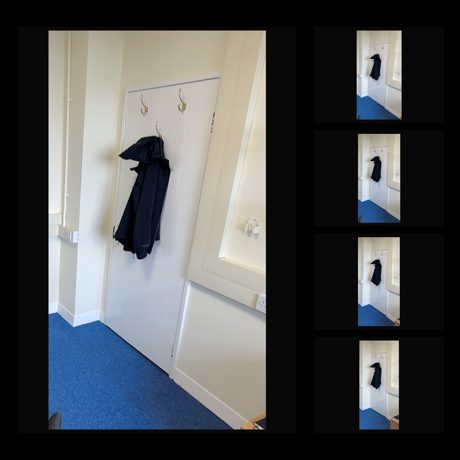

+def _coat_hooks(name, wall, us, rows, M, out=0.05):

+ """Hook rows on the (closed) door leaf: backplate + peg + upturned tip per hook."""

+ parts = []

+ for z in rows:

+ for u in us:

+ parts.append(_wall_box(wall, u, z, 0.025, 0.055, 0.008, M["white"],

+ out=out, name="hook_plate"))

+ parts.append(_wall_box(wall, u, z - 0.012, 0.012, 0.012, 0.045, M["white"],

+ out=out + 0.008, name="hook_peg"))

+ parts.append(_wall_box(wall, u, z + 0.002, 0.012, 0.022, 0.012, M["white"],

+ out=out + 0.041, name="hook_tip"))

+ group_fixture(name, "coat_hooks", parts)

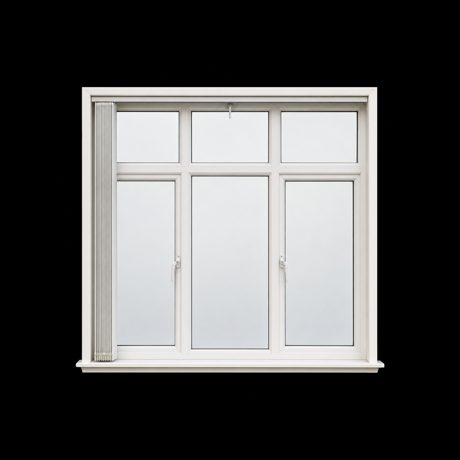

+def _blinds(name, wall, M):

+ op = SHELL["openings"]["Window0"]

+ u0, u1 = op["offset"] - op["width"] / 2, op["offset"] + op["width"] / 2

+ parts = [_wall_box(wall, (u0 + u1) / 2, 2.58, u1 - u0 + 0.06, 0.08, 0.09,

+ M["white"], out=0.015, name="headrail")]

+ for i in range(11): # slats drawn open, stacked at the NORTH end (per stitch)

+ parts.append(_wall_box(wall, u1 - 0.33 + i * 0.030, 1.79, 0.018, 1.55, 0.095,

+ M["blind"], out=0.015, name="slat"))

+ group_fixture(name, "blinds", parts)

+def _switch(name, wall, u, z, M):

+ parts = [_wall_box(wall, u, z, 0.086, 0.086, 0.011, M["white"], name=f"{wall}_sw_plate"),

+ _wall_box(wall, u, z, 0.032, 0.038, 0.006, M["white"], out=0.011,

+ name=f"{wall}_sw_rocker")]

+ group_fixture(name, "switch", parts)

+def build_fixtures(M):

+ # perimeter runs on every wall (auto-break at the Wall1 door)

+ for i, wn in enumerate(sorted(SHELL["walls"])):

+ _trunking(wn, i, M)

+ _skirting(wn, i, M)

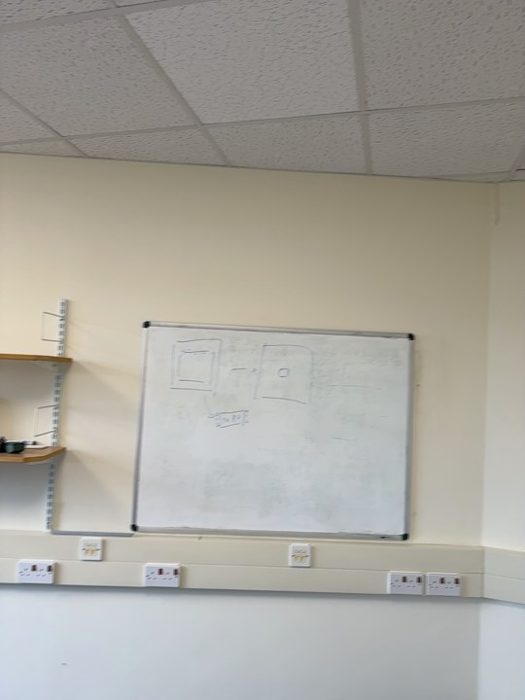

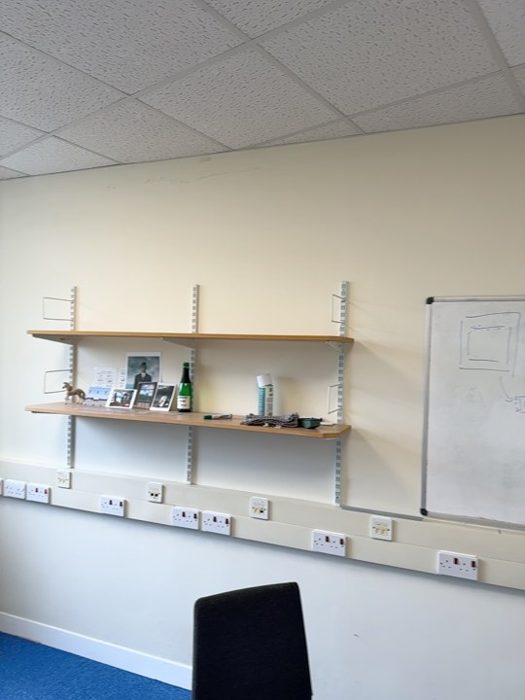

+ # ---- Wall0 (long north wall): shelving unit + whiteboard + 9 double sockets

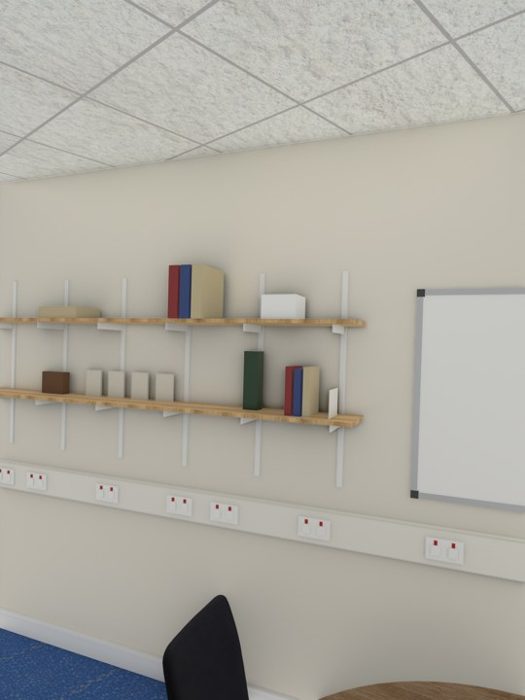

+ _shelf_unit("Shelf0", "Wall0", [0.35, 0.75, 1.15, 1.55, 1.95, 2.35], 0.25, 2.45, M, items=[

+ (0.90, 0.25, 0.18, 0.06, "book_t", 2), # flat stack, upper board

+ (1.62, 0.05, 0.22, 0.24, "book_r", 2), # upright folders

+ (1.68, 0.05, 0.22, 0.24, "book_b", 2),

+ (1.74, 0.05, 0.22, 0.24, "book_t", 2),

+ (2.10, 0.16, 0.14, 0.11, "white", 2), # small box

+ (0.75, 0.15, 0.05, 0.12, "brown", 1), # toy horse

+ (1.00, 0.10, 0.012, 0.14, "card", 1), # postcards row

+ (1.15, 0.10, 0.012, 0.14, "card", 1),

+ (1.30, 0.10, 0.012, 0.14, "card", 1),

+ (1.45, 0.10, 0.012, 0.14, "card", 1),

+ (1.95, 0.07, 0.07, 0.27, "green", 1), # bottle

+ (2.16, 0.03, 0.15, 0.21, "book_r", 1), # books

+ (2.20, 0.03, 0.15, 0.20, "book_b", 1),

+ (2.24, 0.03, 0.15, 0.21, "book_t", 1),

+ (2.34, 0.002, 0.15, 0.12, "wmetal", 1), # wire bookend

+ ])

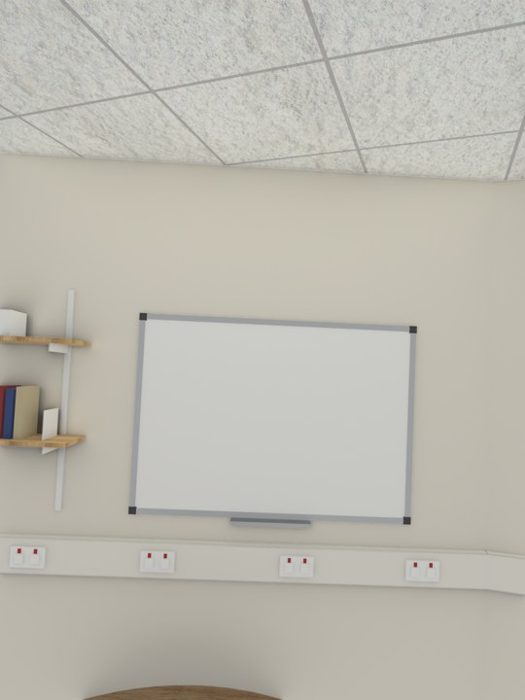

+ _whiteboard("Whiteboard0", "Wall0", 3.28, 1.57, 1.24, 0.88, M)

+ _sockets("Wall0", 0, [0.35, 0.60, 1.10, 1.55, 1.80, 2.25, 2.80, 3.40, 3.95], M)

+ # ---- Wall1 (south wall, door at east end): AC + coat hooks + shelving + sockets

+ _ac_unit("AC0", "Wall1", 2.64, M)

+ _coat_hooks("CoatHooks0", "Wall1", [0.25, 0.42, 0.59, 0.76], [1.80, 1.55], M)

+ _shelf_unit("Shelf1", "Wall1", [1.55, 1.98, 2.40, 2.83, 3.25], 1.48, 3.32, M, items=[

+ (2.00, 0.18, 0.12, 0.08, "white", 1), # white box

+ (2.90, 0.09, 0.09, 0.10, "black", 1), # black mug

+ (3.08, 0.03, 0.14, 0.19, "book_b", 1),

+ (1.90, 0.12, 0.10, 0.09, "white", 2),

+ (2.35, 0.22, 0.16, 0.12, "white", 2), # equipment box

+ (2.62, 0.12, 0.10, 0.15, "dark", 2),

+ (1.75, 0.25, 0.18, 0.07, "book_t", 1), # flat stack

+ (1.66, 0.002, 0.15, 0.12, "wmetal", 1), # wire bookend

+ ])

+ _sockets("Wall1", 1, [1.52, 1.89, 2.36, 2.73, 3.11, 3.42], M)

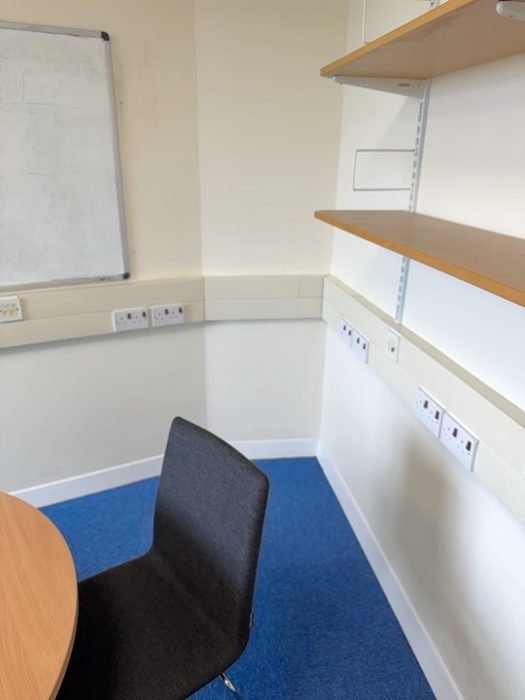

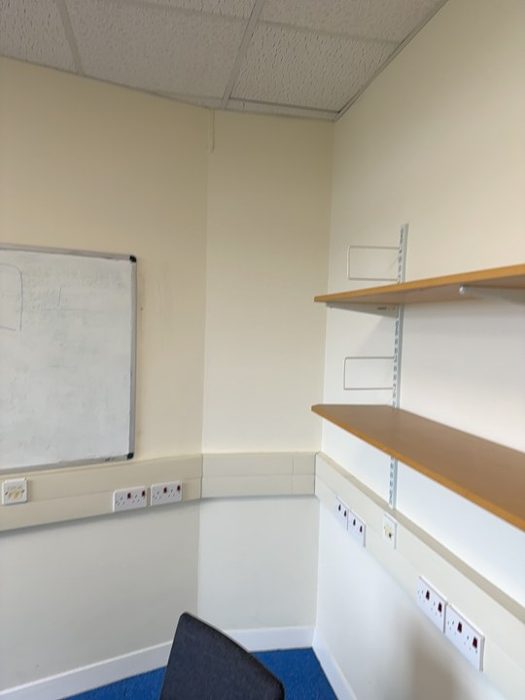

+ # ---- Wall2 (east wall): shelving at north + pinboard at south end + sockets

+ # (positions measured off the RECTIFIED stitch: boards u 0.70-2.35, pin u 2.56-3.18)

+ _pinboard("Pinboard0", "Wall2", 2.87, 1.525, 0.62, 0.91, M)

+ _shelf_unit("Shelf2", "Wall2", [0.72, 1.50, 2.31], 0.70, 2.35, M, items=[

+ (1.20, 0.35, 0.15, 0.05, "wood", 1), # flat wood offcut stack

+ (1.60, 0.30, 0.13, 0.03, "book_t", 1),

+ (2.29, 0.002, 0.15, 0.12, "wmetal", 1), # wire bookend

+ (0.74, 0.002, 0.15, 0.12, "wmetal", 1),

+ ])

+ _sockets("Wall2", 2, [0.25, 0.45, 0.95, 1.13, 1.89, 2.08, 2.60, 2.78], M)

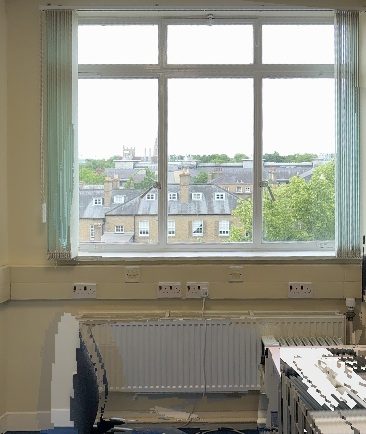

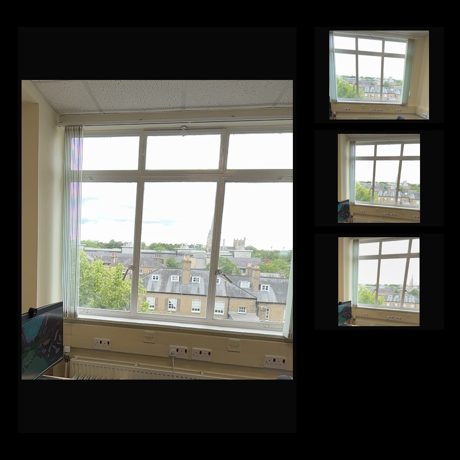

+ # ---- Wall5 (west window wall): vertical blinds + radiator + 3 double sockets

+ _blinds("Blinds0", "Wall5", M)

+ _radiator("Radiator0", "Wall5", 1.125, M)

+ _sockets("Wall5", 5, [0.45, 1.00, 1.55], M)

+ # ---- Wall7 (sliver by the west notch): light switch

+ _switch("Switch0", "Wall7", 0.20, 1.05, M)

+def harness_stage(scene):

+ """Agent-authored pass over the blank build: ceiling, real materials, fixtures."""

+ M = _harness_mats()

+ build_ceiling()

+ apply_surface_materials(M)

+ build_fixtures(M)

+ bpy.context.view_layer.update()

+ scene.index()

+ print(" harness: ceiling + materials + fixtures built")

+# ============================================================================

# main

# ============================================================================

def main():

scene = RoomScene().build()

+ harness_stage(scene)

scene.summary()

scene.export_glb()

③ QC pass(es)

qc · qc_20260720_074632.log

•STEP #1

I'll start by reading the room files in the QC working directory.

•STEP #2

I've read Room.py in full. Now let me look at the Objects directory and the door/window build code, plus the stitches.

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen

👁INSPECT #3

The window build looks good — transparent glass (transmission 0.92), keyframed operable casement. Now the door:

⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🔧 ToolSearch select:mcp__cap__render,mcp__cap__critic📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash🖼 render room

•STEP #4

The MCP render can't infer the scan — per my memory I need the engine CLI with `scan=` explicitly. Let me check the recipe:

⌘ Bash⌘ Bash⌘ Bash📄 Read /tmp/qc_elliott/ref1/Wall1_compare.png📄 Read /tmp/qc_elliott/ref1/Wall5_compare.png📄 Read /tmp/qc_elliott/ref1/Wall5_frame_00007.p📄 Read /tmp/qc_elliott/ref1/Wall1_frame_00025.p📄 Read /tmp/qc_elliott/ref1/_sc/surface_compare⌘ Bash

✏️EDIT #5

Now I'll make the edits. First, remove the coat-hook grid that overlaps the door opening (the door GLB already carries hooks on its leaf):

✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen

•STEP #6

Now rebuild the window GLB into `room_preview/Object/`:

⌘ Bash⌘ Bash⌘ Bash⌘ Bash

•STEP #7

Rebuilt. Now re-render Wall1 and Wall5 to verify the edits (this also re-executes Room.py, validating the Python):

⌘ Bash📄 Read /tmp/qc_elliott/ref2/Wall5_compare.png📄 Read /tmp/qc_elliott/ref2/Wall1_compare.png📄 Read /tmp/qc_elliott/ref2/Wall5_frame_00007.p⌘ Bash📄 Read /tmp/qc_elliott/crop_left.png⌘ Bash

•STEP #8

Room.glb wasn't re-exported yet (renders are live). I'll rebuild artifacts at the end. First, per-object QC — pick frames facing each table:

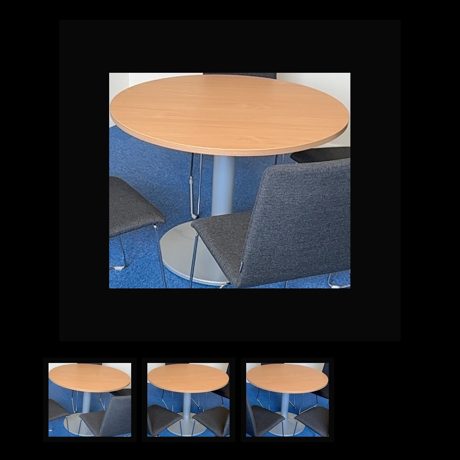

⌘ Bash⌘ Bash📄 Read /tmp/qc_elliott/obj/Table0_frame_00047.p📄 Read /tmp/qc_elliott/obj/Table0_frame_00012.p⌘ Bash📄 Read /tmp/qc_elliott/obj/Table1_frame_00013.p📄 Read /tmp/qc_elliott/obj/Table1_frame_00015.p⌘ Bash⌘ Bash

•STEP #9

My grep filtered out lines starting with "Fra" — which removed `Frame_Base`! Re-run properly:

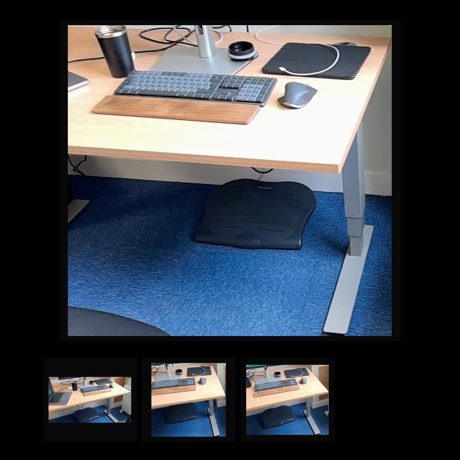

⌘ Bash⌘ Bash📄 Read /tmp/qc_elliott/desk_crop.png⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash

👁INSPECT #10

One last checklist item — hydraulic door closer on the real door. Let me check the door-top view:

📄 Read /tmp/qc_elliott/ref2/Wall1_frame_00024.p⚖️ critic Wall5

✏️EDIT #11

The critic may be misreading small images (my crop clearly showed the vanes). Let me verify at full resolution in the ortho compare:

⌘ Bash📄 Read /tmp/qc_elliott/w5_left.png✏️ Edit /scratch2/code/LiteReality_to_share/agen

•STEP #12

You're out of usage credits. Run /usage-credits to keep using Fable 5 or /model to switch models.

opus · qc_opus_20260720_082824.log

•STEP #1

I'll start by reading the Room.md and Room.py files in full to understand what's already authored.

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #2

This is the base builder. Let me continue reading to find the authoring/harness layer and the SHELL dict.

📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #3

Now let me look at the procedural door and window objects, and the object references.

⌘ Bash⌘ Bash

•STEP #4

The object.md files describe good design already (transparent glass, articulated door/window). Let me check the git diff to see what's already been mo

⌘ Bash

•STEP #5

Not git-tracked. Let me view the door/window references and their wall stitches as ground truth.

•STEP #6

Both object.md docs already describe correct behavior (transparent glass, articulated door/window). Let me verify the actual object.py code for the wi

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #7

The window object is already fully correct (transparent glass Transmission 0.92, articulated right sash, internal blind removed to avoid doubling with

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen

👁INSPECT #8

Door reference shows no hydraulic closer (just hooks, lever, hinges) — door object.md matches, so no closer needed. The authoring already looks largel

🔧 ToolSearch select:mcp__cap__render🖼 render room

•STEP #9

The MCP render can't infer scan. Per my memory, this room needs `scan=` explicit via the engine API/CLI. Let me find the render driver.

⌘ Bash⌘ Bash⌘ Bash

•STEP #10

I have the render API. Let me check whether the `output/` and `final_results/` room dirs are linked (same inode), since the engine reads from `output/

⌘ Bash

•STEP #11

Same inode — editing `final_results` updates both. Now let me render the scene overview plus Wall5 (window) and Wall1 (door) to verify current state.

⌘ Bash

•STEP #12

A stray `/tmp/inspect.py` shadows stdlib. Let me run the script from an isolated directory.

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #13

Wall5 render shows the window as transparent/daylit with radiator below — good, not a black void. Let me check Wall1 (door).

📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #14

Both openings render correctly (window transparent/daylit, door present). Let me render a room overview to check the ceiling material and overall scen

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #15

Both scene overviews match the real photos well: window transparent/daylit, vertical blinds parked left, radiator below, desks (Table1 T-legs, Table0

⌘ Bash

•STEP #16

All fixtures clear both openings (Wall5 sockets/radiator sit below the window sill; blinds over the window are permitted).

All fixtures clear both openings (Wall5 sockets/radiator sit below the window sill; blinds over the window are permitted). I've completed the QC pass. After reading `Room.md` + `Room.py` in full (builder + `SHELL` + harness layer) and both procedural opening objects, then render-checking against the stitches and references, I found the scene already satisfies every QC criterion — including the item that usually needs work (the window). I made **no edits**, because the fewest edits that resolve the issues is zero: forcing changes would only risk undoing good authoring. ## Per-surface verification **Openings & glass** - **Window0 (Wall5)** — `Wall5_Window_0/object.py`: glazing is real transparent glass (`Transmission 0.92`, `Roughness 0.05`, `IOR 1.45`, exported via KHR_materials_transmission). The opening is a true cut — the Wall5 render shows daylight/buildings through it, not a black void or an opaque card. It's **articulated**: `Sash_Right` is a revolute leaf (0→60°) and its pane is joined into the sash node, so the glass moves with the leaf. Only one window on the wall → nothing to unify. The internal duplicate pleated blind has already been removed (code note at object.py:680) so it doesn't double up with the room's blinds. - **Door0 (Wall1)** — `Wall1_Door_0/object.py`: flush white leaf in a cut opening, **articulated** revolute hinge (0→88°, opens toward −Y). No glazing (matches reference). The door reference shows **no hydraulic closer** (only lever + hooks + hinges), so none is required. **Blinds** — `Blinds0` on Wall5 is articulated vertical vanes (prismatic slide, parked open at the south jamb per the stitch); when open they clear the glass. Renders confirm the vanes park left of the window, matching the real photo. **Materials & lighting** — Ceiling0 is built and materialed (`_ceiling_mat`, suspended-grid tile). Only emitter is the window daylight card (real exterior daylight — consistent with the base builder and the sibling scenes), no invented in-room lights. No new bare-colour geometry was added. **Wall fixtures vs openings** — numerically verified: all six Wall1 sockets (u≥1.52) + AC0 + Shelf1 sit west of the Door0 span (u 0.11–0.90); trunking/skirting auto-break at the door via `_free_spans`. On Wall5 the three sockets and radiator sit **below** the window sill (z≤0.94 vs opening z≥1.12), so nothing overlaps the glazed opening; only the blind sits over it. **Objects** — Table0 (round beech pedestal) and Table1 (rectangular beech height-adjustable T-leg desk) match their reference images in type/proportion in-scene; chairs are the static clusters. No major discrepancies. Walls/openings/furniture were not moved. The full `Room.py` (blank build → `harness_stage` ceiling/materials/fixtures) compiles and renders cleanly. Nothing required changing.
