PSi_2_meeting-Zhening · process report

① One-shot authoring

model claude-fable-5 · 106 tool calls · 25m07s · cost $17.210686

👁INSPECT #1

I'll start by reading Room.md and Room.py to learn the helper API, then look at the reference stitches.

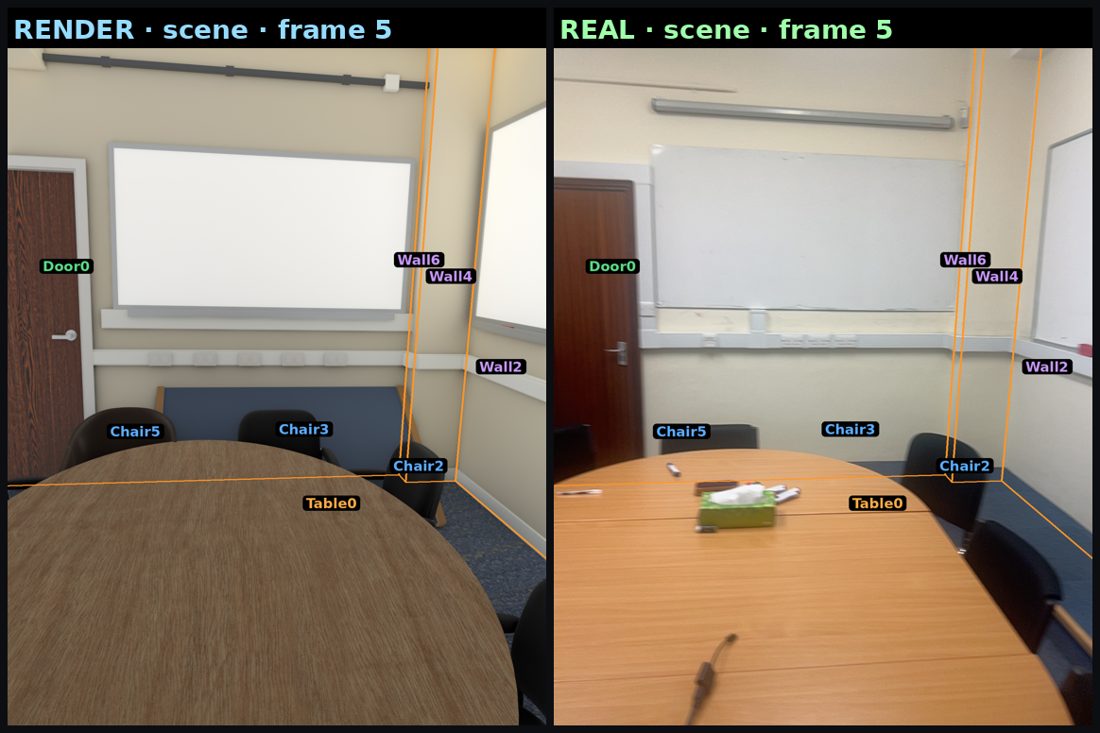

scene · scene_frame_00005

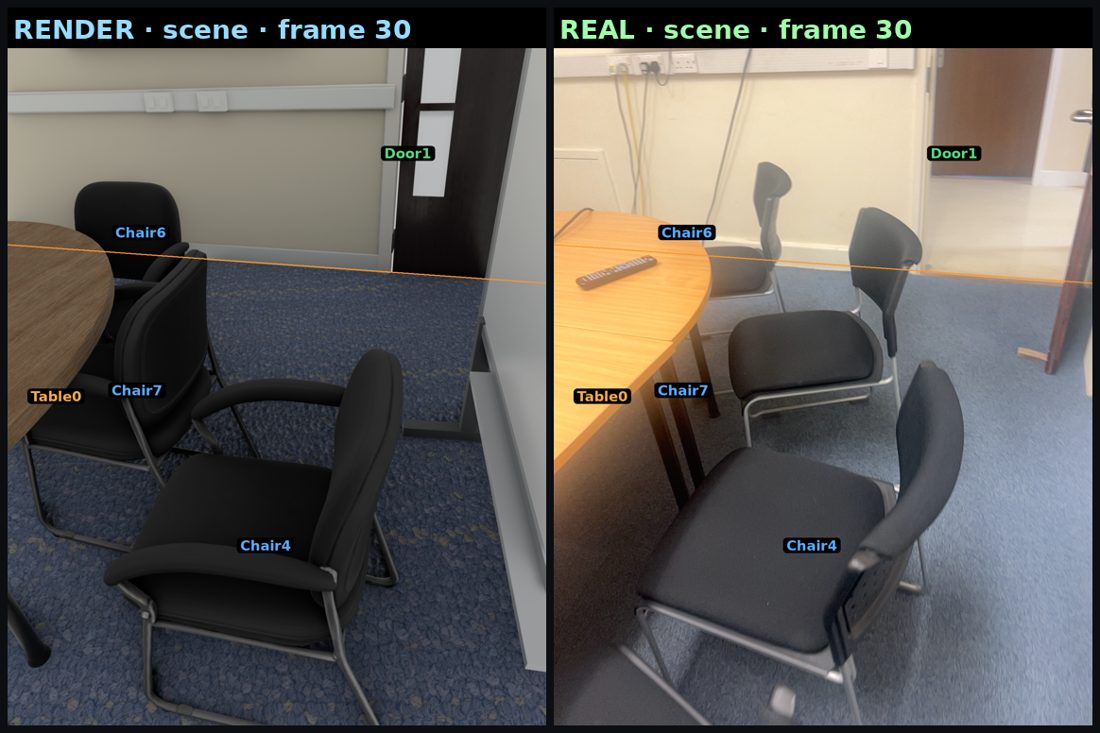

scene · scene_frame_00030

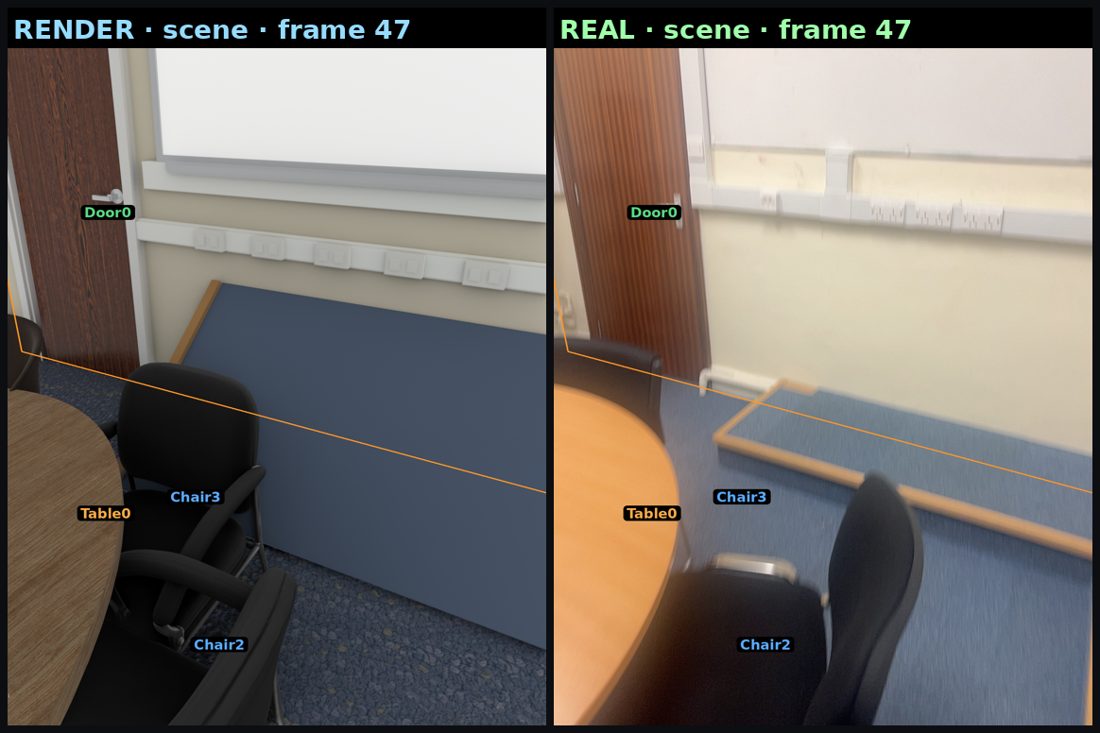

scene · scene_frame_00047

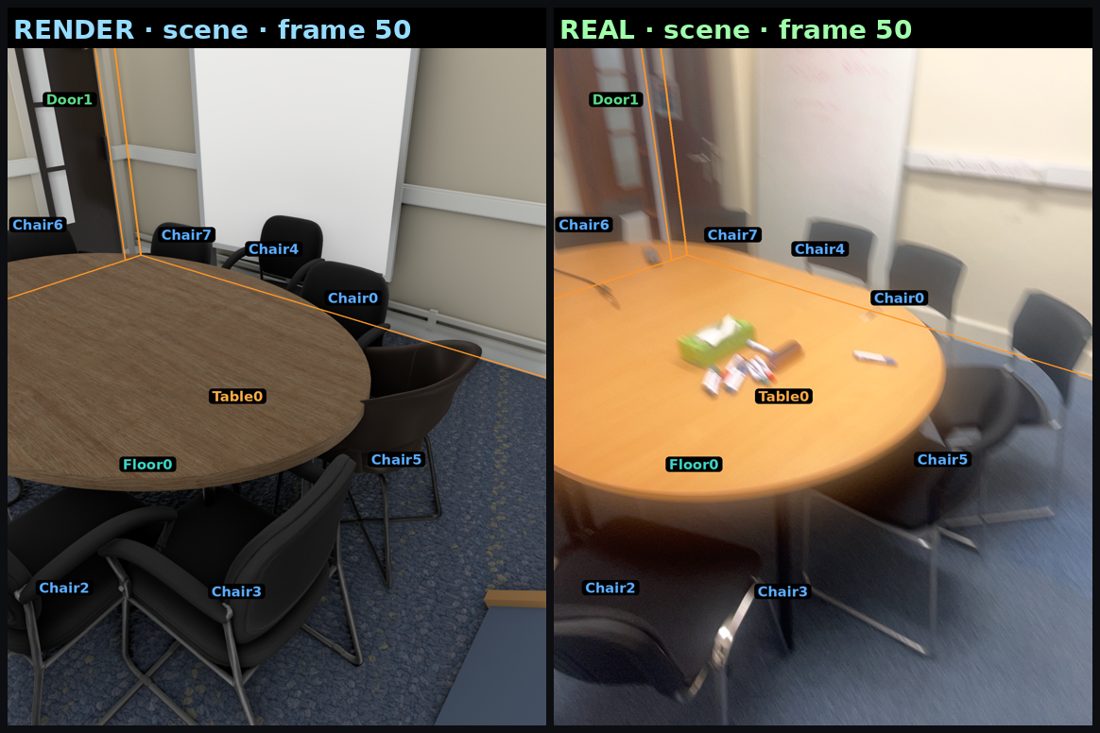

scene · scene_frame_00050

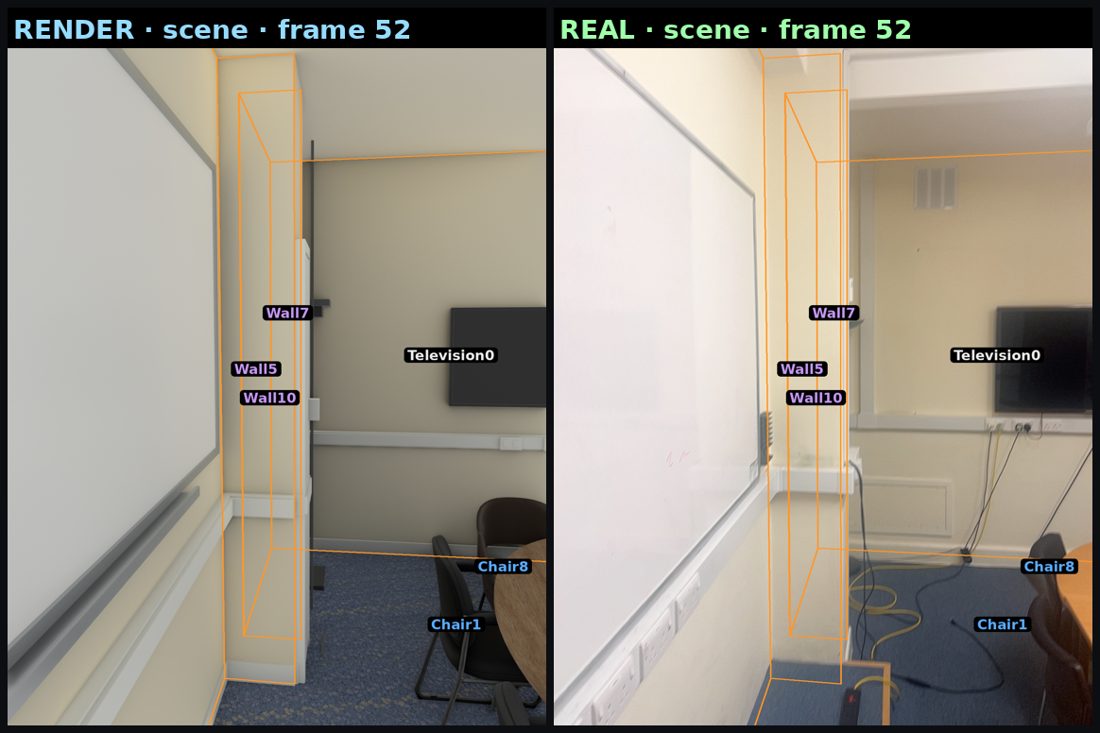

scene · scene_frame_00052

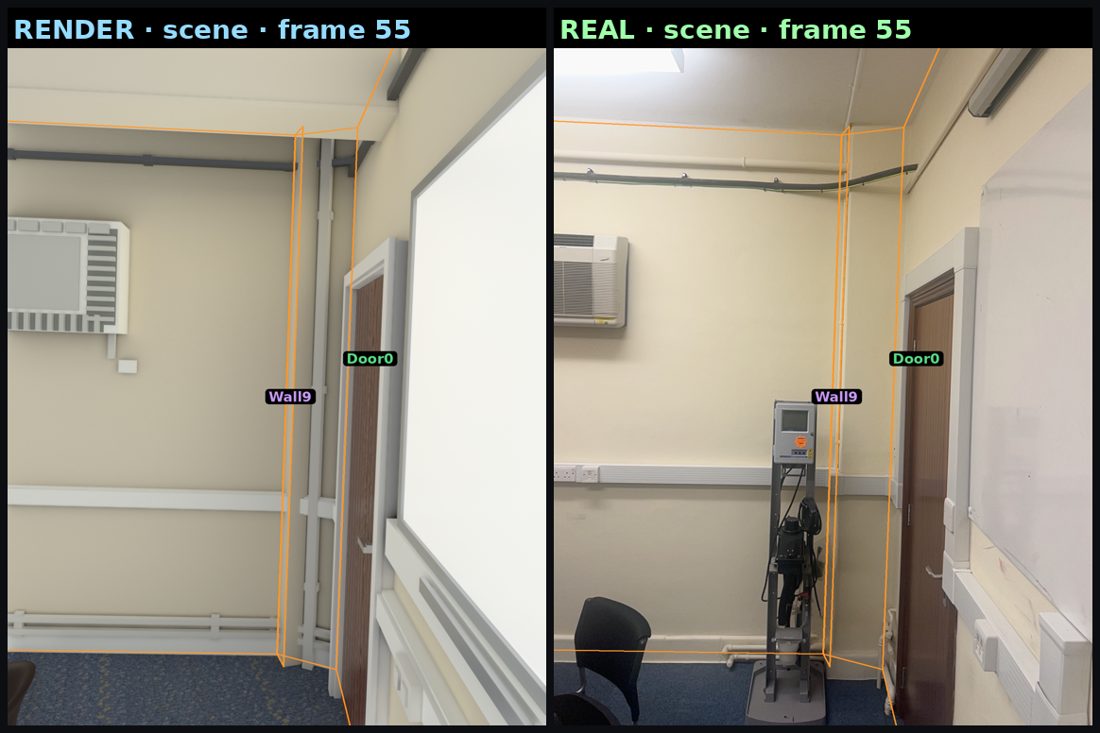

scene · scene_frame_00055

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🔧 ToolSearch select:mcp__cap__render,mcp__cap__fetch_📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🖼 render room

✏️EDIT #2

As my memory notes, the MCP render needs an explicit scan — I'll use the render engine CLI directly.

⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /tmp/r26.png📄 Read /tmp/r28.png📄 Read /tmp/r30.png⌘ Bash📄 Read /tmp/r36.png📄 Read /tmp/r46.png📄 Read /tmp/r50.png📄 Read /tmp/r55.png📄 Read /tmp/r57.png⌘ Bash⌘ Bash📄 Read /tmp/c57b.png📄 Read /tmp/c55b.png⌘ Bash📄 Read /tmp/c48rad.png📄 Read /tmp/r47.png⌘ Bash📄 Read /tmp/c56bot.png📄 Read /tmp/c55bot.png🎨 fetch_material blue office carpet low pile⌘ Bash⌘ Bash📄 Read /tmp/c57bot.png📄 Read /tmp/c55mid.png✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🎨 fetch_material blue office carpet low pile⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /tmp/rh57.png📄 Read /tmp/rh55.png⚖️ critic✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

✏️EDIT #3

Whiteboards now read bright white, the pinboard is muted grey-blue, and the AC shows louvre relief. Re-running the critic:

⚖️ critic✏️ Edit /scratch2/code/LiteReality_to_share/agen⌘ Bash⌘ Bash⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen✏️ Write /home/zelda/zh340/.claude/projects/-scra⌘ Bash

•STEP #4

Done — `Room.py` now carries the full harness layer for PSi_2_meeting-Zhening and rebuilds cleanly (every render pass re-executed it in Blender withou

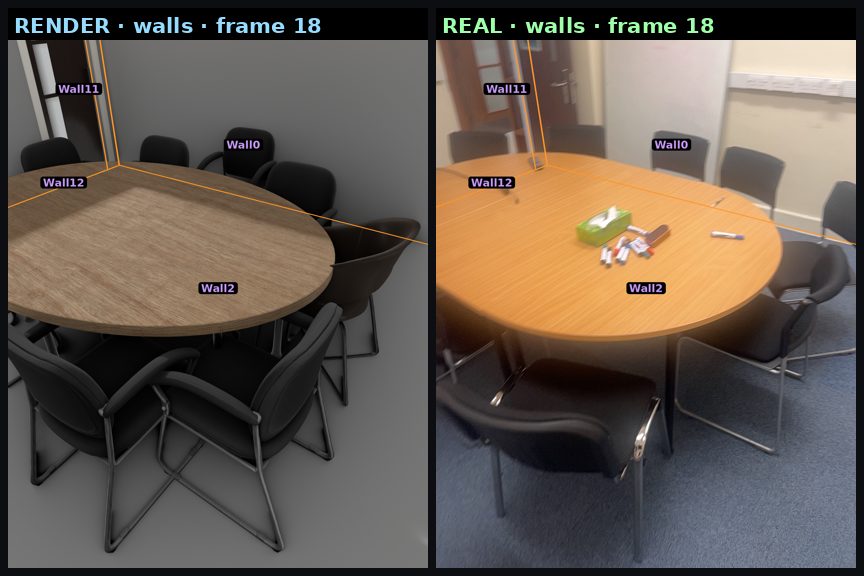

All render-vs-real montages12 more

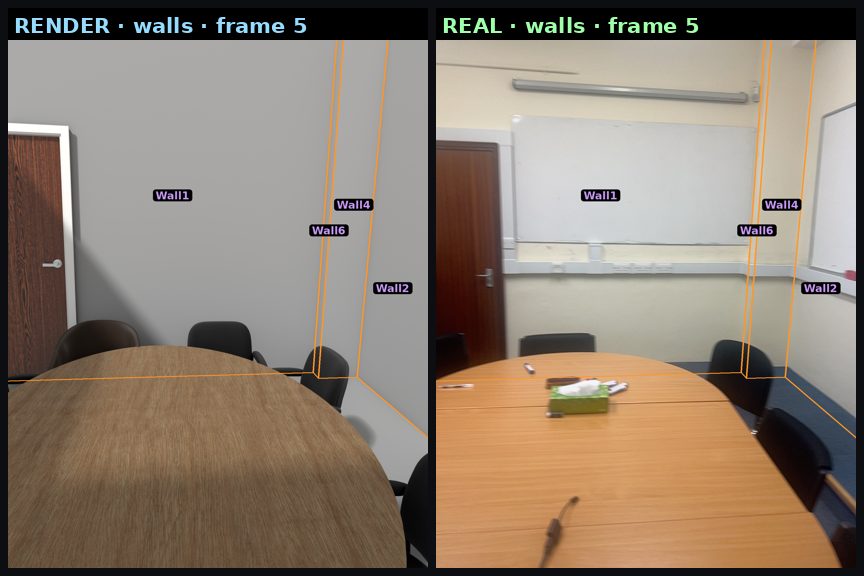

wall · wall_frame_00005

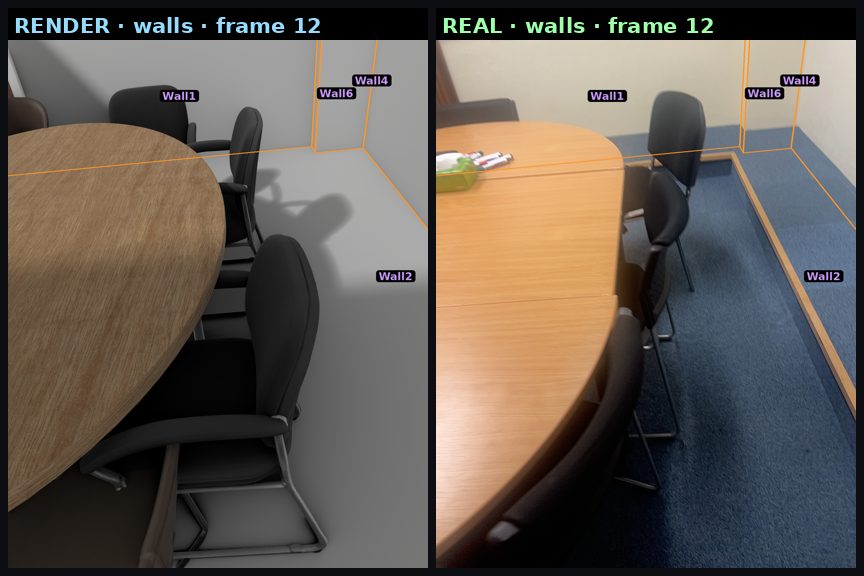

wall · wall_frame_00012

wall · wall_frame_00018

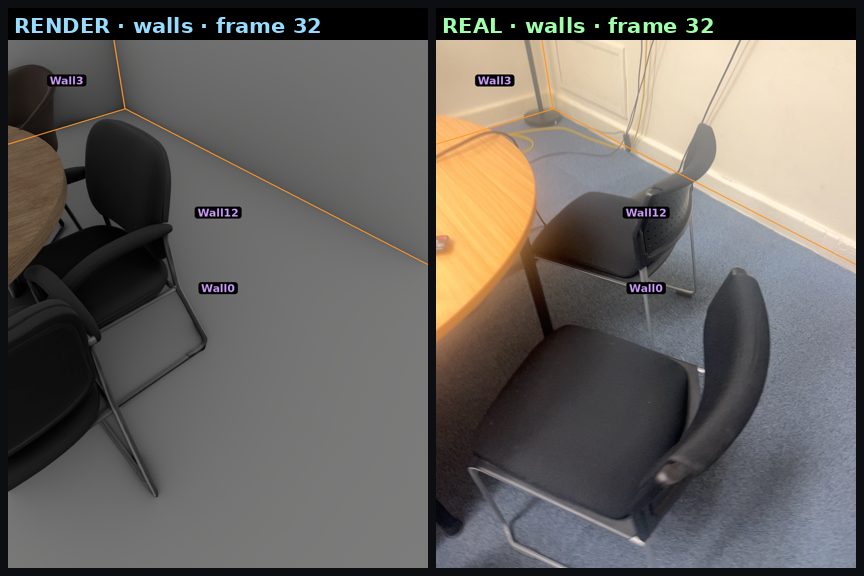

wall · wall_frame_00032

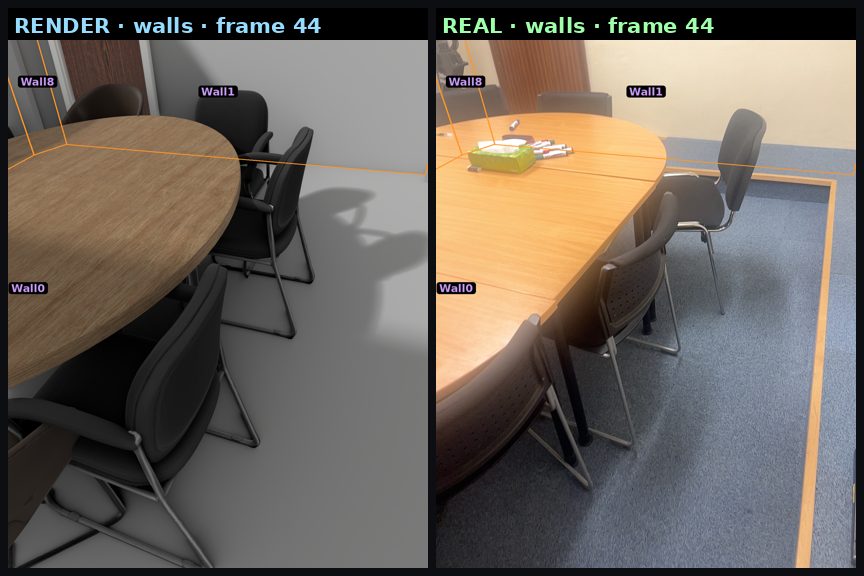

wall · wall_frame_00044

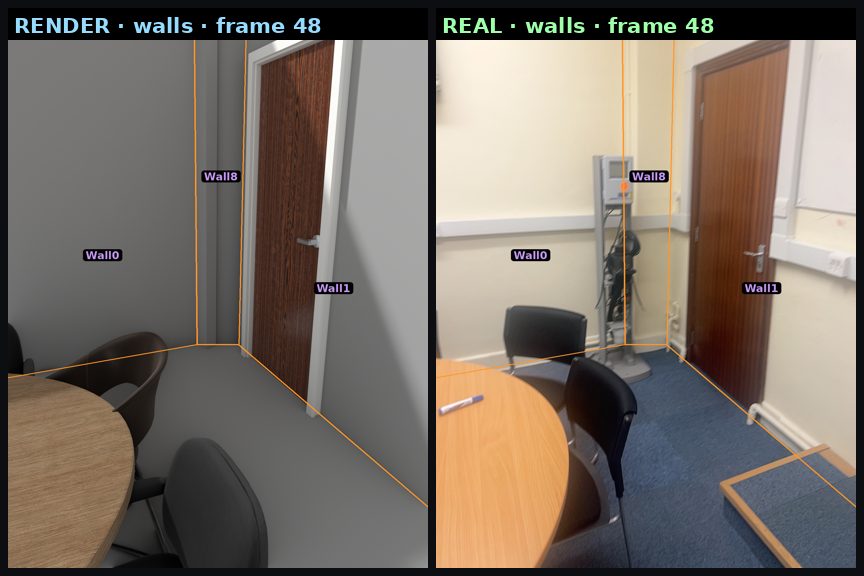

wall · wall_frame_00048

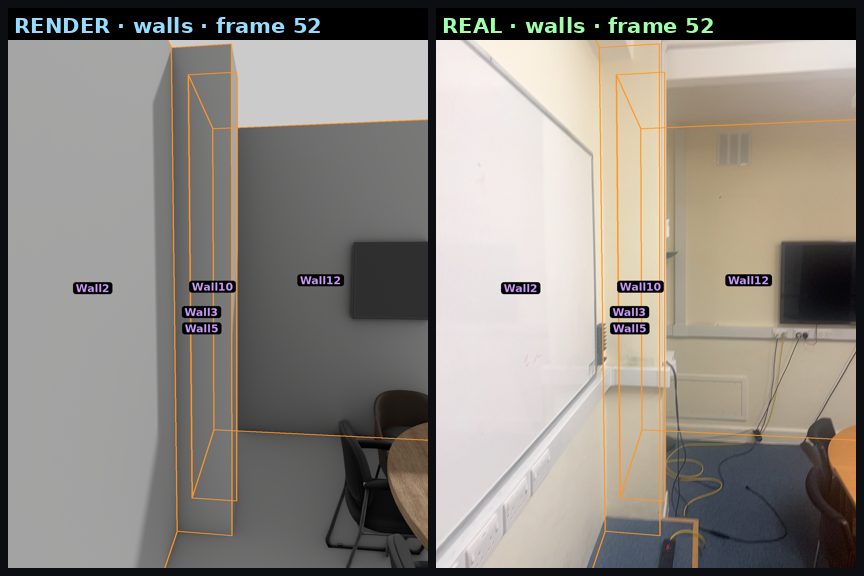

wall · wall_frame_00052

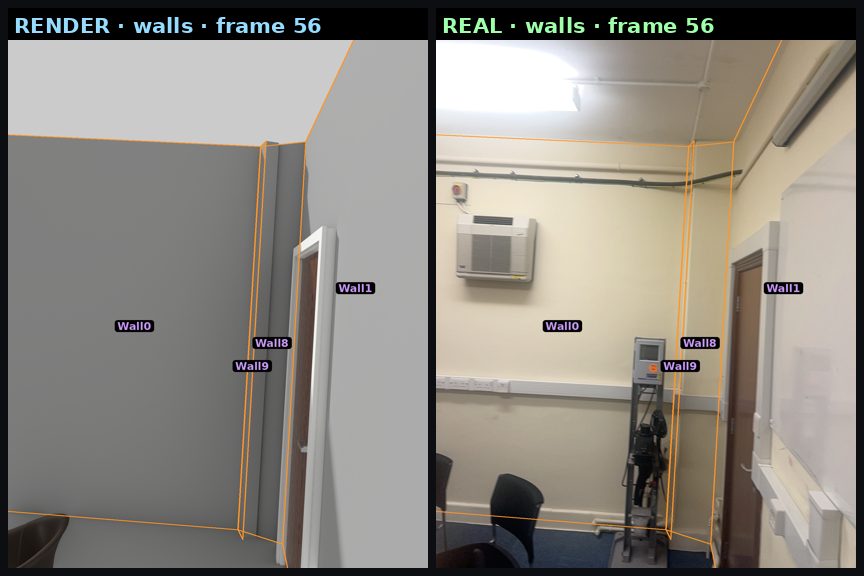

wall · wall_frame_00056

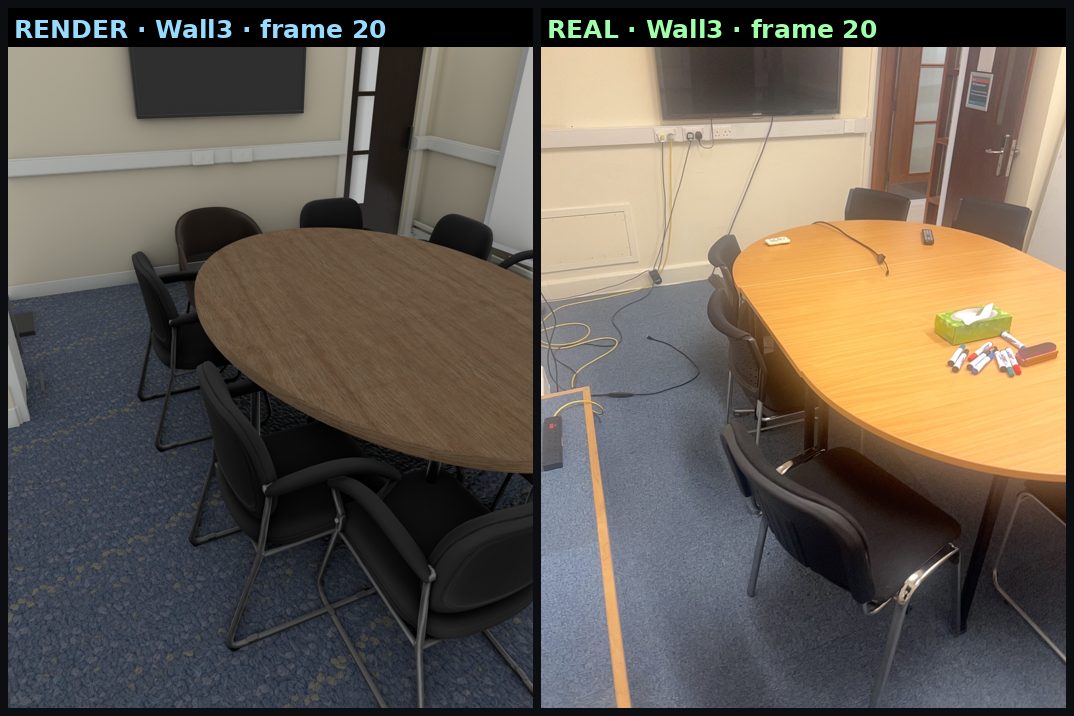

wall_focus · Wall3_frame_00020

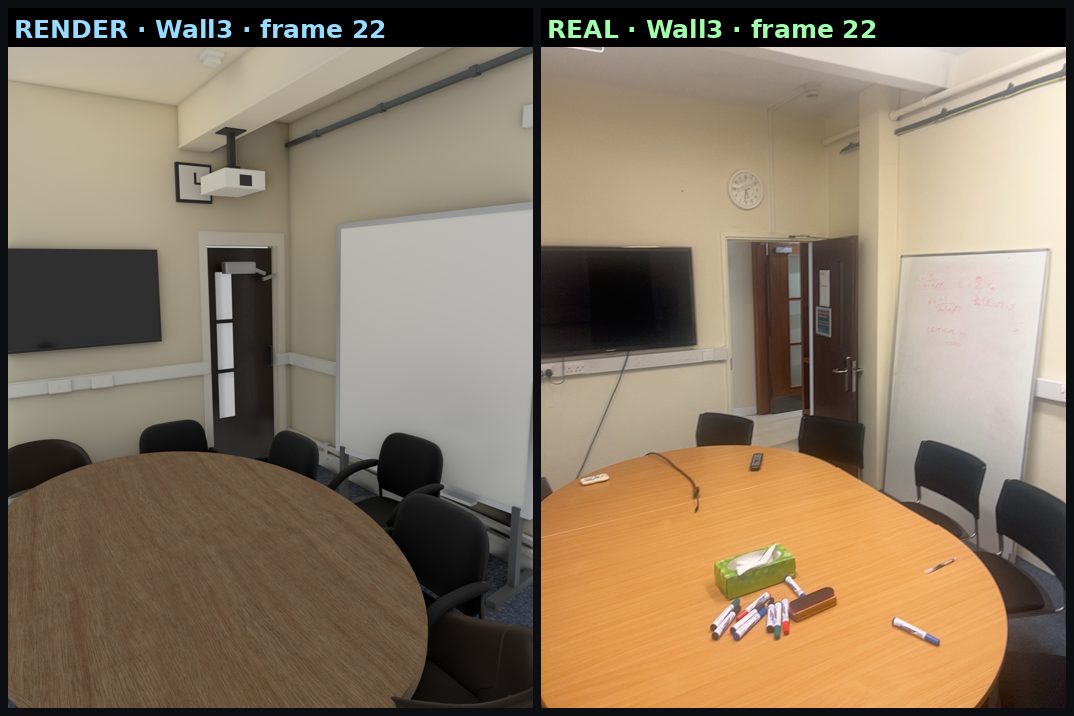

wall_focus · Wall3_frame_00022

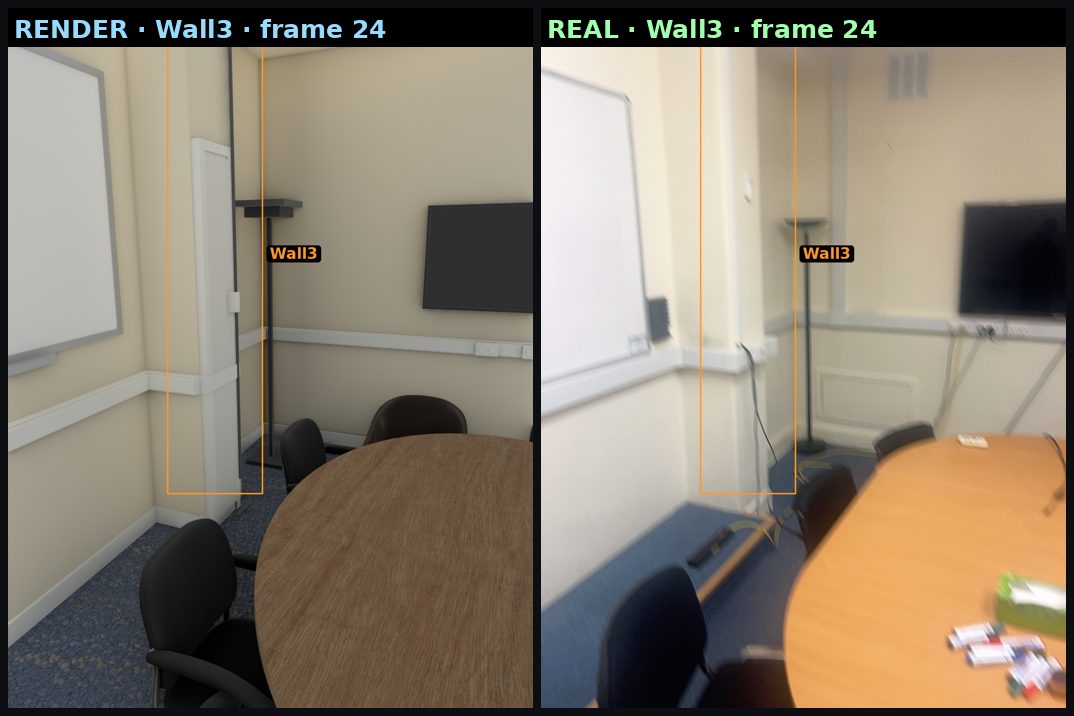

wall_focus · Wall3_frame_00024

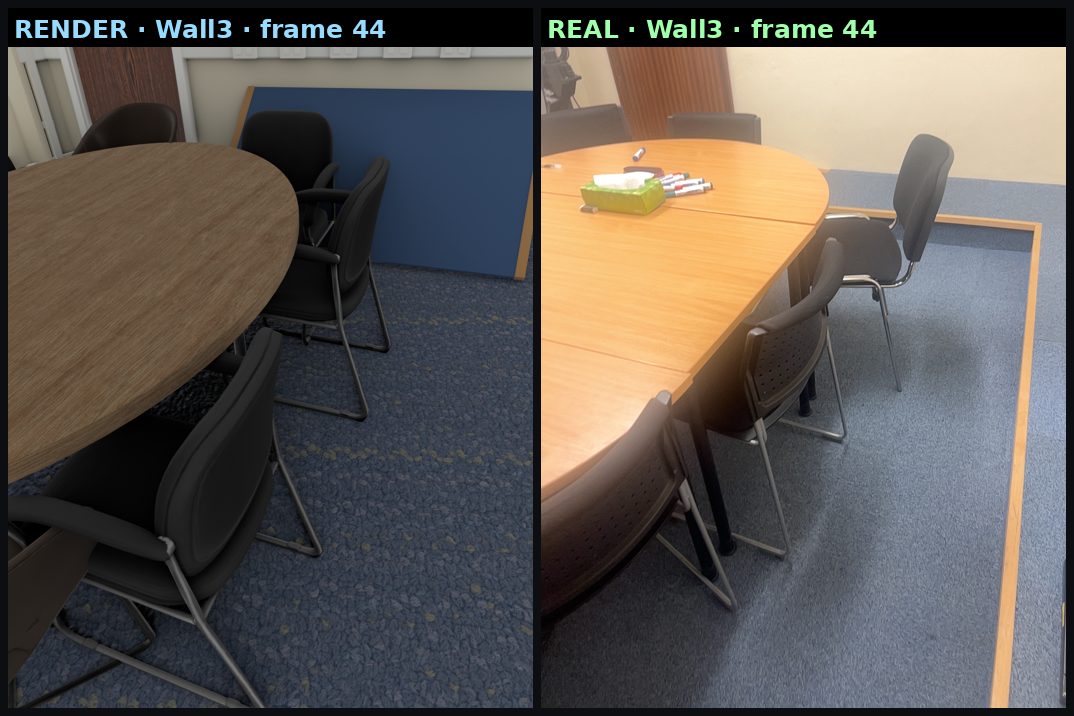

wall_focus · Wall3_frame_00044

Authoring — model summary

Done — `Room.py` now carries the full harness layer for PSi_2_meeting-Zhening and rebuilds cleanly (every render pass re-executed it in Blender without error; the hardlinked output copy stays in sync). ## Job 1 — Shell + materials - **Structure**: checked against photos — walls, both door openings and heights all match the scan; no SHELL edits needed. (Wall9 is a dangling scan sliver at the pipe corner; left as-is, no fixtures on it.) - **Materials**: all 13 walls warm cream paint; floor gets a real Poly Haven carpet PBR recoloured to slate-blue (`materials/floor_carpet_*`); new `Ceiling0` mesh built over the 11-vertex boundary in cream plaster. Verified on a bare-ish pass before fixtures went in. ## Job 2 — Fixtures (all multi-part, all grouped via `group_fixture`) | Wall | Group | Parts | |---|---|---| | all round | `Trunking0` | channel + proud lid per free span, breaks at both doors | | all round | `Skirting0` | proud white boards per span | | Wall0 | `Conduit0` | ceiling-level pipe + 6 saddle clips + junction box + Wall8 continuation | | Wall0 | `AC0` | body + recessed panel + 2 dark-backed side louvre columns (9 slats each) + 11-slat bottom grille + 6 top slats + drain pipe/box | | Wall0 | `FireAlarm0` | red call point + glass face + white sounder | | Wall0 | `Socket0–3` | trunking-mounted body + 2 raised outlets each | | Wall0 | `Pipes0` | twin heating pipes + clips, continuing across Wall8 | | Wall0 | `WhiteboardM0` | freestanding board: face, 4 frame bars, 2 legs, 2 feet, tray, yawed off-wall | | Wall1 | `Whiteboard1` + `WhiteboardSill0` | 4 frame bars, face, full-width tray + lip, white mounting sill | | Wall1 | `Conduit1`, `Socket4–8`, `PinBoard0` | conduit + clips + round junction; 5 sockets; blue-felt pinboard leaning at 52° with 4 proud beech frame bars | | Wall2 | `Whiteboard2` | near-full-wall board + tray + red eraser + marker | | Wall3 | `FloorLamp0` | base disc, pole, bowl, rim | | Wall7 | `Panel0`, `Cable0` | panelled services cladding (carcass, inset, 3 frame bars, holder); dropped cable | | Wall8 | `Pipe0` | vertical boxed riser + 3 brackets | | Wall12 | `Clock0`, `Socket9–10` | rim, face, two hands; sockets under the TV | | Ceiling | `Beam0`, `Projector0`, `Light0/1`, `Smoke0` | downstand beam + arris; plate/pole/knuckle/body/lens/vent; two twin-tube battens (body, emissive diffuser, end caps); detector base + dome | **Render-verified** with side-by-side render|photo pairs on frames 5, 47 (Wall1), 50 (Wall2), 52 (Wall7/12), 55 (Wa ✓ [3/6] one-shot authoring · 25m08s ⊘ [4/6] per-object refinement — skipped (SKIP_REFINE=1) ⊘ [5/6] per-wall fixture refinement — skipped (REFINE_WALLS=0) ▶ [6/6] export three.js viewer (0 stages left) === RoomScene.build (blank) === shell <- SHELL(compact): 13 walls, 2 openings, 11 objects（无 usdz） thickened 13 walls outward to ~0.1 m cut 2/2 openings {'Door0': 'Wall1', 'Door1': 'Wall12'} 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node Top 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node Cube 13:59:01 | INFO: glTF import finished in 0.00s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node Cube 13:59:01 | INFO: Blender create Mesh node Cube.010 13:59:01 | INFO: Blender create Mesh node Cube.013 13:59:01 | INFO: Blender create Mesh node Cube.007 13:59:01 | INFO: Blender create Mesh node Cube.008 13:59:01 | INFO: Blender create Mesh node Cube.009 13:59:01 | INFO: Blender create Mesh node Cube.006 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node Cube 13:59:01 | INFO: Blender create Mesh node Cube.007 13:59:01 | INFO: glTF import finished in 0.00s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s 13:59:01 | INFO: Data are loaded, start creating Blender stuff 13:59:01 | INFO: Blender create Mesh node geometry_0 13:59:01 | INFO: glTF import finished in 0.01s placed 13 asset instances built 0 capture cameras indexed 27 objects, 0 cameras floor-grounded 0 visible piece(s) harness stage: materials + ceiling + fixtures built === ROOM SCENE (blank) === ac_unit : AC0 beam : Beam0 cable : Cable0 cable_trunking: Trunking0 ceiling : Ceiling0 ceiling_light: Light0, Light1 chair : Chair0, Chair1, Chair2, Chair3, Chair4, Chair5, Chair6, Chair7, Chair8 clock : Clock0 conduit : Conduit0, Conduit1 door : Door0, Door1 fire_alarm: FireAlarm0 floor : Floor0 floor_lamp: FloorLamp0 notice_board: PinBoard0 panel : Panel0 pipe : Pipe0, Pipes0 projector: Projector0 sill : WhiteboardSill0 skirting : Skirting0 smoke_detector: Smoke0 socket : Socket0, Socket1, Socket10, Socket2, Socket3, Socket4, Socket5, Socket6, Socket7, Socket8, Socket9 table : Table0 television: Television0 wall : Wall0, Wall1, Wall10, Wall11, Wall12, Wall2, Wall3, Wall4, Wall5, Wall6, Wall7, Wall8, Wall9 whiteboard: Whiteboard1, Whiteboard2, WhiteboardM0 placeable surfaces (top z): Table0 z=-0.574 center=[-1.5195, 0.7541, -0.9387] cameras: none INFO Draco mesh compression is available, use library at /scratch2/zh340/blender-4.5.1-linux-x64/4.5/scripts/addons_core/io_scene_gltf2/libextern_draco.so 13:59:01 | INFO: Starting glTF 2.0 export 13:59:01 | INFO: Extracting primitive: Floor0 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall0 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall1 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall10 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall11 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall12 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall2 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall3 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall4 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall5 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall6 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall7 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall8 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Wall9 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Ceiling0 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: Top 13:59:02 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:02 | INFO: Primitives created: 2 13:59:02 | INFO: Extracting primitive: Cube 13:59:02 | INFO: Primitives created: 4 13:59:02 | INFO: Extracting primitive: geometry_0 13:59:02 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: geometry_0.001 13:59:02 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: geometry_0.002 13:59:02 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: geometry_0.003 13:59:02 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: geometry_0.004 13:59:02 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:02 | INFO: Primitives created: 1 13:59:02 | INFO: Extracting primitive: geometry_0.005 13:59:03 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: geometry_0.006 13:59:03 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: geometry_0.007 13:59:03 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: geometry_0.008 13:59:03 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.001 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.010 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.013 13:59:03 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:03 | INFO: Primitives created: 3 13:59:03 | INFO: Extracting primitive: Cube.007 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.008 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.009 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.006 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.002 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cube.003 13:59:03 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 13:59:03 | INFO: Primitives created: 3 13:59:03 | INFO: Extracting primitive: Trunking0_Wall0_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall0_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall10_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall10_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall11_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall11_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall12_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall12_ch1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall12_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall12_lid1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall1_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall1_ch1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall1_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall1_lid1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall2_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall2_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall3_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall3_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall4_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall4_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall5_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall5_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall6_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall6_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall7_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall7_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall8_ch0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Trunking0_Wall8_lid0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall0_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall10_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall11_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall12_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall12_1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall1_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall1_1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall2_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall3_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall4_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall5_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall6_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall7_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Skirting0_Wall8_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_clip0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_clip1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_clip2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_clip3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_clip4 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_junction 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_pipe 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit0_pipe_w8 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FireAlarm0_box 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FireAlarm0_glass 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FireAlarm0_sounder 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_back 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat10 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat4 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat5 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat6 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat7 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat8 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_bot_slat9 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_drain 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_drain_box 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_4 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_5 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_6 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_7 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre0_8 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_4 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_5 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_6 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_7 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre1_8 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre_back0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_louvre_back1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_panel 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_top_slat0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_top_slat1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_top_slat2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_top_slat3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_top_slat4 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: AC0_top_slat5 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket0_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket0_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket0_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket1_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket1_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket1_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket2_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket2_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket2_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket3_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket3_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket3_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_clip0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_clip1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_clip2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_clip3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_run0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_run1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_w8_0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipes0_w8_1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_bar_bot 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_bar_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_bar_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_bar_top 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_face 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_foot_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_foot_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_leg_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_leg_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: WhiteboardM0_tray 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit1_clip0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit1_clip1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit1_clip2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit1_clip3 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit1_junction 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Conduit1_pipe 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_bar_bot 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_bar_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_bar_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_bar_top 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_face 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_tray 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_tray_lip 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard1_sill 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket4_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket4_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket4_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket5_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket5_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket5_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket6_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket6_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket6_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket7_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket7_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket7_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket8_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket8_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket8_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: PinBoard0_felt 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: PinBoard0_frame_bot 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: PinBoard0_frame_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: PinBoard0_frame_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: PinBoard0_frame_top 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_bar_bot 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_bar_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_bar_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_bar_top 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_eraser 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_face 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_marker 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_tray 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Whiteboard2_tray_lip 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FloorLamp0_base 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FloorLamp0_bowl 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FloorLamp0_bowl_rim 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: FloorLamp0_pole 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Panel0_carcass 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Panel0_frame_l 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Panel0_frame_r 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Panel0_frame_top 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Panel0_holder 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Panel0_inset 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cable0_drop 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Cable0_floor 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipe0_bracket0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipe0_bracket1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipe0_bracket2 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Pipe0_riser 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Clock0_face 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Clock0_hand_h 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Clock0_hand_m 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Clock0_rim 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket9_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket9_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket9_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket10_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket10_outlet0 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Socket10_outlet1 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Beam0_arris 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Beam0_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Projector0_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Projector0_knuckle 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Projector0_lens 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Projector0_plate 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Projector0_pole 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Projector0_vent 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light0_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light0_cap_a 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light0_cap_b 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light0_diffuser 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light1_body 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light1_cap_a 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light1_cap_b 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Light1_diffuser 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Smoke0_base 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Extracting primitive: Smoke0_dome 13:59:03 | INFO: Primitives created: 1 13:59:03 | INFO: Finished glTF 2.0 export in 1.9470794200897217 s EXPORTED -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/PSi_2_meeting-Zhening/scene_stage/_oneshot/room_preview/Room.glb (15272 KB) LAYOUT -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/PSi_2_meeting-Zhening/scene_stage/_oneshot/room_preview/room_layout.json (61 objects, 0 cameras) Info: Saved as "Room.blend" BLEND -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/PSi_2_meeting-Zhening/scene_stage/_oneshot/room_preview/Room.blend (40864 KB) COPIED -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/PSi_2_meeting-Zhening/scene_stage/_oneshot/room_preview/build_room.py DONE Blender 4.5.1 LTS (hash b0a72b245dcf built 2025-07-29 06:24:35) Blender quit === 物化 6 个物体 === tex Table0: 重建 3 张贴图 regen Table0 (object.py) regen Television0 (object.py) tex Wall12_Door_1: 重建 4 张贴图 regen Wall12_Door_1 (object.py) tex Wall1_Door_0: 重建 4 张贴图 regen Wall1_Door_0 (object.py) wrap ChairCluster0 (object.py) wrap ChairCluster1 (object.py) === 装配（无 frames（仅几何），外壳来自 Room.py 的 SHELL）-> Room.glb + Room.blend === 物化 6/6 个物体 Room_preview -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/PSi_2_meeting-Zhening/scene_stage/_oneshot/room_preview viewer → /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/PSi_2_meeting-Zhening/PSi_2_meeting-Zhening.html (8.8 MB, self-contained) final_results → /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/PSi_2_meeting-Zhening ✓ [6/6] export three.js viewer · 9s ╭────────── PSi_2_meeting-Zhening ──────────╮ ✓ init (skipped) 0s ✓ stitches (skipped) 0s ✓ one-shot authoring 25m08s ✓ obj refine (skipped) 0s ✓ wall refine (skipped) 0s ✓ export three.js viewer 9s total 25m17s viewer /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/PSi_2_meeting-Zhening/PSi_2_meeting-Zhening.html room /scratch2/code/LiteReality_to_share/agentic_litereality/output/PSi_2_meeting-Zhening/scene_stage/_oneshot/room/Room.py ╰────────────────────────────────────────────────╯

② Code changes

Room.py diffseed (blank shell) → authored

+631 −0 lines · seed → authored Room.py

@@ -1163,4 +1163,6 @@

def main():

scene = RoomScene().build()

+ harness_stage(scene) # materials + ceiling + wall fixtures (defined below)

+ scene.index()

scene.summary()

scene.export_glb()

@@ -2055,4 +2057,633 @@

+# ===========================================================================

+# HARNESS STAGE — materials for every surface, the missing ceiling, and the

+# wall fixtures the photos show. Every fixture is a MULTI-PART assembly

+# bundled into ONE named hide-as-a-unit group via group_fixture().

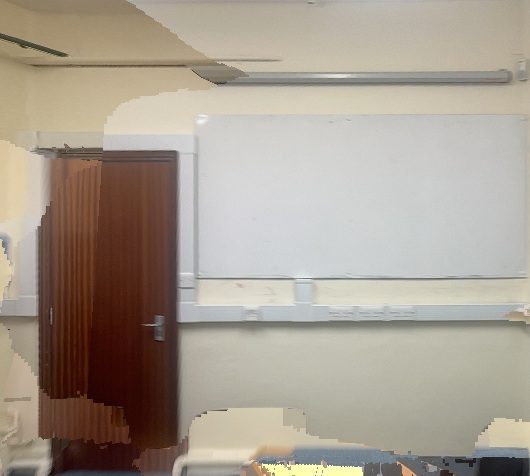

+# Reference notes (from surface_ref stitches + raw frames):

+# cream painted walls all round; blue carpet tiles; cream plaster ceiling

+# crossed by a boxed DOWNSTAND BEAM parallel to Wall0 (projector hangs off

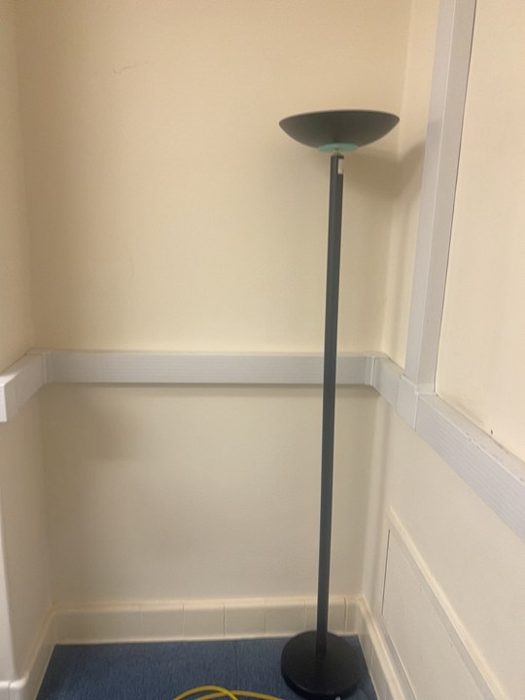

+# it); white dado trunking at ~0.90 m around the room; white skirting; twin

+# heating pipes along the base of Wall0/Wall8; grey conduit along the tops

+# of Wall0/Wall8/Wall1; wall-hung whiteboards on Wall1 + Wall2; freestanding

+# whiteboard near Wall0; blue pinboard leaning low against Wall1; white AC

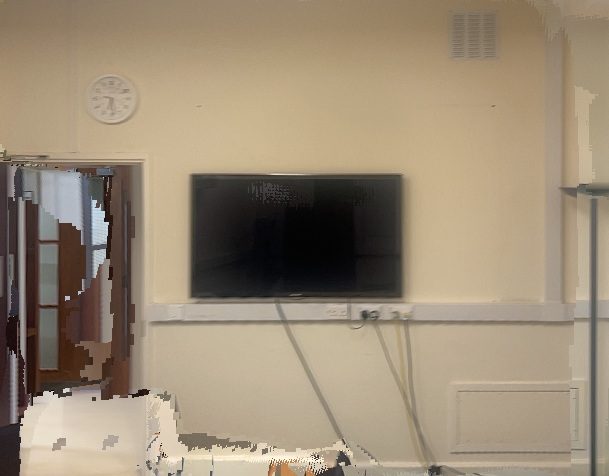

+# unit high on Wall0 (west end); clock high on Wall12; two surface-mounted

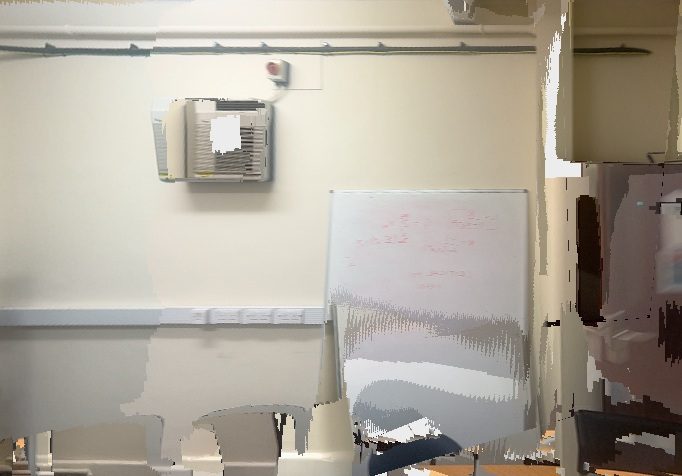

+# twin fluorescents. NOTE the Wall0 stitch is MIRRORED vs reality — all

+# Wall0 u-coords below are in REAL wall coords (u=0 at the Wall12 corner).

+# ===========================================================================

+MAT_DIR = os.path.join(HERE, "materials")

+FLOOR_Z = SHELL["floor_z"]

+CEIL_Z = SHELL["ceiling_z"]

+WALL_H = CEIL_Z - FLOOR_Z # 2.9702 m

+GRID_YAW = 164.03 # beam/luminaires run parallel to Wall0

+def _hex(h):

+ h = h.lstrip("#")

+ return tuple(int(h[i:i + 2], 16) / 255.0 for i in (0, 2, 4))

+def _pbr(name, hexcol, rough=0.8, metal=0.0, emit=0.0):

+ mat = bpy.data.materials.get(name)

+ if mat is not None:

+ return mat

+ mat = bpy.data.materials.new(name)

+ mat.use_nodes = True

+ nt = mat.node_tree

+ nt.nodes.clear()

+ out = nt.nodes.new("ShaderNodeOutputMaterial")

+ b = nt.nodes.new("ShaderNodeBsdfPrincipled")

+ nt.links.new(b.outputs["BSDF"], out.inputs["Surface"])

+ lin = srgb_to_linear(_hex(hexcol))

+ b.inputs["Base Color"].default_value = (*lin, 1.0)

+ b.inputs["Roughness"].default_value = rough

+ if "Metallic" in b.inputs:

+ b.inputs["Metallic"].default_value = metal

+ if emit: # gentle self-emission so bright surfaces read bright in renders

+ ec = "Emission Color" if "Emission Color" in b.inputs else "Emission"

+ b.inputs[ec].default_value = (*lin, 1.0)

+ if "Emission Strength" in b.inputs:

+ b.inputs["Emission Strength"].default_value = emit

+ return mat

+def _emit(name, hexcol, strength):

+ mat = bpy.data.materials.get(name)

+ if mat is not None:

+ return mat

+ mat = bpy.data.materials.new(name)

+ mat.use_nodes = True

+ nt = mat.node_tree

+ nt.nodes.clear()

+ out = nt.nodes.new("ShaderNodeOutputMaterial")

+ e = nt.nodes.new("ShaderNodeEmission")

+ e.inputs["Color"].default_value = (*srgb_to_linear(_hex(hexcol)), 1.0)

+ e.inputs["Strength"].default_value = strength

+ nt.links.new(e.outputs["Emission"], out.inputs["Surface"])

+ return mat

+def _tex_pbr(name, base, metres=2.0, rough=0.8):

+ """Image PBR (materials/<base>_{diff,rough,normal}.jpg) box-projected in

+ world metres — shell meshes carry no UVs, so Object coords do the mapping."""

+ mat = bpy.data.materials.get(name)

+ if mat is not None:

+ return mat

+ mat = bpy.data.materials.new(name)

+ mat.use_nodes = True

+ nt = mat.node_tree

+ nt.nodes.clear()

+ out = nt.nodes.new("ShaderNodeOutputMaterial")

+ b = nt.nodes.new("ShaderNodeBsdfPrincipled")

+ nt.links.new(b.outputs["BSDF"], out.inputs["Surface"])

+ tc = nt.nodes.new("ShaderNodeTexCoord")

+ mp = nt.nodes.new("ShaderNodeMapping")

+ mp.inputs["Scale"].default_value = (1.0 / metres,) * 3

+ nt.links.new(tc.outputs["Object"], mp.inputs["Vector"])

+ def img(suffix, noncolor):

+ p = os.path.join(MAT_DIR, f"{base}_{suffix}.jpg")

+ if not os.path.exists(p):

+ return None

+ n = nt.nodes.new("ShaderNodeTexImage")

+ n.image = bpy.data.images.load(p, check_existing=True)

+ n.projection = "BOX"

+ n.projection_blend = 0.3

+ if noncolor:

+ n.image.colorspace_settings.name = "Non-Color"

+ nt.links.new(mp.outputs["Vector"], n.inputs["Vector"])

+ return n

+ d = img("diff", False)

+ if d:

+ nt.links.new(d.outputs["Color"], b.inputs["Base Color"])

+ r = img("rough", True)

+ if r:

+ nt.links.new(r.outputs["Color"], b.inputs["Roughness"])

+ else:

+ b.inputs["Roughness"].default_value = rough

+ nm = img("normal", True)

+ if nm:

+ nmap = nt.nodes.new("ShaderNodeNormalMap")

+ nt.links.new(nm.outputs["Color"], nmap.inputs["Color"])

+ nt.links.new(nmap.outputs["Normal"], b.inputs["Normal"])

+ return mat

+def _room_centre2d():

+ pts = [w["start"] for w in SHELL["walls"].values()]

+ return (sum(p[0] for p in pts) / len(pts), sum(p[1] for p in pts) / len(pts))

+def _wall_frame2(wall):

+ """(start, along-dir, INTERIOR normal, length) of a SHELL wall on the floor plane."""

+ w = SHELL["walls"][wall]

+ s = Vector((w["start"][0], w["start"][1], 0.0))

+ e = Vector((w["end"][0], w["end"][1], 0.0))

+ d = e - s

+ L = d.length

+ d = d / L

+ n = Vector((-d.y, d.x, 0.0))

+ cx, cy = _room_centre2d()

+ if n.dot(Vector((cx, cy, 0.0)) - s) < 0:

+ n = -n

+ return s, d, n, L

+def _mk_box3(name, center, ax, al, ay, ayl, az, azl, mat=None):

+ """A box with THREE arbitrary (unit) axes ax/ay/az and lengths al/ayl/azl."""

+ me = _unit_cube_mesh(name)

+ ob = bpy.data.objects.new(name, me)

+ cx, cy, cz = center

+ ob.matrix_world = Matrix(

+ (

+ (ax.x * al, ay.x * ayl, az.x * azl, cx),

+ (ax.y * al, ay.y * ayl, az.y * azl, cy),

+ (ax.z * al, ay.z * ayl, az.z * azl, cz),

+ (0.0, 0.0, 0.0, 1.0),

+ )

+ bpy.context.scene.collection.objects.link(ob)

+ if mat is not None:

+ ob.data.materials.append(mat)

+ return ob

+_Z = Vector((0.0, 0.0, 1.0))

+def _mk_box(name, center, xd, xl, yd, yl, zl, mat=None):

+ return _mk_box3(name, center, xd, xl, yd, yl, _Z, zl, mat)

+def _wall_box(wall, u, z, w, h, depth, mat, proud=0.0, name="part"):

+ """A box mounted ON a wall. u = centre along the wall from its start (m);

+ z = centre height above the FLOOR; w×h face size; depth = thickness off the

+ wall; the back face sits `proud` metres inside the interior wall face."""

+ s, d, n, L = _wall_frame2(wall)

+ c = s + d * u + n * (proud + depth / 2.0)

+ return _mk_box(name, (c.x, c.y, FLOOR_Z + z), d, w, n, depth, h, mat)

+def _lean_box(wall, u, z_mid, w, h, depth, mat, tilt_deg, gap=0.0, name="part"):

+ """A box LEANING against a wall: tilted `tilt_deg` off vertical about the

+ wall-parallel axis, top toward the wall. z_mid = centre height above floor

+ measured along the tilted axis; gap = clearance of the top edge off the wall."""

+ s, d, n, L = _wall_frame2(wall)

+ t = math.radians(tilt_deg)

+ up = Vector((-n.x * math.sin(t), -n.y * math.sin(t), math.cos(t)))

+ fn = Vector((n.x * math.cos(t), n.y * math.cos(t), math.sin(t)))

+ base = s + d * u + n * (gap + h * math.sin(t) + depth / 2.0)

+ c = Vector((base.x, base.y, FLOOR_Z)) + up * z_mid

+ return _mk_box3(name, (c.x, c.y, c.z), d, w, fn, depth, up, h, mat)

+def _yaw_dirs(yaw_deg):

+ r = math.radians(yaw_deg)

+ return (Vector((math.cos(r), math.sin(r), 0.0)),

+ Vector((-math.sin(r), math.cos(r), 0.0)))

+def _free_box(name, cx, cy, z, sx, sy, sz, mat, yaw=GRID_YAW):

+ """Free box at world (cx,cy), z = centre height above the floor, yawed."""

+ xd, yd = _yaw_dirs(yaw)

+ return _mk_box(name, (cx, cy, FLOOR_Z + z), xd, sx, yd, sy, sz, mat)

+def group_fixture(name, category, parts):

+ """Bundle a fixture's parts into ONE named hide-as-a-unit group: an empty

+ with room_id/category props, every part parented to it, all of it living in

+ a collection named after the fixture (selects/hides/toggles like Table0)."""

+ grp = bpy.data.objects.new(name, None)

+ grp.empty_display_size = 0.1

+ grp["room_id"] = name

+ grp["category"] = category

+ coll = get_or_make_collection(name)

+ coll.objects.link(grp)

+ for p in parts:

+ p.parent = grp

+ p.matrix_parent_inverse = grp.matrix_world.inverted()

+ move_to_collection(p, coll)

+ return grp

+def _build_ceiling(mat):

+ order = ["Wall0", "Wall8", "Wall1", "Wall6", "Wall4", "Wall2",

+ "Wall5", "Wall7", "Wall10", "Wall3", "Wall12"] # boundary cycle

+ verts = [(SHELL["walls"][w]["start"][0], SHELL["walls"][w]["start"][1], CEIL_Z)

+ for w in order]

+ me = bpy.data.meshes.new("Ceiling0")

+ me.from_pydata(verts, [], [tuple(range(len(verts)))])

+ me.update()

+ ob = bpy.data.objects.new("Ceiling0", me)

+ bpy.context.scene.collection.objects.link(ob)

+ ob.data.materials.append(mat)

+ move_to_collection(ob, get_or_make_collection(COLL_SHELL))

+ return ob

+# --------------------------------------------------------------------- shared mats

+def _mats():

+ return {

+ "alu": _pbr("mat_alu", "#ced1d4", rough=0.35, metal=0.75),

+ "white_pvc": _pbr("mat_white_pvc", "#eef0eb", rough=0.5, emit=0.08),

+ "board": _pbr("mat_whiteboard", "#f8f9f8", rough=0.25, emit=0.35),

+ "socket": _pbr("mat_socket", "#f0f0ea", rough=0.5),

+ "conduit": _pbr("mat_conduit_grey", "#63666a", rough=0.4, metal=0.6),

+ "pipe": _pbr("mat_pipe_white", "#e6e6df", rough=0.55),

+ "red": _pbr("mat_red", "#b32427", rough=0.5),

+ "black": _pbr("mat_black", "#2a2b2c", rough=0.6),

+ "dark": _pbr("mat_dark_grey", "#55575a", rough=0.55),

+ "wood": _pbr("mat_pin_wood", "#b9884e", rough=0.6),

+ "felt": _pbr("mat_pin_felt", "#5a6b85", rough=0.95),

+ "grille": _pbr("mat_grille", "#cdd0ca", rough=0.6),

+ "grille_dark": _pbr("mat_grille_dark", "#8f938e", rough=0.7),

+ "cream": _pbr("mat_beam_cream", "#f1ebd9", rough=0.9),

+ "clockface": _pbr("mat_clock_face", "#f4f4f0", rough=0.4),

+ "led": _emit("mat_led_tube", "#f5f7f2", 14.0),

+ }

+M = {}

+# ------------------------------------------------------- skirting + dado trunking

+def _skirting_and_trunking(scene):

+ """White skirting + white dado trunking (channel + proud lid) around the

+ room, broken at the two doors via the SHELL free spans."""

+ walls = ["Wall0", "Wall1", "Wall2", "Wall3", "Wall4", "Wall5", "Wall6",

+ "Wall7", "Wall8", "Wall10", "Wall11", "Wall12"]

+ trunk, skirt = [], []

+ for wnm in walls:

+ for k, (a, b) in enumerate(scene._wall_free_spans(wnm)):

+ u, w = (a + b) / 2.0, b - a

+ if w < 0.04:

+ continue

+ trunk.append(_wall_box(wnm, u, 0.90, w, 0.10, 0.045, M["white_pvc"],

+ name=f"Trunking0_{wnm}_ch{k}"))

+ trunk.append(_wall_box(wnm, u, 0.90, w, 0.082, 0.016, M["white_pvc"],

+ proud=0.045, name=f"Trunking0_{wnm}_lid{k}"))

+ skirt.append(_wall_box(wnm, u, 0.05, w, 0.10, 0.015, M["white_pvc"],

+ name=f"Skirting0_{wnm}_{k}"))

+ group_fixture("Trunking0", "cable_trunking", trunk)

+ group_fixture("Skirting0", "skirting", skirt)

+def _socket(idx, wall, u, z=0.90):

+ """Trunking-mounted double socket = box body on the lid + 2 raised outlets."""

+ parts = [_wall_box(wall, u, z, 0.148, 0.088, 0.030, M["socket"], proud=0.061,

+ name=f"Socket{idx}_body")]

+ for k, du in enumerate((-0.034, 0.034)):

+ parts.append(_wall_box(wall, u + du, z, 0.038, 0.044, 0.008, M["socket"],

+ proud=0.091, name=f"Socket{idx}_outlet{k}"))

+ return group_fixture(f"Socket{idx}", "socket", parts)

+def _whiteboard(idx, wall, u0, u1, z0, z1, eraser_u=None, marker_u=None):

+ """Wall-hung whiteboard = 4 alu frame bars + near-flush face + pen tray

+ (base + lip) + optional eraser/marker sitting on the tray."""

+ parts = []

+ uc, zc = (u0 + u1) / 2, (z0 + z1) / 2

+ w, h = u1 - u0, z1 - z0

+ fb = 0.032

+ parts.append(_wall_box(wall, uc, zc, w - 0.05, h - 0.05, 0.014, M["board"],

+ proud=0.016, name=f"Whiteboard{idx}_face"))

+ parts.append(_wall_box(wall, uc, z1 - fb / 2, w, fb, 0.028, M["alu"], proud=0.012,

+ name=f"Whiteboard{idx}_bar_top"))

+ parts.append(_wall_box(wall, uc, z0 + fb / 2, w, fb, 0.028, M["alu"], proud=0.012,

+ name=f"Whiteboard{idx}_bar_bot"))

+ parts.append(_wall_box(wall, u0 + fb / 2, zc, fb, h - 2 * fb, 0.028, M["alu"],

+ proud=0.012, name=f"Whiteboard{idx}_bar_l"))

+ parts.append(_wall_box(wall, u1 - fb / 2, zc, fb, h - 2 * fb, 0.028, M["alu"],

+ proud=0.012, name=f"Whiteboard{idx}_bar_r"))

+ parts.append(_wall_box(wall, uc, z0 - 0.028, w * 0.9, 0.02, 0.09, M["alu"],

+ proud=0.008, name=f"Whiteboard{idx}_tray"))

+ parts.append(_wall_box(wall, uc, z0 - 0.008, w * 0.9, 0.038, 0.014, M["alu"],

+ proud=0.092, name=f"Whiteboard{idx}_tray_lip"))

+ if eraser_u is not None:

+ parts.append(_wall_box(wall, eraser_u, z0 - 0.012, 0.11, 0.04, 0.055, M["red"],

+ proud=0.022, name=f"Whiteboard{idx}_eraser"))

+ if marker_u is not None:

+ parts.append(_wall_box(wall, marker_u, z0 - 0.03, 0.12, 0.016, 0.016,

+ M["black"], proud=0.03, name=f"Whiteboard{idx}_marker"))

+ return group_fixture(f"Whiteboard{idx}", "whiteboard", parts)

+# --------------------------------------------------------------------- Wall0

+def _fixtures_wall0():

+ s, d, n, L = _wall_frame2("Wall0")

+ # grey steel conduit near the ceiling, saddle clips + a junction box; the

+ # run continues around the Wall8 chamfer to Wall1 (Conduit1)

+ parts = [_wall_box("Wall0", L / 2, 2.78, L, 0.034, 0.034, M["conduit"],

+ proud=0.012, name="Conduit0_pipe")]

+ u = 0.45

+ k = 0

+ while u < L - 0.2:

+ parts.append(_wall_box("Wall0", u, 2.78, 0.05, 0.048, 0.044, M["conduit"],

+ proud=0.008, name=f"Conduit0_clip{k}"))

+ u += 0.75

+ k += 1

+ parts.append(_wall_box("Wall0", 2.58, 2.78, 0.11, 0.09, 0.055, M["white_pvc"],

+ proud=0.006, name="Conduit0_junction"))

+ s8, d8, n8, L8 = _wall_frame2("Wall8")

+ parts.append(_wall_box("Wall8", L8 / 2, 2.78, L8 + 0.1, 0.034, 0.034,

+ M["conduit"], proud=0.012, name="Conduit0_pipe_w8"))

+ group_fixture("Conduit0", "conduit", parts)

+ # red fire-alarm call point + small white sounder base beside the junction

+ al = [

+ _wall_box("Wall0", 2.58, 2.55, 0.092, 0.092, 0.05, M["red"],

+ name="FireAlarm0_box"),

+ _wall_box("Wall0", 2.58, 2.55, 0.055, 0.05, 0.012, M["clockface"],

+ proud=0.05, name="FireAlarm0_glass"),

+ _wall_box("Wall0", 2.32, 2.46, 0.10, 0.10, 0.045, M["white_pvc"],

+ name="FireAlarm0_sounder"),

+ ]

+ group_fixture("FireAlarm0", "fire_alarm", al)

+ # white AC / vent unit high on the WEST end: body + recessed centre panel +

+ # two side louvre columns + top grille slats + drain kit below-right

+ acu, acz = 2.95, 2.11 # centre u / z ; 0.81 x 0.58 body

+ parts = [_wall_box("Wall0", acu, acz, 0.81, 0.58, 0.20, M["white_pvc"],

+ name="AC0_body"),

+ _wall_box("Wall0", acu, acz + 0.01, 0.40, 0.38, 0.012, M["grille"],

+ proud=0.20, name="AC0_panel")]

+ for side, su in ((0, acu - 0.315), (1, acu + 0.315)):

+ parts.append(_wall_box("Wall0", su, acz, 0.15, 0.50, 0.008, M["grille_dark"],

+ proud=0.198, name=f"AC0_louvre_back{side}"))

+ for i in range(9):

+ parts.append(_wall_box("Wall0", su, acz - 0.22 + i * 0.052, 0.14, 0.022,

+ 0.03, M["grille"], proud=0.202,

+ name=f"AC0_louvre{side}_{i}"))

+ parts.append(_wall_box("Wall0", acu, acz - 0.245, 0.66, 0.09, 0.008,

+ M["grille_dark"], proud=0.198, name="AC0_bot_back"))

+ for i in range(11):

+ parts.append(_wall_box("Wall0", acu - 0.30 + i * 0.06, acz - 0.245, 0.024,

+ 0.09, 0.028, M["grille"], proud=0.202,

+ name=f"AC0_bot_slat{i}"))

+ for i in range(6):

+ parts.append(_wall_box("Wall0", acu - 0.30 + i * 0.12, acz + 0.245, 0.10,

+ 0.05, 0.035, M["grille"], proud=0.195,

+ name=f"AC0_top_slat{i}"))

+ parts.append(_wall_box("Wall0", acu + 0.33, acz - 0.36, 0.035, 0.14, 0.035,

+ M["pipe"], proud=0.02, name="AC0_drain"))

+ parts.append(_wall_box("Wall0", acu + 0.42, acz - 0.47, 0.09, 0.07, 0.05,

+ M["white_pvc"], proud=0.01, name="AC0_drain_box"))

+ group_fixture("AC0", "ac_unit", parts)

+ # trunking-mounted sockets on the east half (mostly behind the mobile board)

+ _socket(0, "Wall0", 1.25)

+ _socket(1, "Wall0", 1.55)

+ _socket(2, "Wall0", 1.85)

+ _socket(3, "Wall0", 2.15)

+ # twin white heating pipes along the base (photo: west half, running to the

+ # Wall8 corner), with fixing clips

+ parts = []

+ for j, pz in enumerate((0.135, 0.205)):

+ parts.append(_wall_box("Wall0", L / 2, pz, L, 0.032, 0.032, M["pipe"],

+ proud=0.02, name=f"Pipes0_run{j}"))

+ parts.append(_wall_box("Wall8", L8 / 2, pz, L8 + 0.08, 0.032, 0.032,

+ M["pipe"], proud=0.02, name=f"Pipes0_w8_{j}"))

+ u = 0.6

+ k = 0

+ while u < L - 0.3:

+ parts.append(_wall_box("Wall0", u, 0.17, 0.045, 0.135, 0.03, M["pipe"],

+ proud=0.015, name=f"Pipes0_clip{k}"))

+ u += 1.1

+ k += 1

+ group_fixture("Pipes0", "pipe", parts)

+ # freestanding whiteboard standing just off the east half of Wall0,

+ # slightly yawed (frames 55/57): legs + frame + face + tray

+ yaw = GRID_YAW + 7.0

+ xd, yd = _yaw_dirs(yaw)

+ c = s + d * 1.90 + n * 0.32

+ cx, cy = c.x, c.y

+ def _wb(name, dx, z, sx, sy, sz, mat):

+ return _mk_box(name, (cx + xd.x * dx - yd.x * 0.0, cy + xd.y * dx, FLOOR_Z + z),

+ xd, sx, yd, sy, sz, mat)

+ parts = [

+ _wb("WhiteboardM0_face", 0.0, 1.22, 1.32, 0.018, 1.52, M["board"]),

+ _wb("WhiteboardM0_bar_top", 0.0, 1.985, 1.38, 0.03, 0.035, M["alu"]),

+ _wb("WhiteboardM0_bar_bot", 0.0, 0.455, 1.38, 0.03, 0.035, M["alu"]),

+ _wb("WhiteboardM0_bar_l", -0.675, 1.22, 0.035, 0.03, 1.50, M["alu"]),

+ _wb("WhiteboardM0_bar_r", 0.675, 1.22, 0.035, 0.03, 1.50, M["alu"]),

+ _wb("WhiteboardM0_leg_l", -0.62, 0.24, 0.04, 0.05, 0.48, M["dark"]),

+ _wb("WhiteboardM0_leg_r", 0.62, 0.24, 0.04, 0.05, 0.48, M["dark"]),

+ _wb("WhiteboardM0_foot_l", -0.62, 0.02, 0.05, 0.44, 0.04, M["dark"]),

+ _wb("WhiteboardM0_foot_r", 0.62, 0.02, 0.05, 0.44, 0.04, M["dark"]),

+ ]

+ tray = _mk_box("WhiteboardM0_tray",

+ (cx - yd.x * 0.04, cy - yd.y * 0.04, FLOOR_Z + 0.43),

+ xd, 0.80, yd, 0.06, 0.018, M["alu"])

+ parts.append(tray)

+ group_fixture("WhiteboardM0", "whiteboard", parts)

+# --------------------------------------------------------------------- Wall1

+def _fixtures_wall1():

+ s, d, n, L = _wall_frame2("Wall1")

+ # conduit run near the ceiling + round white junction box at the north end

+ parts = [_wall_box("Wall1", L / 2, 2.72, L, 0.034, 0.034, M["conduit"],

+ proud=0.012, name="Conduit1_pipe")]

+ u = 0.5

+ k = 0

+ while u < L - 0.2:

+ parts.append(_wall_box("Wall1", u, 2.72, 0.05, 0.048, 0.044, M["conduit"],

+ proud=0.008, name=f"Conduit1_clip{k}"))

+ u += 0.75

+ k += 1

+ parts.append(_wall_box("Wall1", 3.05, 2.72, 0.09, 0.09, 0.05, M["white_pvc"],

+ proud=0.006, name="Conduit1_junction"))

+ group_fixture("Conduit1", "conduit", parts)

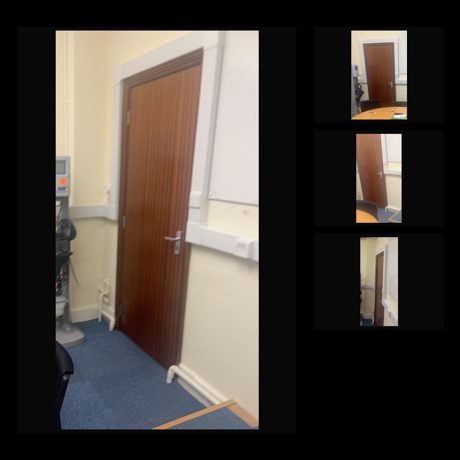

+ # big wall-hung whiteboard right of the door, on a white mounting sill

+ _whiteboard(1, "Wall1", 1.25, 3.25, 1.22, 2.26)

+ sill = [_wall_box("Wall1", 2.25, 1.16, 2.15, 0.12, 0.055, M["white_pvc"],

+ name="Whiteboard1_sill")]

+ group_fixture("WhiteboardSill0", "sill", sill)

+ # trunking-mounted sockets under the board (photo: a row of 5)

+ for i, u in enumerate((1.55, 1.85, 2.15, 2.45, 2.75)):

+ _socket(4 + i, "Wall1", u)

+ # blue-felt pinboard in a beech frame leaning LOW against the wall

+ parts = []

+ pw, ph, fb = 1.75, 1.15, 0.045

+ uc = 2.40

+ parts.append(_lean_box("Wall1", uc, ph / 2, pw - 2 * fb, ph - 2 * fb, 0.02,

+ M["felt"], 52.0, gap=0.03, name="PinBoard0_felt"))

+ parts.append(_lean_box("Wall1", uc, ph - fb / 2, pw, fb, 0.055, M["wood"],

+ 52.0, gap=0.025, name="PinBoard0_frame_top"))

+ parts.append(_lean_box("Wall1", uc, fb / 2, pw, fb, 0.055, M["wood"],

+ 52.0, gap=0.025, name="PinBoard0_frame_bot"))

+ parts.append(_lean_box("Wall1", uc - pw / 2 + fb / 2, ph / 2, fb, ph - 2 * fb,

+ 0.055, M["wood"], 52.0, gap=0.025,

+ name="PinBoard0_frame_l"))

+ parts.append(_lean_box("Wall1", uc + pw / 2 - fb / 2, ph / 2, fb, ph - 2 * fb,

+ 0.055, M["wood"], 52.0, gap=0.025,

+ name="PinBoard0_frame_r"))

+ group_fixture("PinBoard0", "notice_board", parts)

+# --------------------------------------------------------------------- Wall2

+def _fixtures_wall2():

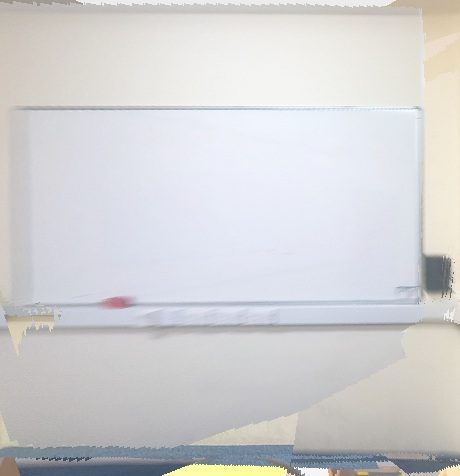

+ # near-full-width whiteboard, eraser + marker on the tray (stitch)

+ _whiteboard(2, "Wall2", 0.10, 2.65, 1.20, 2.43, eraser_u=0.55, marker_u=1.05)

+# --------------------------------------------------------------------- Wall3

+def _fixtures_wall3():

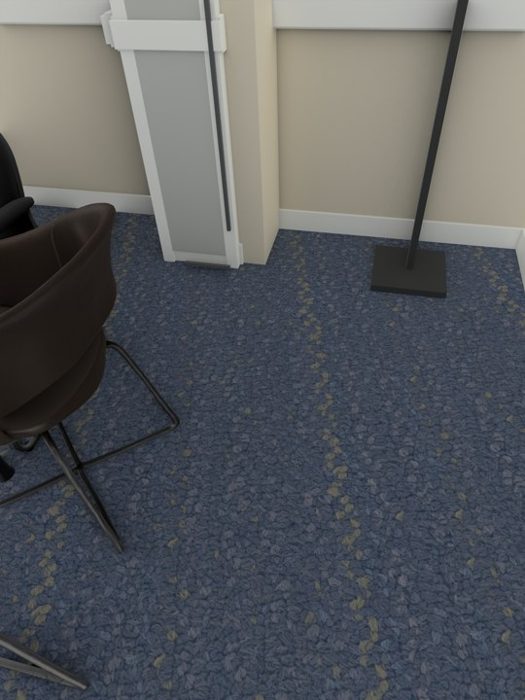

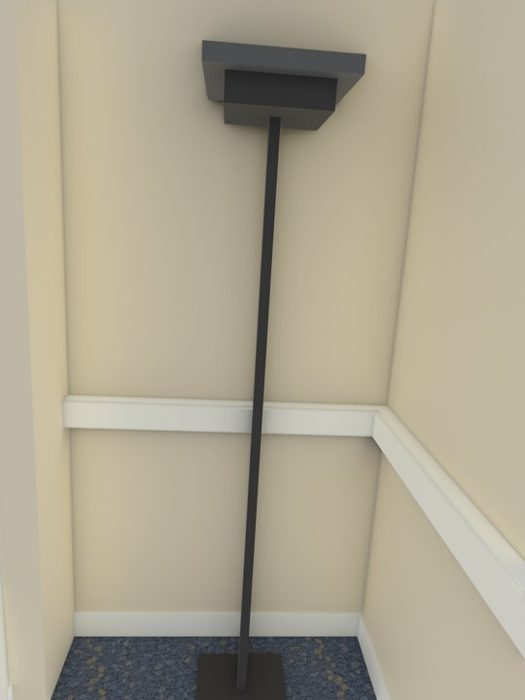

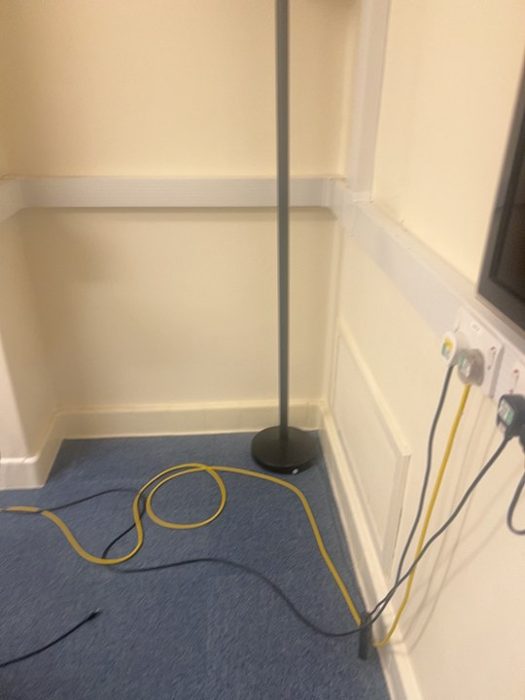

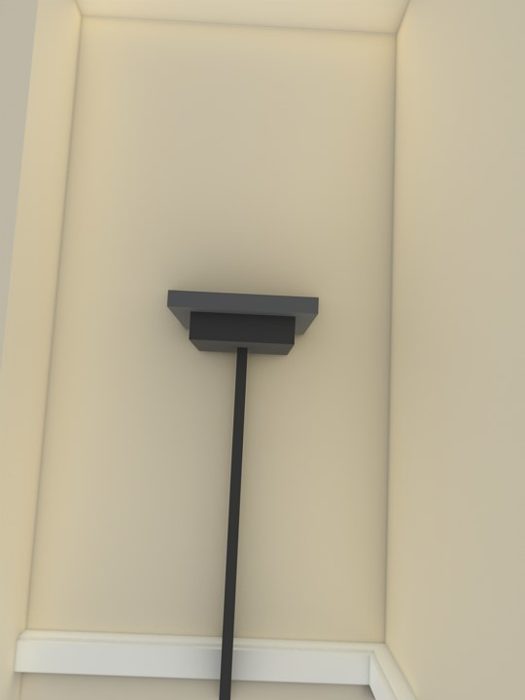

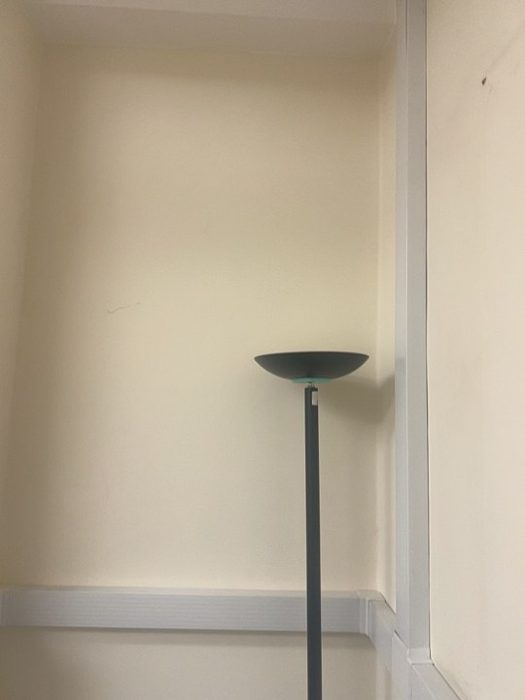

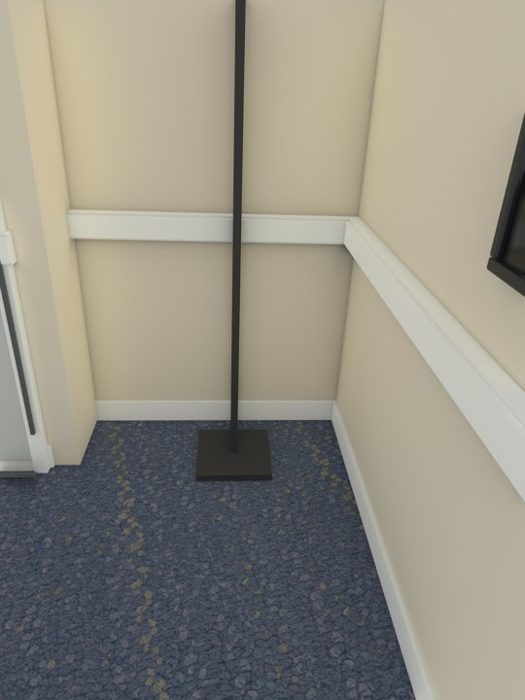

+ # black torchiere floor lamp standing in front of the wall

+ s, d, n, L = _wall_frame2("Wall3")

+ c = s + d * 0.72 + n * 0.28

+ xd, yd = _yaw_dirs(GRID_YAW)

+ parts = [

+ _mk_box("FloorLamp0_base", (c.x, c.y, FLOOR_Z + 0.015), xd, 0.30, yd, 0.30,

+ 0.03, M["black"]),

+ _mk_box("FloorLamp0_pole", (c.x, c.y, FLOOR_Z + 0.92), xd, 0.028, yd, 0.028,

+ 1.78, M["black"]),

+ _mk_box("FloorLamp0_bowl", (c.x, c.y, FLOOR_Z + 1.845), xd, 0.26, yd, 0.26,

+ 0.07, M["black"]),

+ _mk_box("FloorLamp0_bowl_rim", (c.x, c.y, FLOOR_Z + 1.9), xd, 0.36, yd,

+ 0.36, 0.04, M["dark"]),

+ ]

+ group_fixture("FloorLamp0", "floor_lamp", parts)

+# --------------------------------------------------------------------- Wall7

+def _fixtures_wall7():

+ # white panelled boxed-in services cupboard front on the alcove face:

+ # proud frame border + inset panel + small cylindrical door holder

+ parts = [

+ _wall_box("Wall7", 0.185, 1.075, 0.34, 2.15, 0.035, M["white_pvc"],

+ name="Panel0_carcass"),

+ _wall_box("Wall7", 0.185, 1.075, 0.26, 2.03, 0.012, M["grille"],

+ proud=0.035, name="Panel0_inset"),

+ _wall_box("Wall7", 0.185, 2.13, 0.34, 0.05, 0.048, M["white_pvc"],

+ name="Panel0_frame_top"),

+ _wall_box("Wall7", 0.035, 1.075, 0.05, 2.15, 0.048, M["white_pvc"],

+ name="Panel0_frame_l"),

+ _wall_box("Wall7", 0.335, 1.075, 0.05, 2.15, 0.048, M["white_pvc"],

+ name="Panel0_frame_r"),

+ _wall_box("Wall7", 0.28, 1.32, 0.05, 0.11, 0.055, M["white_pvc"],

+ proud=0.048, name="Panel0_holder"),

+ ]

+ group_fixture("Panel0", "panel", parts)

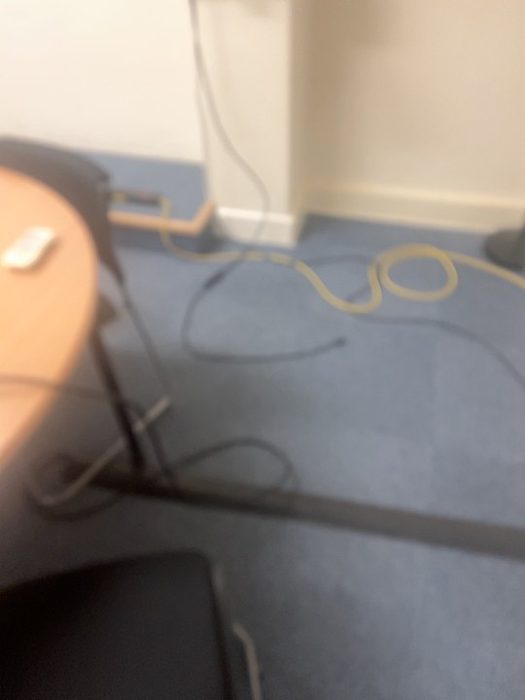

+ # loose grey cable dropping to the floor at the corner

+ cab = [

+ _wall_box("Wall7", 0.34, 1.45, 0.014, 2.5, 0.014, M["dark"], proud=0.055,

+ name="Cable0_drop"),

+ _wall_box("Wall7", 0.25, 0.06, 0.20, 0.014, 0.014, M["dark"], proud=0.12,

+ name="Cable0_floor"),

+ ]

+ group_fixture("Cable0", "cable", cab)

+# --------------------------------------------------------------------- Wall8

+def _fixtures_wall8():

+ # boxed vertical white waste pipe running full height at the chamfer corner

+ parts = [_wall_box("Wall8", 0.20, WALL_H / 2, 0.055, WALL_H, 0.055, M["pipe"],

+ proud=0.012, name="Pipe0_riser")]

+ for k, z in enumerate((0.45, 1.55, 2.5)):

+ parts.append(_wall_box("Wall8", 0.20, z, 0.075, 0.04, 0.045, M["pipe"],

+ proud=0.008, name=f"Pipe0_bracket{k}"))

+ group_fixture("Pipe0", "pipe", parts)

+# --------------------------------------------------------------------- Wall12

+def _fixtures_wall12():

+ # round wall clock under the beam end, left of the door

+ ck = [

+ _wall_box("Wall12", 2.88, 2.40, 0.30, 0.30, 0.035, M["black"],

+ name="Clock0_rim"),

+ _wall_box("Wall12", 2.88, 2.40, 0.255, 0.255, 0.012, M["clockface"],

+ proud=0.035, name="Clock0_face"),

+ _wall_box("Wall12", 2.88, 2.435, 0.018, 0.085, 0.006, M["black"],

+ proud=0.047, name="Clock0_hand_m"),

+ _wall_box("Wall12", 2.905, 2.395, 0.06, 0.016, 0.006, M["black"],

+ proud=0.047, name="Clock0_hand_h"),

+ ]

+ group_fixture("Clock0", "clock", ck)

+ # sockets on the trunking under the television

+ _socket(9, "Wall12", 1.75)

+ _socket(10, "Wall12", 2.05)

+# --------------------------------------------------------------------- ceiling

+def _fixtures_ceiling():

+ # boxed cream downstand beam parallel to Wall0 (0.9 m into the room),

+ # spanning Wall12 -> Wall1; the projector hangs off it

+ parts = [_free_box("Beam0_body", -1.801, -0.291, 2.82, 4.75, 0.25, 0.30,

+ M["cream"])]

+ parts.append(_free_box("Beam0_arris", -1.801, -0.291, 2.665, 4.75, 0.27, 0.02,

+ M["cream"]))

+ group_fixture("Beam0", "beam", parts)

+ # ceiling projector on a pole mount off the beam, lens facing west (the

+ # Wall1 whiteboard is the projection surface)

+ xd, yd = _yaw_dirs(GRID_YAW)

+ px, py = -0.221, -0.744

+ def _pj(name, dx, z, sx, sy, sz, mat):

+ return _mk_box(name, (px + xd.x * dx, py + xd.y * dx, FLOOR_Z + z),

+ xd, sx, yd, sy, sz, mat)

+ parts = [

+ _pj("Projector0_plate", 0.0, 2.655, 0.16, 0.16, 0.02, M["black"]),

+ _pj("Projector0_pole", 0.0, 2.53, 0.045, 0.045, 0.25, M["black"]),

+ _pj("Projector0_knuckle", 0.0, 2.395, 0.09, 0.09, 0.05, M["black"]),

+ _pj("Projector0_body", 0.0, 2.31, 0.40, 0.30, 0.12, M["white_pvc"]),

+ _pj("Projector0_lens", 0.17, 2.30, 0.07, 0.09, 0.07, M["black"]),

+ _pj("Projector0_vent", -0.185, 2.31, 0.03, 0.22, 0.08, M["dark"]),

+ ]

+ group_fixture("Projector0", "projector", parts)

+ # two surface-mounted twin-tube fluorescents, long axis parallel to the beam

+ for i, (cx, cy) in enumerate(((-2.2, 0.65), (-0.75, -0.95))):

+ parts = [

+ _free_box(f"Light{i}_body", cx, cy, WALL_H - 0.02, 1.55, 0.30, 0.04,

+ M["white_pvc"]),

+ _free_box(f"Light{i}_diffuser", cx, cy, WALL_H - 0.075, 1.50, 0.28,

+ 0.07, M["led"]),

+ _free_box(f"Light{i}_cap_a", cx + xd.x * 0.75, cy + xd.y * 0.75,

+ WALL_H - 0.055, 0.05, 0.28, 0.09, M["white_pvc"]),

+ _free_box(f"Light{i}_cap_b", cx - xd.x * 0.75, cy - xd.y * 0.75,

+ WALL_H - 0.055, 0.05, 0.28, 0.09, M["white_pvc"]),

+ ]

+ group_fixture(f"Light{i}", "ceiling_light", parts)

+ # smoke detector near the beam

+ sd = [

+ _free_box("Smoke0_base", -0.5, -0.35, WALL_H - 0.015, 0.11, 0.11, 0.03,

+ M["white_pvc"]),

+ _free_box("Smoke0_dome", -0.5, -0.35, WALL_H - 0.045, 0.075, 0.075, 0.035,

+ M["white_pvc"]),

+ ]

+ group_fixture("Smoke0", "smoke_detector", sd)

+# --------------------------------------------------------------------- stage

+def harness_stage(scene):

+ """Materials on every surface, the missing ceiling, then the wall fixtures."""

+ global M

+ M = _mats()

+ cream = _pbr("mat_wall_cream", "#ede5cf", rough=0.92)

+ for nm in SHELL["walls"]:

+ ob = bpy.data.objects.get(nm)

+ if ob is not None:

+ ob.data.materials.clear()

+ ob.data.materials.append(cream)

+ floor = bpy.data.objects.get("Floor0")

+ if floor is not None:

+ floor.data.materials.clear()

+ floor.data.materials.append(_tex_pbr("mat_floor_carpet", "floor_carpet",

+ metres=1.6))

+ _build_ceiling(_pbr("mat_ceiling_cream", "#f5f0e2", rough=0.95))

+ _skirting_and_trunking(scene)

+ _fixtures_wall0()

+ _fixtures_wall1()

+ _fixtures_wall2()

+ _fixtures_wall3()

+ _fixtures_wall7()

+ _fixtures_wall8()

+ _fixtures_wall12()

+ _fixtures_ceiling()

+ print(" harness stage: materials + ceiling + fixtures built")

if __name__ in ("__main__", "room_py_exec"): # SHELL is now defined above

ROOM = main()

③ QC pass(es)

qc · qc_20260720_074632.log

•STEP #1

I'll start by reading Room.md and Room.py in full, then check the stitches and references.

⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen⌘ Bash📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

•STEP #2

Wall1 has a solid dark wood door; Wall12 has the TV, clock, and a glazed-looking door at its edge. Now the door/table/TV build code:

⌘ Bash· Grep📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen

👁INSPECT #3

Wall1 door is a flush leaf, articulated, no glazing, no closer modeled. The stitch shows something dark at the top of that door — let me zoom in to ch

⌘ Bash📄 Read /tmp/w1_doortop.png📄 Read /tmp/w12_door.png📄 Read /scratch2/code/LiteReality_to_share/agen📄 Read /scratch2/code/LiteReality_to_share/agen🔧 ToolSearch select:mcp__cap__render🖼 render room⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash📄 Read /tmp/qc_render/scene_frame_00000.png📄 Read /tmp/qc_render/scene_frame_00014.png📄 Read /tmp/qc_render/scene_frame_00028.png📄 Read /tmp/qc_render/scene_frame_00044.png⌘ Bash📄 Read /tmp/qc_ref/Wall1_compare.png📄 Read /tmp/qc_ref/Wall12_compare.png

✏️EDIT #4

Wall1 matches well (door, whiteboard, sockets, conduit). Wall12 fixtures render in place; the TV doesn't appear in the ortho, so let me verify it with

⌘ Bash📄 Read /tmp/qc_tv/Television0_frame_00021.png📄 Read /tmp/qc_table/Table0_frame_00044.png✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen✏️ Edit /scratch2/code/LiteReality_to_share/agen

•STEP #5

Both edits are in. Now re-render to verify the rebuild picks them up — the Wall1 ortho should now show the closer at the door head, and frame 21 confi

⌘ Bash📄 Read /tmp/qc_ref2/Wall1_compare.png

•STEP #6

No closer visible — the door GLB likely wasn't recompiled (cache stamp). Let me check the rebuild logic:

· Grep⌘ Bash⌘ Bash⌘ Bash

•STEP #7

Hardlinked — the edits are visible in both trees. Now force the door GLBs to rebuild:

⌘ Bash📄 Read /tmp/qc_ref3/Wall1_compare.png

•STEP #8

Hard to tell at this scale. Let me check whether the scene actually recompiled and zoom into the rendered door top:

⌘ Bash

•STEP #9

The door GLBs regenerated (Object/ at 07:59) but the assembled Room.blend/glb are older — the renderer reused the stale assembly. Let me see what trig

· Grep⌘ Bash⌘ Bash

•STEP #10

The stamp only hashes Room.py, so object.py edits don't invalidate it. Deleting the stamp forces reassembly:

⌘ Bash⌘ Bash📄 Read /tmp/w1_new_doortop.png📄 Read /tmp/w12_new_door.png⌘ Bash📄 Read /tmp/w1_new_doortop2.png⌘ Bash⌘ Bash⌘ Bash

•STEP #11

Both doors regenerated and the room reassembled. Re-rendering Wall1 to verify the closer:

⌘ Bash📄 Read /tmp/w1_final_doortop.png

•STEP #12

Still not visible. The door front should face the room. Let me check whether the render actually used the new assembly:

⌘ Bash⌘ Bash

✏️EDIT #13

The closer IS in the GLB (leaf depth now extends to 0.10 m proud — the closer body). The renderer must be using a cached scene. Let me check how `ref`

⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash📄 Read /tmp/w1_v6_doortop.png📄 Read /tmp/w12_v6_door.png⌘ Bash✏️ Write /home/zelda/zh340/.claude/projects/-scra

•STEP #14

You're out of usage credits. Run /usage-credits to keep using Fable 5 or /model to switch models.

opus · qc_opus_20260720_082943.log

•STEP #1

👁INSPECT #2

Both doors match their references well and are already articulated. Now let me render to verify the assembled state.

🔧 ToolSearch select:mcp__cap__render🖼 render room⌘ Bash⌘ Bash⌘ Bash⌘ Bash⌘ Bash📄 Read /tmp/qc_scene/scene_frame_00010.png📄 Read /tmp/qc_scene/scene_frame_00025.png📄 Read /tmp/qc_scene/scene_frame_00040.png⌘ Bash📄 Read /tmp/qc_door0/Door0_frame_00050.png📄 Read /tmp/qc_door1/Door1_frame_00000.png

•STEP #3

Let me verify the door glass materials are actually transmissive in the built GLBs (glTF can drop node setups).

⌘ Bash

•STEP #4

Let me get a proper view of the doors to confirm they read as real open doorways. Let me find door-facing frames.

⌘ Bash📄 Read /tmp/qc_w1/Wall1_frame_00020.png📄 Read /tmp/qc_w12/Wall12_frame_00005.png📄 Read /tmp/qc_w12/Wall12_frame_00045.png📄 Read /tmp/qc_w12/Wall12_frame_00030.png⌘ Bash📄 Read /tmp/qc_scene2/scene_frame_00058.png📄 Read /tmp/qc_scene2/scene_frame_00052.png

•STEP #5

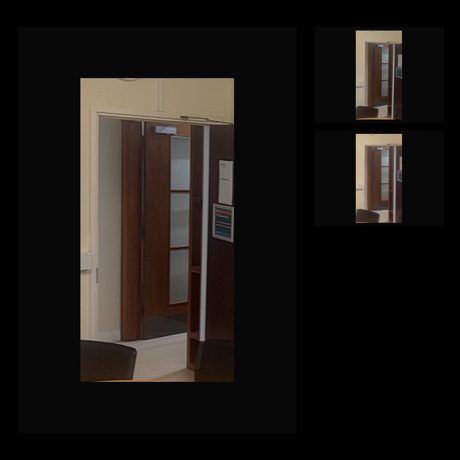

I still want to confirm Door1 (the walnut door with frosted glass panels) reads correctly in-scene. Let me render it as an object across candidate fra

⌘ Bash📄 Read /tmp/qc_d1b/Door1_frame_00058.png📄 Read /tmp/qc_d1b/Door1_frame_00056.png📄 Read /tmp/qc_d1b/Door1_frame_00057.png

•STEP #6

The scene is rendering with very high fidelity to the real photos across every surface. Let me do a final check on the two things most likely to hide

⌘ Bash

✏️EDIT #7

Everything checks out. Let me record the QC outcome in the existing scene memory.

📄 Read /home/zelda/zh340/.claude/projects/-scra✏️ Edit /home/zelda/zh340/.claude/projects/-scra

•STEP #8

## QC pass complete — no edits needed

## QC pass complete — no edits needed I read `Room.md` and `Room.py` in full, verified against the surface stitches and per-object references, and rendered the assembled scene from multiple frames (10, 40, 57, 58 + wall-focus on Wall1/Wall12 + object views of both doors). Every QC criterion is already satisfied by the existing authoring, so I made **zero code changes** — which is the right call given the instruction to preserve the authoring and not overwrite what's there. **What I checked, per surface / concern:** - **Openings (Door0 on Wall1, Door1 on Wall12)** — the only two openings; both are `type: "door"`, no windows anywhere. Both door GLBs are already articulated (revolute leaf, closed→open clip, hinge on the −X edge, opens toward −Y). In-scene they read as real doors set in their frames, not solid boxes. Both match their reference images (Door0 = flush reddish-brown veneer, white frame, right-hand lever, no glazing; Door1 = dark walnut with three stacked frosted vision panels, right bar-pull, cream frame). - **Glass** — Door1's vision panels use a transmissive frosted material (Transmission 0.80, roughness 0.42, IOR 1.45) — translucent/milky, not opaque, which correctly matches the *frosted* panels in the reference (clear glass would be *less* accurate). Door0 has no glazing, matching its reference. No opaque "glass" anywhere. - **Door closer** — Door1 has the overhead brushed-metal closer its reference shows, modelled as a static part on the frame; Door0's real door has no closer, and none is modelled. Correct. - **Windows / curtains / blinds** — none exist in this room, so the articulation/unification/daylight-card items are N/A. - **Wall fixtures vs openings** — skirting and dado trunking break at both doors via `_wall_free_spans`; sockets are all clear of the door spans. The Wall1 ceiling conduit and the Wall12 clock sit *above* the door heads (z ≈ 2.72 / 2.40 vs door tops 2.05 / 1.93), so they never intersect a swinging leaf. No fixture overlaps an opening. - **Materials & lighting** — ceiling is materialed (`mat_ceiling_cream`); the only emitters are the two real surface-mounted fluorescents; no invented lights. - **Objects vs reference** — Table0 (beech top, black round legs) and Television0 (black flatscreen) both match their references at a glance in-scene. The room already meets all "done when" conditions: all glass transparent, all openings open, no fixture over an opening, doors articulate, ceiling materialed, objects match references. Memory updated to record the clean QC result.
