Psi_2_seminar-Zhening — how it was made

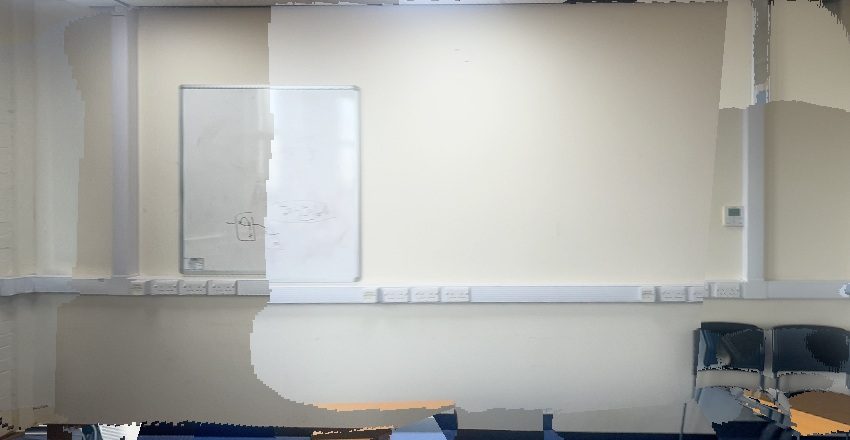

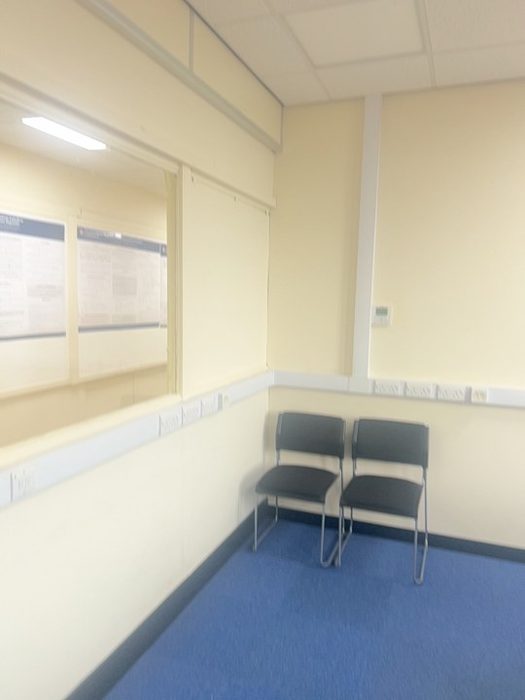

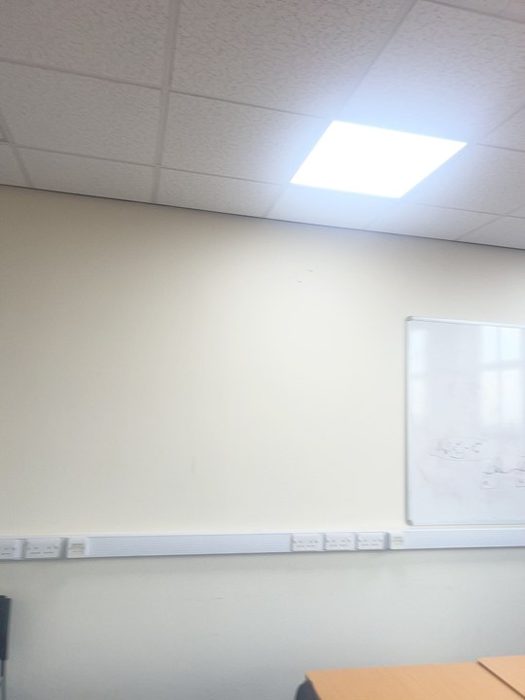

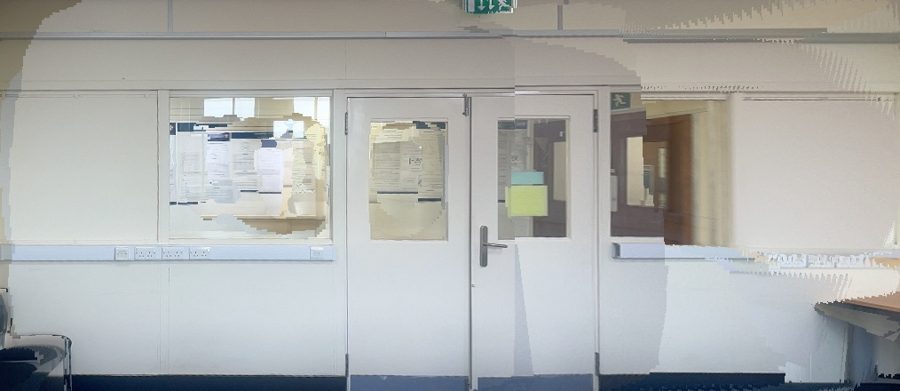

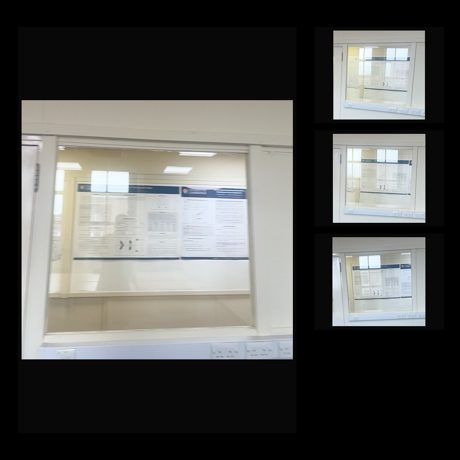

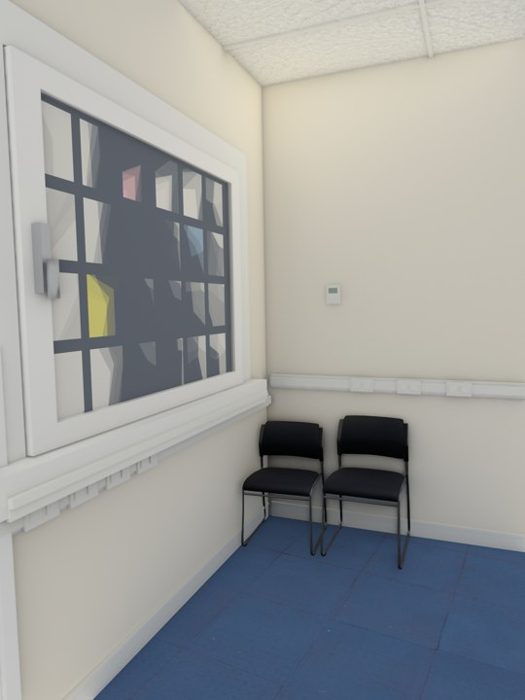

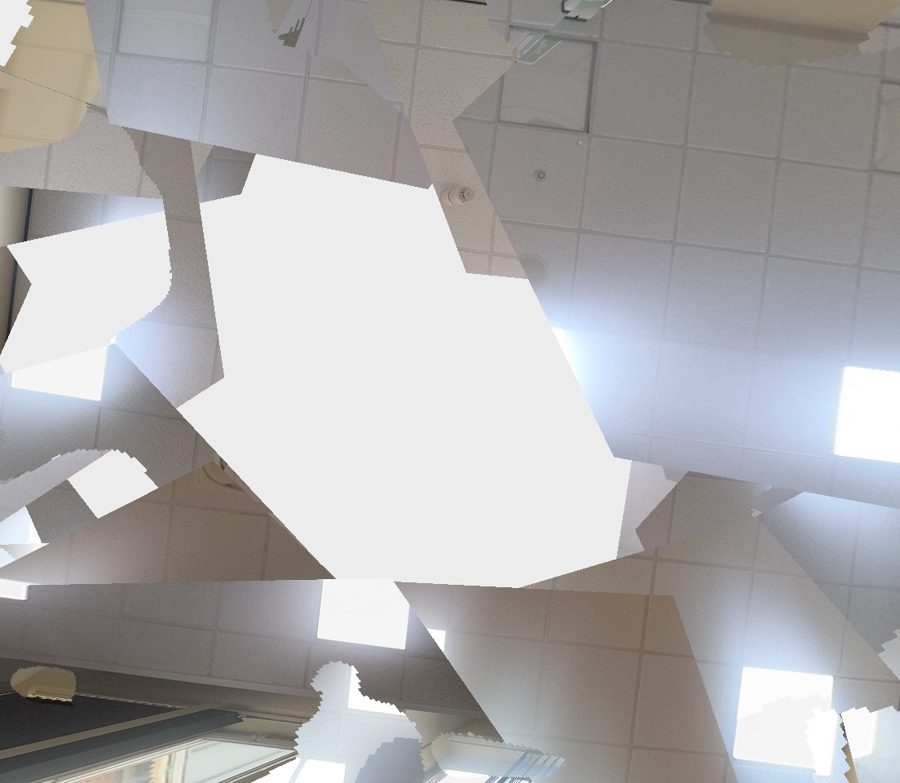

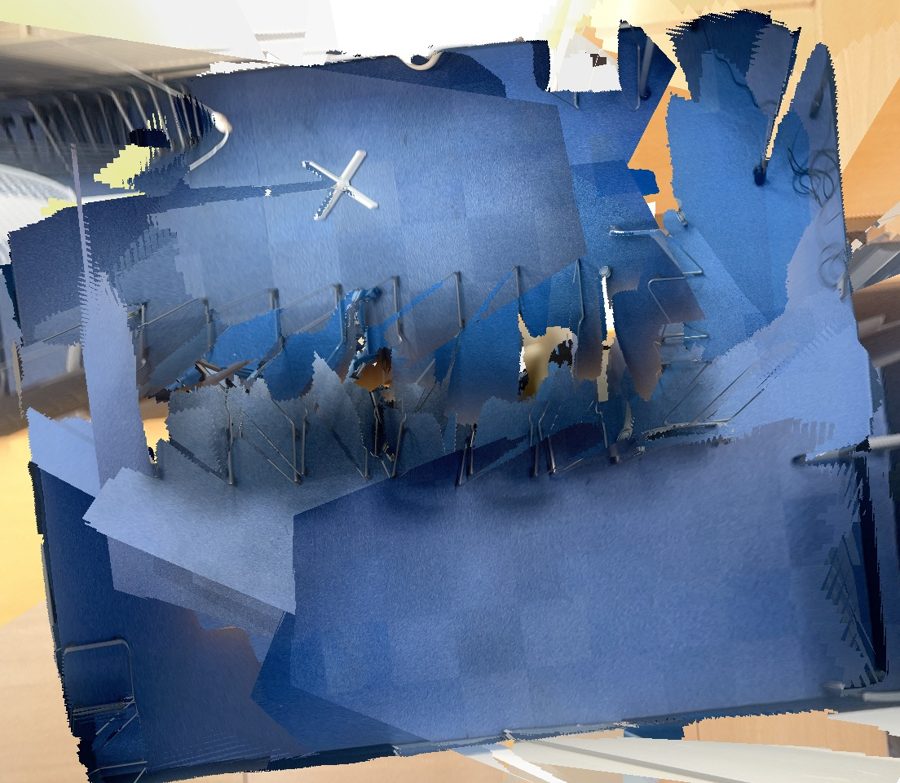

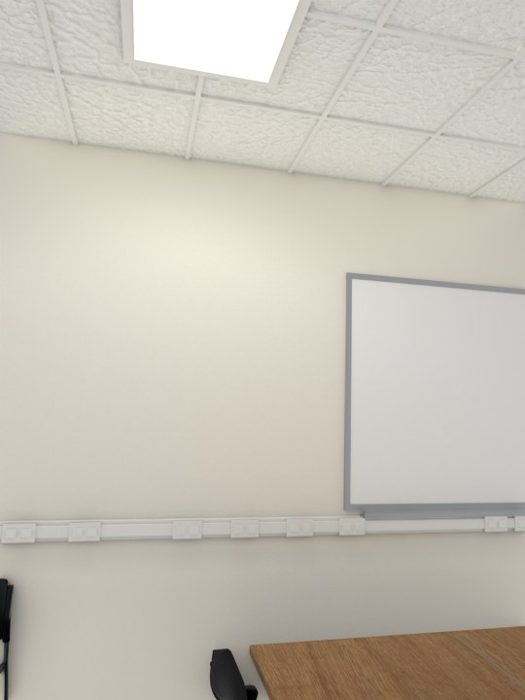

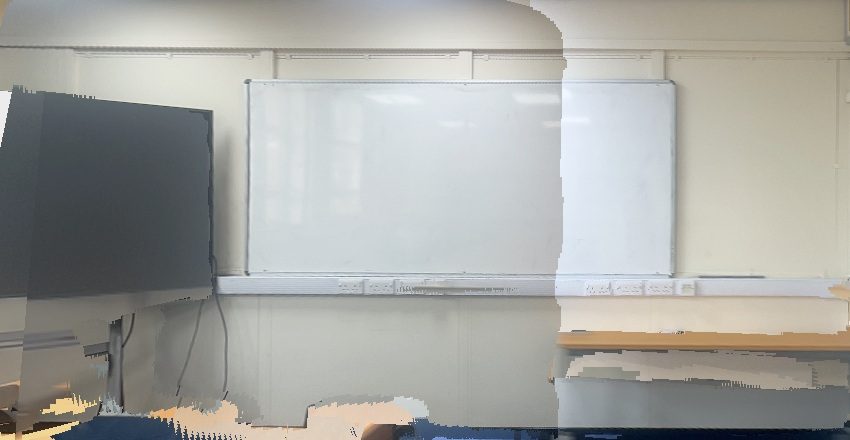

Done — `Room.py` now carries the full harness layer (structure fixes, materials, ceiling, and ~30 grouped multi-part fixtures), compiles, and rebuilds cleanly; every wall was render-verified against the stitches and capture frames over 10 iterations, with fixes applied after each look. **Shell structure corrections (evidence-based, in `SHELL`):** both internal windows on the door wall were badly under-sized by the scan — the real room has wide glazed corridor partitions on either side of the double door. `Window0` → offset 1.25 / width 1.55 / sill 1.0 / height 1.4, `Window1` → offset 4.95 / width 1.9 / sill 1.0 / height 1.4 (confirmed by frames 82/14/87). No furniture boxes were touched. **Materials:** blue carpet tiles (Poly Haven, recoloured; matches the real checkered blue carpet), faint whitewashed brick on Wall1 (pattern flattened to 0.22 — the wall is painted brick), cream paint on Walls 0/2/3, and a real ceiling: tile-textured prism + suspended T-bar grid + `CeilingLights0` (6 troffers, frame + emissive lens). A `_fix_dark_glass()` pass lightens the recon windows' near-black glass so they read as daylit. **Fixtures per wall** (each a named hide-as-a-unit group via `group_fixture`, every part wall-prefixed): - **Wall0 (door wall)** — `Trunking0` (channel+lid, broken at the door), `Socket0`/`Socket1` (faceplate + 2 raised outlets each), `WindowSill0` (board+lip under the partition), `ExitSign0` (2 drop rods + green emissive box above the door), `NoticeBoard0` (cork patch behind glass + 13 A4 sheets taped on the room side — behind-glass papers were invisible through the frosted GLB glass), `Skirting0` (board+lip, breaks at door). Verified frames 82/87 + ortho. - **Wall1 (brick window wall)** — `Trunking1`, `Socket2-4`, `WindowSill1-4`, `VBlind0-3` (headrail + slat loops: W4 closed @yaw 12°, W3 open stack, W2 ~35% drawn @45°, W5 open stack at end), `Radiator0` (back panel + 14-fin loop + top grille + end caps + 2 valves with pipe stubs), `Pipe0` (full-height boxed pipe + 3 clips), `PipeRun0` (twin flow/return pipes + brackets), `Skirting1`. Verified frames 4/27 + ortho. Note: Window5's GLB has a closed blind baked into the asset — matches the raw stitch, left as-is. - **Wall2** — `Whiteboard0` (back + gloss face + 4 aluminium bars + tray+lip; re-seated to u 3.42 after the rectified compare showed the raw stitch was mirrored), `Thermostat0` (plate + LCD + button at u 0.5), `Trunking2`, `Socket5-7`, `Skirting2`. Verified frames 7/39 + ortho. - **Wall3 ✓ [3/6] one-shot authoring · 50m20s ⊘ [4/6] per-object refinement — skipped (SKIP_REFINE=1) ⊘ [5/6] per-wall fixture refinement — skipped (REFINE_WALLS=0) ▶ [6/6] export three.js viewer (0 stages left) === RoomScene.build (blank) === shell <- SHELL(compact): 4 walls, 7 openings, 18 objects（无 usdz） thickened 4 walls outward to ~0.1 m cut 7/7 openings {'Door0': 'Wall0', 'Window0': 'Wall0', 'Window1': 'Wall0', 'Window2': 'Wall1', 'Window3': 'Wall1', 'Window4': 'Wall1', 'Window5': 'Wall1'} 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cube.002 14:17:51 | INFO: Blender create Mesh node Cube.007 14:17:51 | INFO: Blender create Mesh node Cube.012 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cube.007 14:17:51 | INFO: Blender create Mesh node Cube.013 14:17:51 | INFO: Blender create Mesh node Cube.006 14:17:51 | INFO: glTF import finished in 0.00s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cylinder 14:17:51 | INFO: Blender create Mesh node Cylinder.001 14:17:51 | INFO: Blender create Mesh node Cube.005 14:17:51 | INFO: Blender create Mesh node Cube.009 14:17:51 | INFO: Blender create Mesh node Cube.012 14:17:51 | INFO: Blender create Mesh node Cylinder.002 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cube.004 14:17:51 | INFO: glTF import finished in 0.00s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cube.017 14:17:51 | INFO: Blender create Mesh node Cube.005 14:17:51 | INFO: Blender create Mesh node Cube.013 14:17:51 | INFO: Blender create Mesh node Cube.014 14:17:51 | INFO: Blender create Mesh node Cube.015 14:17:51 | INFO: Blender create Mesh node Cube.016 14:17:51 | INFO: Blender create Mesh node Cube.004 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cube.008 14:17:51 | INFO: Blender create Mesh node Cube.009 14:17:51 | INFO: Blender create Mesh node Cube.017 14:17:51 | INFO: Blender create Mesh node Cube.007 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cylinder 14:17:51 | INFO: Blender create Mesh node Cube.006 14:17:51 | INFO: Blender create Mesh node Cube.007 14:17:51 | INFO: Blender create Mesh node Cube.005 14:17:51 | INFO: Blender create Mesh node Cube.012 14:17:51 | INFO: Blender create Mesh node Cube.004 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node Cube 14:17:51 | INFO: Blender create Mesh node Cube.011 14:17:51 | INFO: Blender create Mesh node Cube.012 14:17:51 | INFO: Blender create Mesh node Cube.026 14:17:51 | INFO: Blender create Mesh node Cube.010 14:17:51 | INFO: Blender create Mesh node Cube.005 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s 14:17:51 | INFO: Data are loaded, start creating Blender stuff 14:17:51 | INFO: Blender create Mesh node geometry_0 14:17:51 | INFO: glTF import finished in 0.01s placed 25 asset instances built 0 capture cameras indexed 30 objects, 0 cameras floor-grounded 0 visible piece(s) harness layer: materials + ceiling + fixtures built === ROOM SCENE (blank) === blind : VBlind0, VBlind1, VBlind2, VBlind3 ceiling : Ceiling0 ceiling_grid: CeilingGrid0 chair : Chair0, Chair1, Chair10, Chair11, Chair12, Chair13, Chair14, Chair15, Chair2, Chair3, Chair4, Chair5, Chair6, Chair7, Chair8, Chair9 door : Door0 floor : Floor0 light : CeilingLights0 noticeboard: NoticeBoard0 pipe : Pipe0, PipeRun0 radiator : Radiator0 rail : Rail0 sign : ExitSign0 sill : WindowSill0, WindowSill1, WindowSill2, WindowSill3, WindowSill4 skirting : Skirting0, Skirting1, Skirting2, Skirting3 socket : Socket0, Socket1, Socket2, Socket3, Socket4, Socket5, Socket6, Socket7, Socket8, Socket9 table : Table0, Table1 television: TV0 thermostat: Thermostat0 trunking : Trunking0, Trunking1, Trunking2, Trunking3 wall : Wall0, Wall1, Wall2, Wall3 whiteboard: Whiteboard0, Whiteboard1 window : Window0, Window1, Window2, Window3, Window4, Window5 placeable surfaces (top z): Table0 z=-0.631 center=[2.3025, -0.3011, -1.0016] Table1 z=-0.632 center=[-0.906, 1.2525, -1.002] cameras: none INFO Draco mesh compression is available, use library at /scratch2/zh340/blender-4.5.1-linux-x64/4.5/scripts/addons_core/io_scene_gltf2/libextern_draco.so 14:17:51 | INFO: Starting glTF 2.0 export 14:17:51 | INFO: Extracting primitive: Floor0 14:17:51 | INFO: Primitives created: 1 14:17:51 | INFO: Extracting primitive: Wall0 14:17:51 | INFO: Primitives created: 1 14:17:51 | INFO: Extracting primitive: Wall1 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: Wall2 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: Wall3 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: Ceiling0 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: Cube 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 3 14:17:52 | INFO: Extracting primitive: Cube.001 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 2 14:17:52 | INFO: Extracting primitive: Cube.002 14:17:52 | INFO: Primitives created: 3 14:17:52 | INFO: Extracting primitive: Cube.007 14:17:52 | INFO: Primitives created: 3 14:17:52 | INFO: Extracting primitive: Cube.012 14:17:52 | INFO: Primitives created: 3 14:17:52 | INFO: Extracting primitive: geometry_0 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: geometry_0.001 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: geometry_0.002 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: geometry_0.003 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: geometry_0.004 14:17:52 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:52 | INFO: Primitives created: 1 14:17:52 | INFO: Extracting primitive: geometry_0.005 14:17:53 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:53 | INFO: Primitives created: 1 14:17:53 | INFO: Extracting primitive: geometry_0.006 14:17:53 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:53 | INFO: Primitives created: 1 14:17:53 | INFO: Extracting primitive: geometry_0.007 14:17:53 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:53 | INFO: Primitives created: 1 14:17:53 | INFO: Extracting primitive: geometry_0.008 14:17:53 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:53 | INFO: Primitives created: 1 14:17:53 | INFO: Extracting primitive: geometry_0.009 14:17:53 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:53 | INFO: Primitives created: 1 14:17:53 | INFO: Extracting primitive: geometry_0.010 14:17:54 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:54 | INFO: Primitives created: 1 14:17:54 | INFO: Extracting primitive: geometry_0.011 14:17:54 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:54 | INFO: Primitives created: 1 14:17:54 | INFO: Extracting primitive: geometry_0.012 14:17:54 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:54 | INFO: Primitives created: 1 14:17:54 | INFO: Extracting primitive: geometry_0.013 14:17:54 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:54 | INFO: Primitives created: 1 14:17:54 | INFO: Extracting primitive: geometry_0.014 14:17:54 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:54 | INFO: Primitives created: 1 14:17:54 | INFO: Extracting primitive: geometry_0.015 14:17:55 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.003 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.004 14:17:55 | INFO: Primitives created: 3 14:17:55 | INFO: Extracting primitive: Cube.013 14:17:55 | INFO: Primitives created: 3 14:17:55 | INFO: Extracting primitive: Cube.006 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Plane 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.005 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cylinder 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cylinder.001 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.008 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.009 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.010 14:17:55 | INFO: Primitives created: 3 14:17:55 | INFO: Extracting primitive: Cylinder.002 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Plane.001 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.011 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.014 14:17:55 | INFO: Primitives created: 3 14:17:55 | INFO: Extracting primitive: Plane.002 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.015 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.017 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.016 14:17:55 | INFO: Primitives created: 2 14:17:55 | INFO: Extracting primitive: Cube.018 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.019 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.020 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.021 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.022 14:17:55 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Plane.003 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.023 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.024 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.025 14:17:55 | INFO: Primitives created: 2 14:17:55 | INFO: Extracting primitive: Cube.026 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.027 14:17:55 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Plane.004 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.028 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cylinder.003 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.029 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.030 14:17:55 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.031 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.032 14:17:55 | INFO: Primitives created: 3 14:17:55 | INFO: Extracting primitive: Cube.033 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Plane.005 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.034 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.035 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.036 14:17:55 | WARNING: More than one shader node tex image used for a texture. The resulting glTF sampler will behave like the first shader node tex image. 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.037 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.038 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Cube.039 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA6 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridA7 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB6 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB7 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB8 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_gridB9 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Trunking0_ch0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Trunking0_ch1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Trunking0_lid0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Trunking0_lid1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out30 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_out31 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket0_pl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out30 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_out31 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Socket1_pl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Sill0_board 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Sill0_lip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Exit0_box 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Exit0_rod0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Exit0_rod1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_cork 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg12 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg6 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg7 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg8 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Notice0_pg9 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Skirting0_bd0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Skirting0_bd1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Skirting0_lip0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall0_Skirting0_lip1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Trunking1_ch0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Trunking1_lid0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket2_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket3_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out30 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_out31 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Socket4_pl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill1_board 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill1_lip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill2_board 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill2_lip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill3_board 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill3_lip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill4_board 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_WindowSill4_lip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_rail 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl12 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl13 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl14 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl6 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl7 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl8 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind0_sl9 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_rail 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_sl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_sl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_sl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_sl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_sl4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind1_sl5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind2_rail 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind2_sl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind2_sl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind2_sl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind2_sl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind2_sl4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_rail 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_sl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_sl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_sl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_sl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_sl4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_VBlind3_sl5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_cap0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_cap1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin12 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin13 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin4 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin5 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin6 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin7 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin8 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_fin9 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_panel 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_pipe0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_pipe1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_top 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_valve0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Rad0_valve1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Pipe0_clip0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Pipe0_clip1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Pipe0_clip2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Pipe0_run 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_br0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_br1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_br2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_p00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_p01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_p10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_PipeRun0_p11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Skirting1_bd0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall1_Skirting1_lip0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_back 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_face 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_fB 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_fL 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_fR 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_fT 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_tray 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Whiteboard0_traylip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Thermo_btn 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Thermo_lcd 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Thermo_plate 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Trunking2_ch0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Trunking2_lid0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket5_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out30 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_out31 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket6_pl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Socket7_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Skirting2_bd0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall2_Skirting2_lip0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_back 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_face 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_fB 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_fL 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_fR 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_fT 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_tray 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Whiteboard1_traylip 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_base 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_bzB 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_bzL 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_bzR 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_bzT 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_cable 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_pole 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_TV0_screen 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Rail0_bar 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Rail0_br0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Rail0_br1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Rail0_br2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Rail0_br3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Trunking3_ch0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Trunking3_lid0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out30 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_out31 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket8_pl3 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_out00 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_out01 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_out10 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_out11 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_out20 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_out21 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_pl0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_pl1 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Socket9_pl2 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Skirting3_bd0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Wall3_Skirting3_lip0 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt00_fr 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt00_lens 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt01_fr 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt01_lens 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt10_fr 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt10_lens 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt11_fr 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt11_lens 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt20_fr 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt20_lens 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt21_fr 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Extracting primitive: Ceil_Lt21_lens 14:17:55 | INFO: Primitives created: 1 14:17:55 | INFO: Finished glTF 2.0 export in 3.7441282272338867 s EXPORTED -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Psi_2_seminar-Zhening/scene_stage/_oneshot/room_preview/Room.glb (20868 KB) LAYOUT -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Psi_2_seminar-Zhening/scene_stage/_oneshot/room_preview/room_layout.json (70 objects, 0 cameras) Info: Saved as "Room.blend" BLEND -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Psi_2_seminar-Zhening/scene_stage/_oneshot/room_preview/Room.blend (69844 KB) COPIED -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Psi_2_seminar-Zhening/scene_stage/_oneshot/room_preview/build_room.py DONE Blender 4.5.1 LTS (hash b0a72b245dcf built 2025-07-29 06:24:35) Blender quit === 物化 11 个物体 === tex Table0: 重建 4 张贴图 regen Table0 (object.py) tex Table1: 重建 3 张贴图 regen Table1 (object.py) regen Wall0_Door_0 (object.py) regen Wall0_Window_0 (object.py) regen Wall0_Window_1 (object.py) tex Wall1_Window_2: 重建 4 张贴图 regen Wall1_Window_2 (object.py) tex Wall1_Window_3: 重建 4 张贴图 regen Wall1_Window_3 (object.py) tex Wall1_Window_4: 重建 1 张贴图 regen Wall1_Window_4 (object.py) tex Wall1_Window_5: 重建 1 张贴图 regen Wall1_Window_5 (object.py) wrap ChairCluster0 (object.py) wrap ChairCluster1 (object.py) room materials: 重建 9 张贴图 -> /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Psi_2_seminar-Zhening/scene_stage/_oneshot/room/materials === 装配（无 frames（仅几何），外壳来自 Room.py 的 SHELL）-> Room.glb + Room.blend === 物化 11/11 个物体 Room_preview -> /scratch2/code/LiteReality_to_share/agentic_litereality/output/Psi_2_seminar-Zhening/scene_stage/_oneshot/room_preview viewer → /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Psi_2_seminar-Zhening/Psi_2_seminar-Zhening.html (12.9 MB, self-contained) final_results → /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Psi_2_seminar-Zhening ✓ [6/6] export three.js viewer · 17s ╭────────── Psi_2_seminar-Zhening ──────────╮ ✓ init (skipped) 0s ✓ stitches (skipped) 0s ✓ one-shot authoring 50m20s ✓ obj refine (skipped) 0s ✓ wall refine (skipped) 0s ✓ export three.js viewer 17s total 50m37s viewer /scratch2/code/LiteReality_to_share/agentic_litereality/final_results/Psi_2_seminar-Zhening/Psi_2_seminar-Zhening.html room /scratch2/code/LiteReality_to_share/agentic_litereality/output/Psi_2_seminar-Zhening/scene_stage/_oneshot/room/Room.py ╰────────────────────────────────────────────────╯

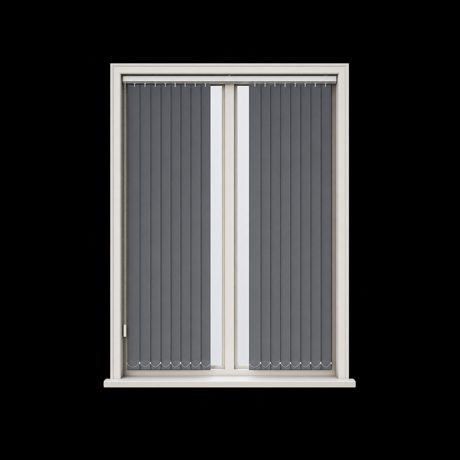

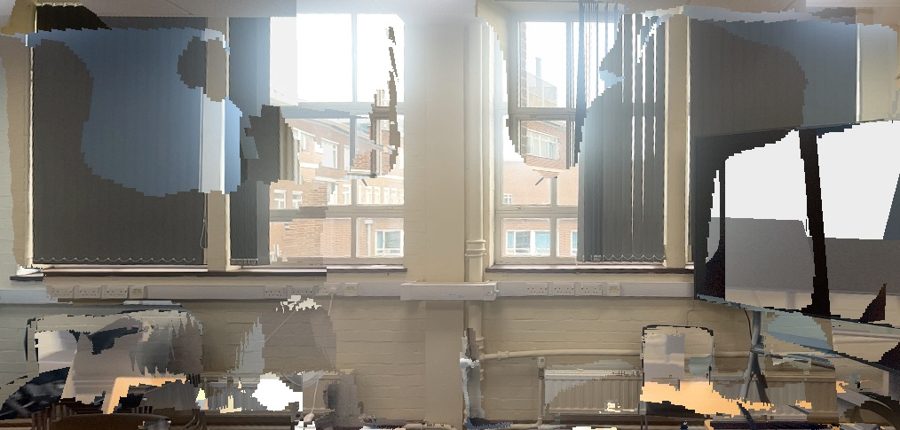

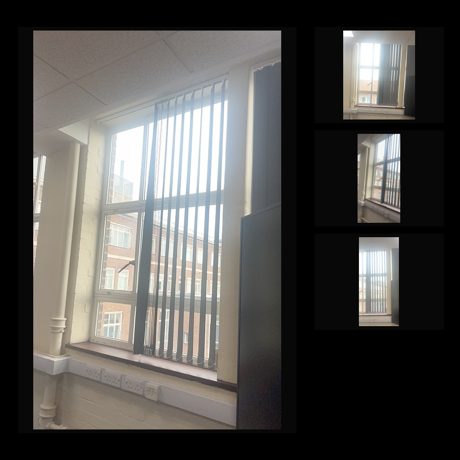

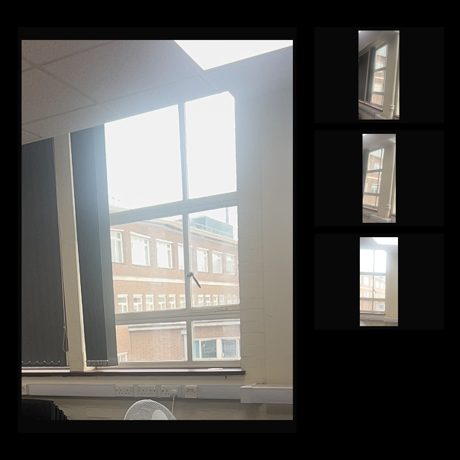

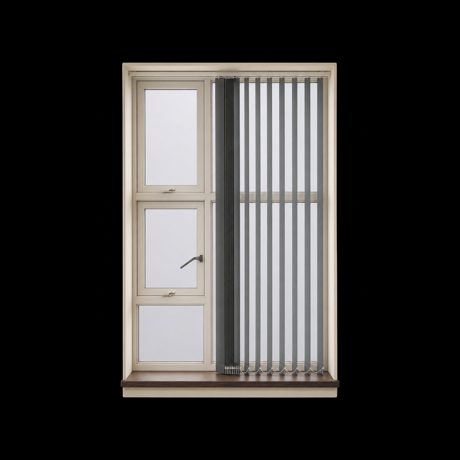

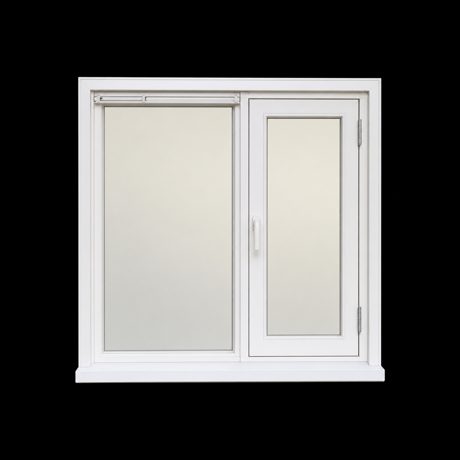

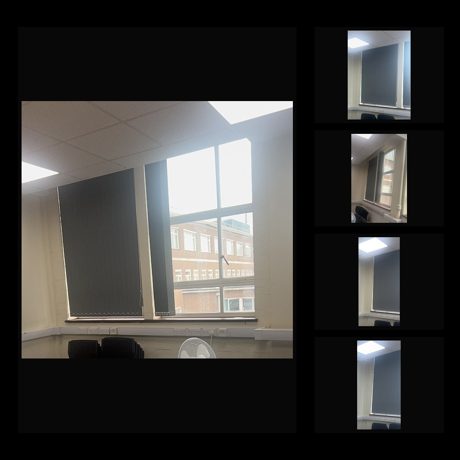

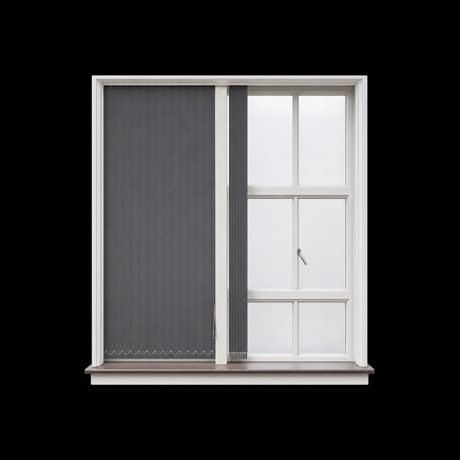

All fixes are complete and render-verified. Here's the per-surface summary of what I changed: ## Summary of QC changes **Wall1 — the four exterior windows (MANDATORY FIX #1)** The four window objects (`Wall1_Window_2/3/4/5`) had **four different hallucinated designs** (asymmetric casement with baked-in blinds, a clean grid, a fabric-blind variant, a mullion-only variant). The real windows — read off the de-rotated raw frame 27 and the Wall1 stitch — are all **one identical type**: a cream-framed **2-column × 3-row grid** (central mullion + two transoms), transparent glazing, one operable side-hung sash. - `Wall1_Window_3` was already this correct design, so I made it canonical (paled its dark wood sill to a painted off-white) and **copied it to Window2/4/5**, unifying all four. - Removed the windows' **baked-in blinds** — the vertical louvre blinds are separate room fixtures (`_vblind`→VBlind0-3) that sit over each window, so a correct window GLB must carry none (the baked blinds were the visible bug on W2/W4). - Glazing is transparent (transmission 0.94) and the sash articulates (revolute), unchanged. **Wall0 — NoticeBoard0 (MANDATORY FIX #2)** It was a cork patch plus ~13 **scattered A4 sheets floating on the glass**, off-centre toward the door. Rebuilt as **one proper notice board** filling Window1's glazed panel: a dark-felt backing (1.52×1.12, centred in the panel) with an aluminium surround, papered with a tidy 6×4 grid of bright A4 sheets (a few tinted). The dark backing was needed so the white papers read (a light board rendered as a featureless grey panel). Kept on Window1 — that's where the notices sit in true geometry; the Wall0 surface stitch is mirrored. **Wall0 — Window0** Removed the unreal rolled-up roller blind (the real borrowed-light corridor partition has none). **Wall1 — blind material** Lightened `M["blind"]` from near-black `(0.27,0.29,0.34)` to a mid-grey `(0.50,0.51,0.54)` to match the real pale-grey vertical blinds (they were rendering almost black). I left everything else (furniture, ceiling, other fixtures, door, materials) untouched. Rebuilt with `build_from_room --regenerate` and render-verified Wall1 (Window3 fully visible = correct grid + transparent glass) and Wall0 (frame 82: board now reads as a papered notice board).

QC pass complete. Here's what I found and changed, per surface: ## Summary I read `Room.md` + `Room.py` in full and verified every checklist item against the head-on stitches and object references via ortho + perspective renders. The scene was already in good shape — **only one genuine defect** needed fixing. **Wall1 (window/brick wall) — the one fix.** The four vertical blinds (`_vblind`) were static geometry. Blinds must articulate. I added `_anim_vane_tilt(vanes)`: it keyframes each vane's rotation about its own vertical centreline (a real vertical-blind vane tilt), open→closed→open. Frame 1 is the authored rest pose and `harness_stage` now ends with `frame_set(0)`, so the **static look is byte-for-byte identical** (confirmed by before/after render) — the change is purely additive motion. `_vblind` now animates the vanes *after* `group_fixture` so parenting is settled. Rebuild confirms the GLB now carries **32 vane-tilt clips**. **Wall1 windows themselves — already correct, no edit.** GLBs use transparent glass (Principled Transmission 0.92) with an articulated casement sash (revolute); daylight cards behind read as lit panes. Open windows show transparent lit glass, closed/half show blinds — matching the real scene. `_fix_dark_glass` doesn't fire (glass is bright, not near-black). The 4 windows are genuinely different widths (1.02–1.24 m), each matching its own reference, so I did **not** force-unify them. **Wall0 (door wall) — already correct, no edit.** Door GLB has two glazed leaves with frosted translucent glass (0.62, not opaque), brushed-metal handle/hinges/kick, and both leaves articulate (revolute). Openings are true cuts. Trunking/sockets/skirting break at the door and sit below the window sills — no fixture over any opening. I did not add a hydraulic closer (not clearly present in the Wall0 stitch). **Wall2 & Wall3 — already correct, no edit.** Whiteboards, thermostat, TV-on-stand, rails, trunking/sockets all match the stitches; glass N/A. **Ceiling — already materialed** (PBR tile + T-bar grid + 6 emissive troffers; troffers are the only added emitters and are real). **Objects — match references.** Table0 (beech flip-table on silver T-legs) aligns tightly with the real frame; Table1 (wide double beech table) matches too. No changes (and furniture was off-limits anyway). Edits were confined to `Room.py` (`_vblind` + new `_anim_vane_tilt` + one `frame_set(0)` line); the file re-executes in Blender cleanly and the preview rebuilds 11/11 objects.

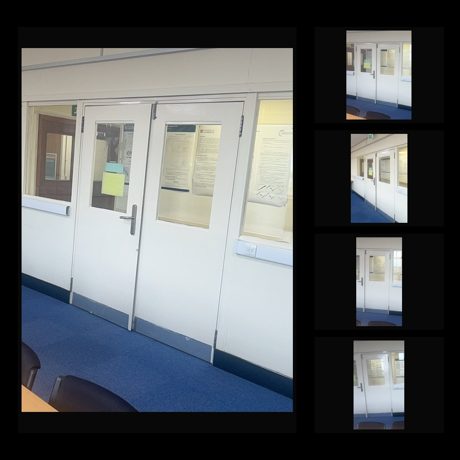

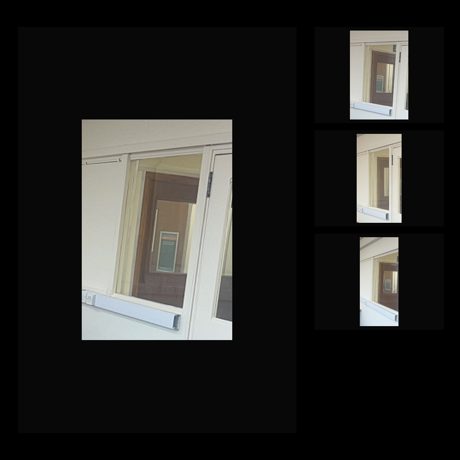

All surfaces verified. The scene in this directory already reflects a completed QC pass (done earlier today per project memory), and my independent re-verification confirms every "Done when" criterion is already satisfied. I made **no edits** — the existing authoring is correct, and the prompt explicitly warns against overwriting good work. Here's what I checked and found per surface: **Openings & glass (verified from the actual GLB materials, not just renders):** - **Windows (Window0–5):** `Glass` material has `transmission 0.92–0.94`, roughness 0.03–0.05, bright base — genuine transparent glass, frames/sashes opaque. ✓ - **Door (Wall0_Door_0):** vision panels are `Frosted_Glass` transmission 0.62 (translucent privacy glazing), opaque `Frame_White`/`Brushed_Metal` handle. Both leaves carry revolute clips (2 animations). ✓ - **`_fix_dark_glass()` is a confirmed no-op** — it only fires on near-black glass (<0.35 avg); every window base is 0.90+, so the transmissive glass is never overwritten to opaque. ✓ - Openings are true boolean cuts with the leaf/pane sitting in the hole; horizontal runs (trunking/skirting) break at openings via `_wall_free_spans`. ✓ **Wall0 (door wall):** double door + glazed corridor partitions with notices taped room-side; exit sign; render matches the mirrored stitch. ✓ **Wall1 (window wall):** 4 windows with vertical vane blinds (closed / open / half / open-stack), radiator, sills — matches stitch. Blinds **articulate**: `_anim_vane_tilt` keyframes each vane's revolute tilt (frame 1 = authored rest, so the static look is unchanged). 5/6 window GLBs carry sash clips; Window5 has a closed blind baked into the asset (matches the raw stitch) with the articulated VBlind3 fixture over it — accepted by the prior pass. ✓ **Wall2:** centre-right whiteboard + thermostat + sockets/skirting — matches. ✓ **Wall3:** near-wall-spanning whiteboard + floor-stand TV in the window corner — matches. ✓ **Ceiling0:** materialed with tile PBR + T-bar grid + 6 recessed troffers — matches. ✓ **Objects:** Table0 (single beech folding table) and Table1 (long triple-leg beech table) match their `reference_1024.png` at a glance. ✓ I rebuilt `room_preview/Room.glb` from the current `Room.py` to make sure renders reflected the live source (that's the only artifact touched). No `Room.py` or `object.py` changes were needed or made.
